Industrial Connector Housing
Quick Start Guide
(ICH-02P/ICH-06P)
P/N 003-1069-AEN
Issue 1
• Visit www.corning.com/opcomm/safety for full safety precautions
CAUTION:
Recommend the use of safety glasses
(spectacles) conforming to ANSI Z87, for eye
protection from accidental injury when handling
chemicals, cables, or working with fiber. Pieces of
glass fiber are very sharp and have the potential to
damage the eye.
WARNING:
Never look directly into the end of a fiber that may be carrying laser light. Laser light can be invisible
and can damage your eyes. Viewing it directly does not cause pain. The iris of the eye will not close involuntarily
as when viewing a bright light. Consequently, serious damage to the retina of the eye is possible. Should
accidental eye exposure to laser light be suspected, arrange for an eye examination immediately.

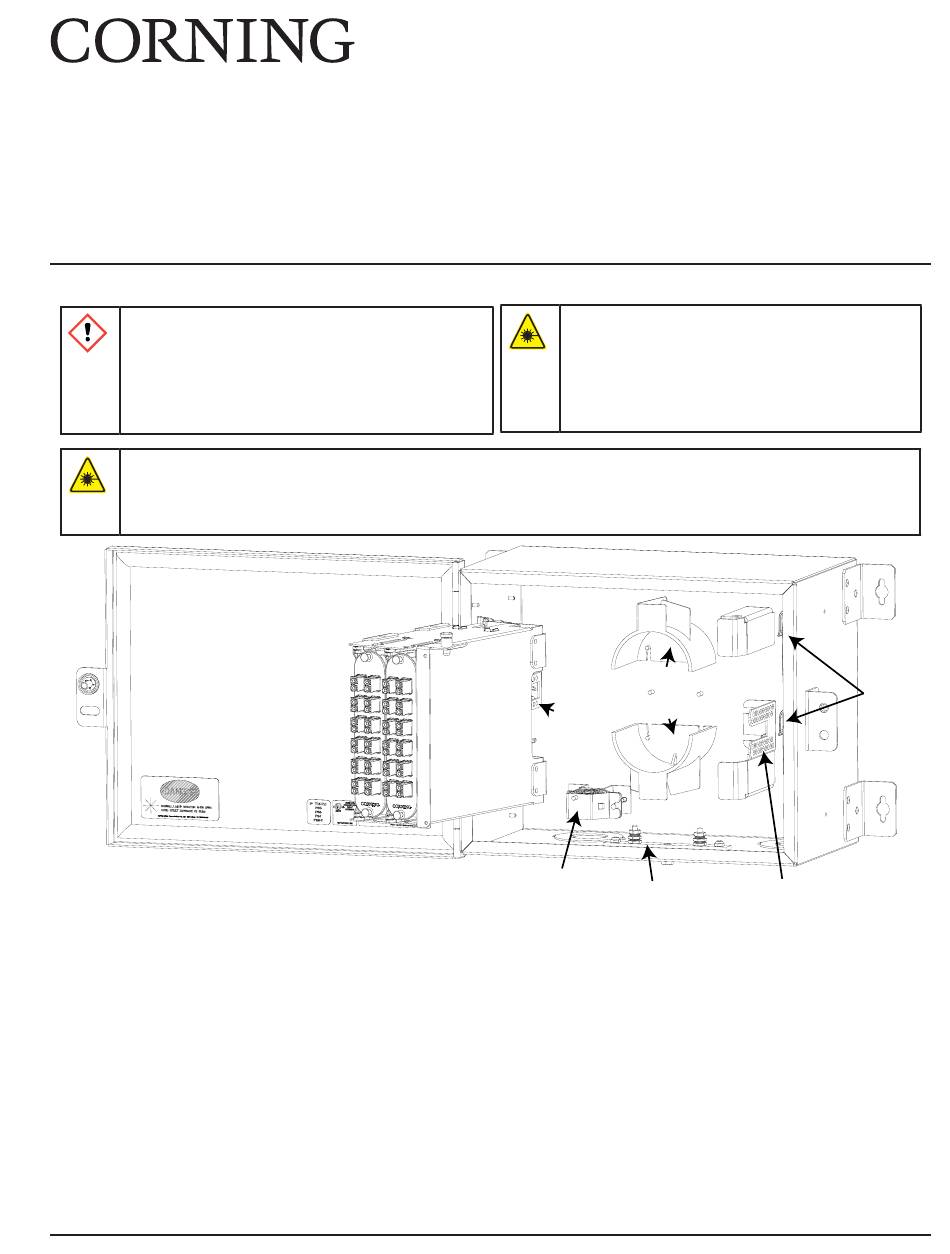

External door
TPA-6574
1.
Carton Contents
• Industrial connector housing
• Hardware Kit containing:
• (1) Label, 2 x 12 position
• (2) 6-32 locknuts
• (18) Cable ties
• (1) Universal cable clamp (UCC) kit
• (1) UCC bracket
• (1) Strength member strain-relief kit
02P Housing shown
WARNING:
presence of laser radiation. Diffused laser light
can cause eye damage if focused with optical
instruments. Should accidental eye exposure
to laser light be suspected, arrange for an eye
examination immediately.
Radius control
Fan-out
Splice
body
cassette
bracket
holder
Sheath
retention
location
Standard Recommended Procedure 003-1069-AEN | Issue 1 | July 2019 | Page 1 of 6
DO NOT use magnifiers in the
guides
Fan-out
Ground
body
bar
bracket
Slack
storage
clips
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CORNING ICH-02P
Summary of Contents for CORNING ICH-02P
- Page 1 Industrial Connector Housing Quick Start Guide (ICH-02P/ICH-06P) P/N 003-1069-AEN Issue 1 • Visit www.corning.com/opcomm/safety for full safety precautions WARNING: CAUTION: DO NOT use magnifiers in the Recommend the use of safety glasses presence of laser radiation. Diffused laser light (spectacles) conforming to ANSI Z87, for eye...
- Page 2 Tools Required • Phillips-head screwdriver • Scissors • 216B tool (can wrench) • Pencil, pen or marker Additional Materials (Purchased Separately) May or may not be required depending on your application. • Grounding kit (HDWR-GRND-KIT) • Inner door lock kit (HDWR-LOCK-KIT) •...
- Page 3 Cable Preparation Aramid Yarn (if present) Strength Member 8 in (20 cm) 4 in (6 cm) Loose Tube Cable Access 89 in of cable leaving 4 in of strength member Buffer Tube KPA-0178 and 8 in of yarn, if present. 89 in (226 cm) NOTE: Do not expose the bare fiber until ready for termination.
- Page 4 Grounding armored cable Ground Wire Ground Step 1: Use (1) HDWR-GRND-KIT per armored cable. Follow Stud instructions provided with kit to properly ground the cable. Step 2: Run ground wire from clamp on cable to ground stud. Feeder Cable Routing KPA-2179 CAUTION: Fiber optic cable is sensitive to excessive pulling, bending, and crushing forces.
- Page 5 Drop Cable Routing Drop Cable sheath retention strain-relief using cable ties Step 1: If strain-relief using sheath retention alone is sufficient, cut strength member(s) flush with the outer jacket. Step 2: Use two cable ties to secure cable to the strain-relief bracket. TPA-6577 Drop Cable strength member strain-relief If strain-relief using the strength member is required:...
- Page 6 800-743-2675 • FAX: 828-325-5060 • International: +1-828-901-5000 • www.corning.com/opcomm Corning Optical Communications reserves the right to improve, enhance, and modify the features and specifications of Corning Optical Communications products without prior notification. A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners.
