Johnny's Selected Seeds Quick Hoops 7300 Instruction Manual

Gothic high tunnel bender
Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual for 7300
Quick Hoops™ Gothic High Tunnel Bender
Copyright © 2014 Johnny's Selected Seeds. All rights reserved.
955 Benton Ave., Winslow, ME 04901  Phone: 1-877-564-6697  Fax: 1-800-738-6314
Email: service@johnnyseeds.com  Web Site: Johnnyseeds.com

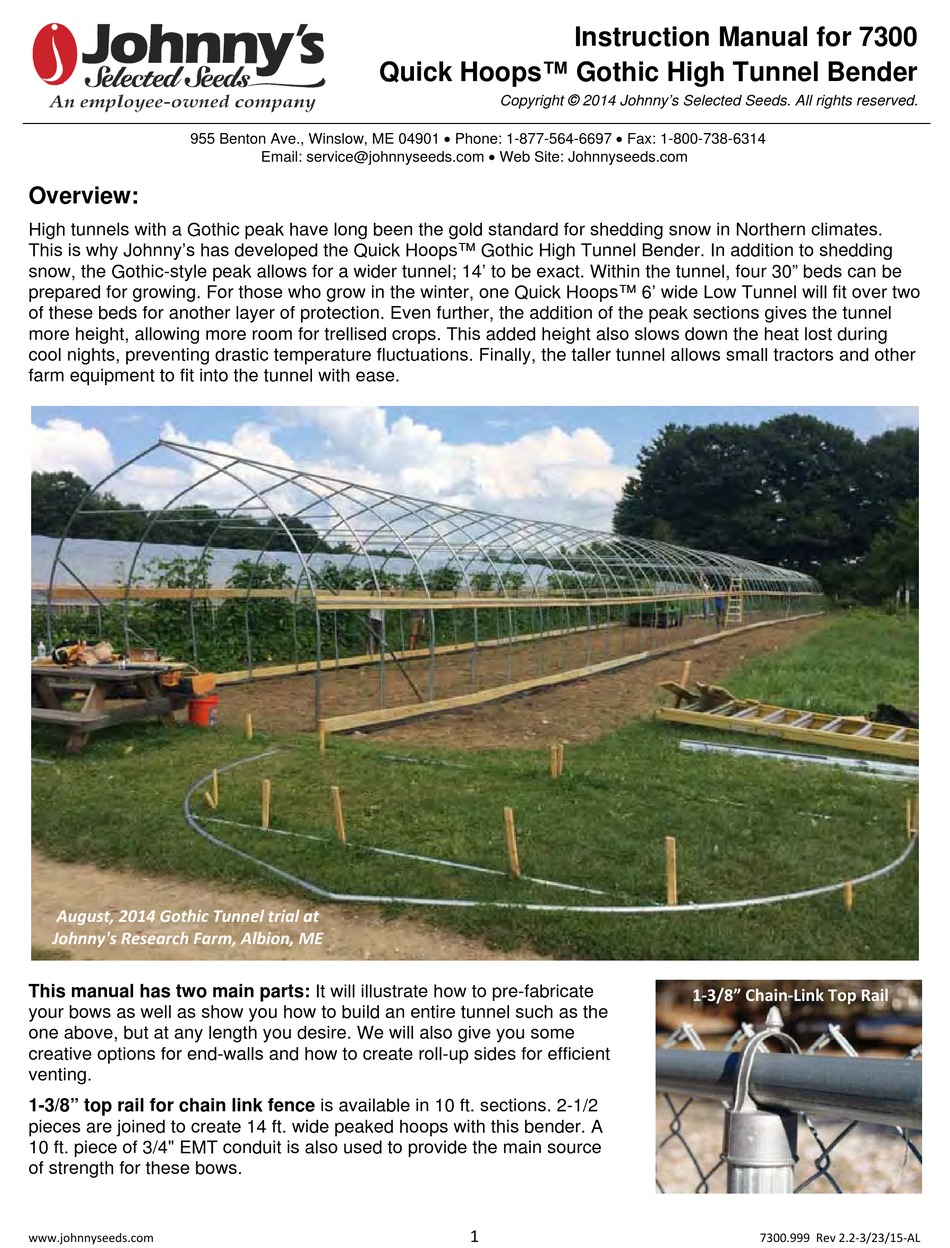

Overview:
High tunnels with a Gothic peak have long been the gold standard for shedding snow in Northern climates.
This is why Johnny's has developed the Quick Hoops™ Gothic High Tunnel Bender. In addition to shedding
snow, the Gothic-style peak allows for a wider tunnel; 14' to be exact. Within the tunnel, four 30" beds can be
prepared for growing. For those who grow in the winter, one Quick Hoops™ 6' wide Low Tunnel will fit over two
of these beds for another layer of protection. Even further, the addition of the peak sections gives the tunnel
more height, allowing more room for trellised crops. This added height also slows down the heat lost during
cool nights, preventing drastic temperature fluctuations. Finally, the taller tunnel allows small tractors and other
farm equipment to fit into the tunnel with ease.
August, 2014 Gothic Tunnel trial at
Johnny's Research Farm, Albion, ME
This manual has two main parts: It will illustrate how to pre-fabricate
1‐3/8" Chain‐Link Top Rail
your bows as well as show you how to build an entire tunnel such as the
one above, but at any length you desire. We will also give you some
creative options for end-walls and how to create roll-up sides for efficient
venting.
1-3/8" top rail for chain link fence is available in 10 ft. sections. 2-1/2
pieces are joined to create 14 ft. wide peaked hoops with this bender. A
10 ft. piece of 3/4" EMT conduit is also used to provide the main source
of strength for these bows.
1
www.johnnyseeds.com
7300.999  Rev 2.2‐3/23/15‐AL
