Johnny's Selected Seeds Quick Hoops 7617 Instruction Manual

Elliptical high tunnel bender
Hide thumbs

Advertisement

Quick Links

Download this manual
955 Benton Ave., Winslow, ME 04901 • Phone: 1-877-564-6697 • Fax: 1-800-738-6314
Overview:
This bender allows you to make spacious 24' wide tunnels at any desired length using 3 pieces of 1 3/8"
diameter chain-link fence top rail bent into long-radius hoops and connected to form 24' wide bows, then
placed atop high ground posts created with 1 5/8" diameter 8' chain link line posts. These structures are
designed for use only in areas with little or no snow load, or alternately as three-season structures in any
location by removing the main sheet of greenhouse film before snowfall occurs.

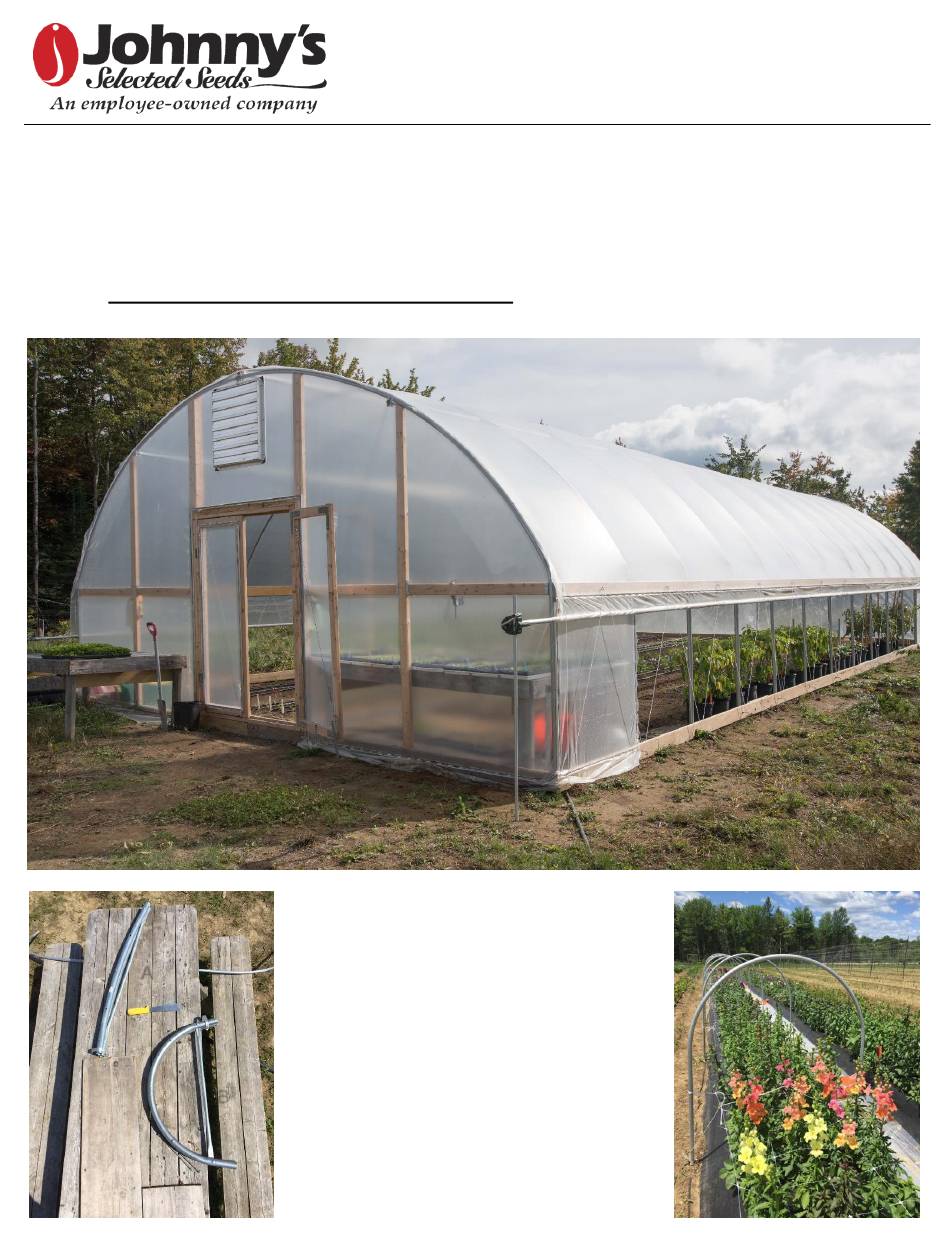

September 2016 - Elliptical Tunnel trial
at Johnny's Research Farm, Albion, ME
A
www.johnnyseeds.com
Quick Hoops™ Elliptical High Tunnel Bender
Email: service@johnnyseeds.com • Web Site: Johnnyseeds.com
Contents
This bender set includes two separate
jigs. One for the long radius across the
top of the hoops (A), and one for where
the hoops meet the ground posts (B).
This second jig is actually our 3' wide
Quick Hoops Low Tunnel Bender, which
can be used to make 3' wide by 4.5' tall
B
low tunnel hoops out of ½" EMT like the
ones shown to the right.
The set also includes required mounting
hardware for both jigs and a lever bar for
the long radius bender.
Instruction Manual for 7617
Copyright © 2021Johnny's Selected Seeds. All rights reserved.
1
7617.999 | Rev 06/21/2021 | AL, JG, ms
