Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
CODE
QTY
1
8
M8 x 20mm Bolts
2
8
M6 x 25mm Bolts
3
20
M6 x 35mm Bolts
4
6
M6 x 50mm Bolts
5
2
M6 x 110mm Bolts
6
2
Wood Dowels
7
30
M6 x 13mm Spring Washers
8
30
M6 x 19mm Flat Washers
9
8
M4 x 32mm Screws
10
1
M5 x 65mm Allen Wrench
11
1
M4 x 100mm Allen Wrench
Unload hardware and components
from behind of headboard.
CARE & MAINTENANCE: The touch of a so cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may

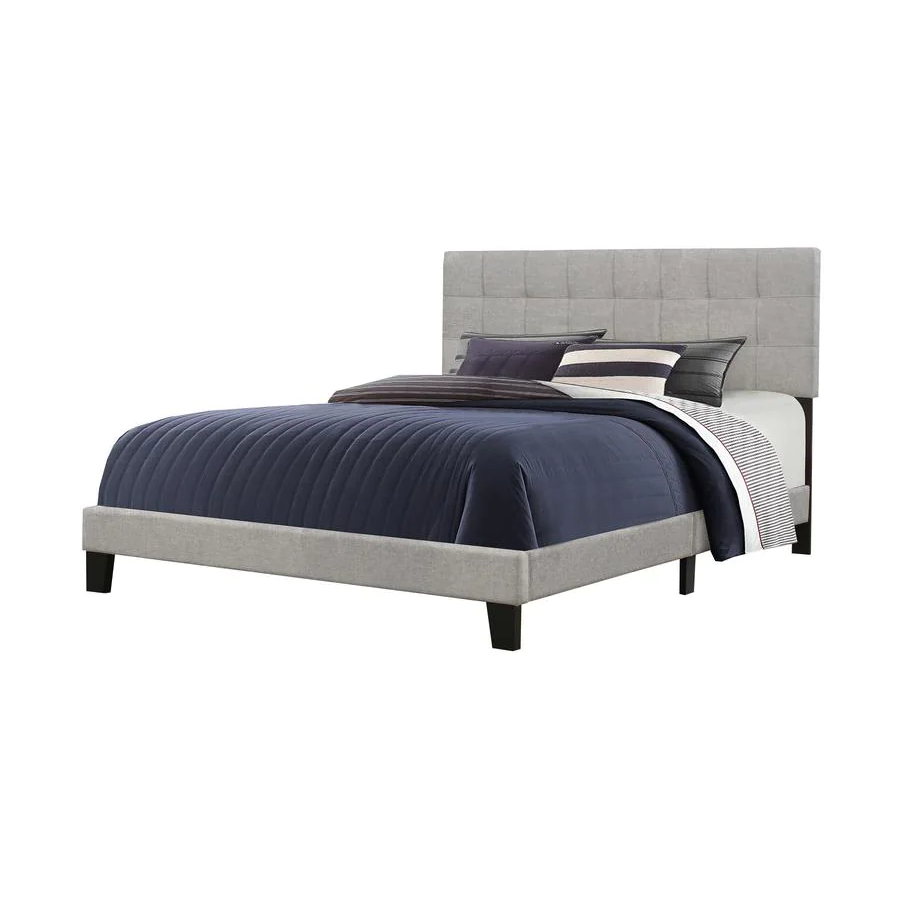

Delaney Upholstery Bed In A Box
Model # 2009-460/461/462 Full Size
Model # 2009-500/501/502 Queen Size
HARDWARE
A
Adult assembly is required. The product of Hillsdale Furniture,
CODE
QTY
COMPONENTS
A
1
Headboard
C
1
Footboard
E
2
G
4
Side Rail Cleats
I
4
Slats
STEP 1 - Figure 1
Leg (B) to Headboard (A) using 3 Allen Bolts (4), 3
Spring Washers (7) and 3 Flat Washers (8) per leg.
Tighten bolts with Allen Wrench (11) provided.
A
B
FIGURE 1
Date: 08-02-2016
CODE
QTY
COMPONENTS
B
2
Headboard Legs
D
2
Footboard Legs
F
2
Right Side Rails
H
2
Side Rail Support Legs
J
4
Support Legs with
Adjustable Feet
B
4
4
4
7
7
7
8
8
8
B
A
Page 1 of 3
