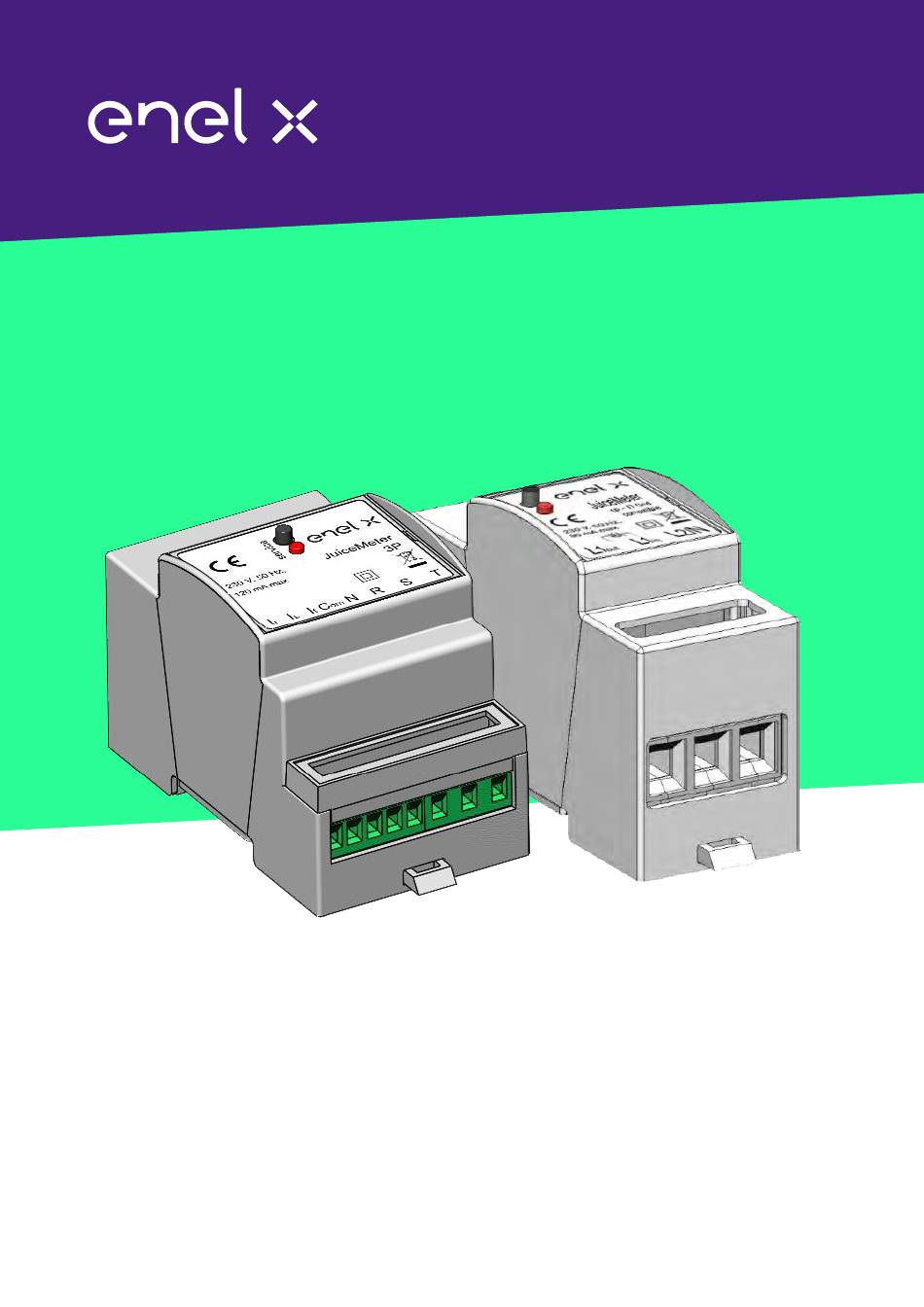

  • Page 1 JuiceMeter Installation Manual...

  • Page 2: Table Of Contents

    In this document 1 JuiceMeter 1.1 Electric and electronic equipment end of life user’s information 2 Single-phase JuiceMeter 2.1 Features 2.2 Installation 2.3 JuiceBox connection diagrams 3 Three-phase JuiceMeter 3.1 Features 3.2 Installation 3.3 JuiceBox connection diagrams...

  • Page 3: Juicemeter

    JuiceMeter is an energy meter that communicates with your JuiceBox to enable the Load Optimization Pro feature. After pairing the two devices, JuiceMeter allows your JuiceBox to adapt its power level based on the consumption of other devices connected to the same power line. In this way, you can recharge at the maximum available power while avoiding the risk of triggering the meter.

  • Page 4: Single-Phase Juicemeter

    Dimensions (W x H x D): 36.3 x 90.5 x 62 mm (excluding DIN rail spring) > No. of DIN modules: 2 > Weight: 120 g > Degree of protection: IP20 (when the JuiceMeter is installed in an electrical cabinet with > terminals covered by panels) > Plastic housing material: PC/ABS >...
  • Page 5 > Insulation class: II > DIRECTIVE RED 2014/53/UE CE Marking Product distributed by ENEL X, 00191 Roma, Viale Tor di Quinto 45/47 POWER SUPPLY Connection: > > STANDARD VERSION: The device is powered between terminals "Lin" and "N", which are also used for voltage measurement.

  • Page 6: Installation

    Health: EN 62311 > 2.2 Installation Install the JuiceMeter downstream of the distributor's meter and the main circuit breaker to enable measurement of total consumption (see diagram below). The protection and disconnection device of the JuiceMeter will be the general MCB.
  • Page 7 > Leave at least 30mm of space above and below the JuiceMeter, and at least 10mm of space to the right and left of the product in relation to adjacent DIN modules, to ensure proper heat dissipation.
  • Page 8 4. Wiring: > Use only flexible copper wires with the following cross sections for wiring the JuiceMeter: MAXIMUM PEAK FROM 16A FROM 25A FROM 32A UP TO 16A CURRENT (A) TO 25 A TO 32A TO 46A Minimum wire cross-section (mm...
  • Page 9 Check that there is an MCB switch in the main switchboard that is suitable for the protection/disconnection of the JuiceMeter (In max 40 A). If this is not the case, it must be replaced. The MCB must be marked as JuiceMeter disconnecting device.
  • Page 10 Check that there is an MCB switch in the main switchboard that is suitable for the protection/disconnection of the JuiceMeter (In max 40 A). If this is not the case, it must be replaced. The MCB must be marked as JuiceMeter disconnecting device.

  • Page 11: Juicebox Connection Diagrams

    > BLINKING RED SERVICE LED (Slow blink): Measurement Unit fault. > SERVICE BUTTON: Reset button for the device (press for at least three seconds to restart the device without performing an on-off cycle). 2.3 JuiceBox connection diagrams STANDARD VERSION NOTE: PLC - CHAIN2 (*) communication takes place on connections L and N.
  • Page 12 IT GRID COMPATIBILE VERSION...

  • Page 13: Three-Phase Juicemeter

    > No. of DIN modules: 3 > Weight: 150 g > Degree of protection: IP20 (when the JuiceMeter is installed in an electrical cabinet with terminals covered by panels) > Plastic housing material: PC/ABS > Flammability rating of housing: UL94 V-0 OPERATING CONDITIONS >...
  • Page 14 Pollution degree: 2 > Insulation class: II DIRECTIVE RED 2014/53/UE CE Marking Product distributed by ENEL X, 00191 Roma, Viale Tor di Quinto 45/47 POWER SUPPLY > Connection: > STANDARD VERSION: The device is powered in single-phase between terminals "T"...

  • Page 15: Installation

    Health: EN 62311 3.2 Installation Install the JuiceMeter downstream of the distributor's meter and the main circuit breaker to enable measurement of total consumption (see diagram below). The protection and disconnection device of the JuiceMeter will be the general MCB.
  • Page 16 The product must be installed in a vertical position on a 35mm DIN rail, with the screw terminal facing downwards. > Leave at least 30mm of space above and below the JuiceMeter, to ensure proper heat dissipation. > It is not recommended to install the product close to heat sources. If necessary, maintain adequate distance between the JuiceMeter and such heat sources.
  • Page 17 5. Connections: STANDARD VERSION For R, S, T lines, the installer must make The current transformer has shunts from the power an opening with a diameter cables with a cross- of 10mm/0.39". section as specified in point 4. THREE-PHASE measurement method: with "split core" current transformers for measuring current, to be connected with the black wires in common on terminal "Com"...
  • Page 18 NOTE: If connected to a single-phase mains, contracted power up to 10kW. Connect the single- phase mains supply to terminals T and N of the JuiceMeter (refer to the relevant configurations section 3.3 of this manual). > Maximum Range for single phase (for short periods only): 60 A. Power up to 13.8 KW.
  • Page 19 > NOTE: If connected to a single-phase grid, contracted power up to 10kW. Connect the single-phase mains supply to terminals T and R of the JuiceMeter (refer to the relevant configurations in section 3.3 of this manual). Accuracy: class I (±1%) for active energy >...

  • Page 20: Juicebox Connection Diagrams

    3.3 JuiceBox connection diagrams STANDARD VERSION NOTE: PLC – CHAIN2 communication (*) takes place on connections T- L1 and N. THREE-PHASE JUICEMETER + JUICEBOX 1P (three-phase mains supply) THREE-PHASE JUICEMETER + JUICEBOX 3P (three-phase mains supply)
  • Page 21 (*) The chain2 protocol is customised with more measurement data than the standard one. IT GRID VERSION NOTE: PLC – CHAIN2 communication (*) takes place on connections T- L1 and R. THREE-PHASE IT GRID JUICEMETER + JUICEBOX 1P (three-phase mains supply)
  • Page 22 THREE-PHASE IT GRID JUICEMETER + JUICEBOX 1P (single-phase mains supply) (*) The chain2 protocol is customised with more measurement data than the standard one.
