Thank you for purchasing RHINO ESC series.
CAUTION
The power of brushless power system is powerful. Any improper use may cause
personal injury and damage to the product and related devices. We strongly
recommend reading through this user manual before use and strictly abide by the
specified operating procedures. We shall not be liable for any liability arising from the
use of this product, including but not limited to reimbursement for incidental or
indirect losses.
Meanwhile, we do not assume any responsibility caused by unauthorized modification
of the product. We have the right to change the product design, appearance,
performance and use requirements
without notice.

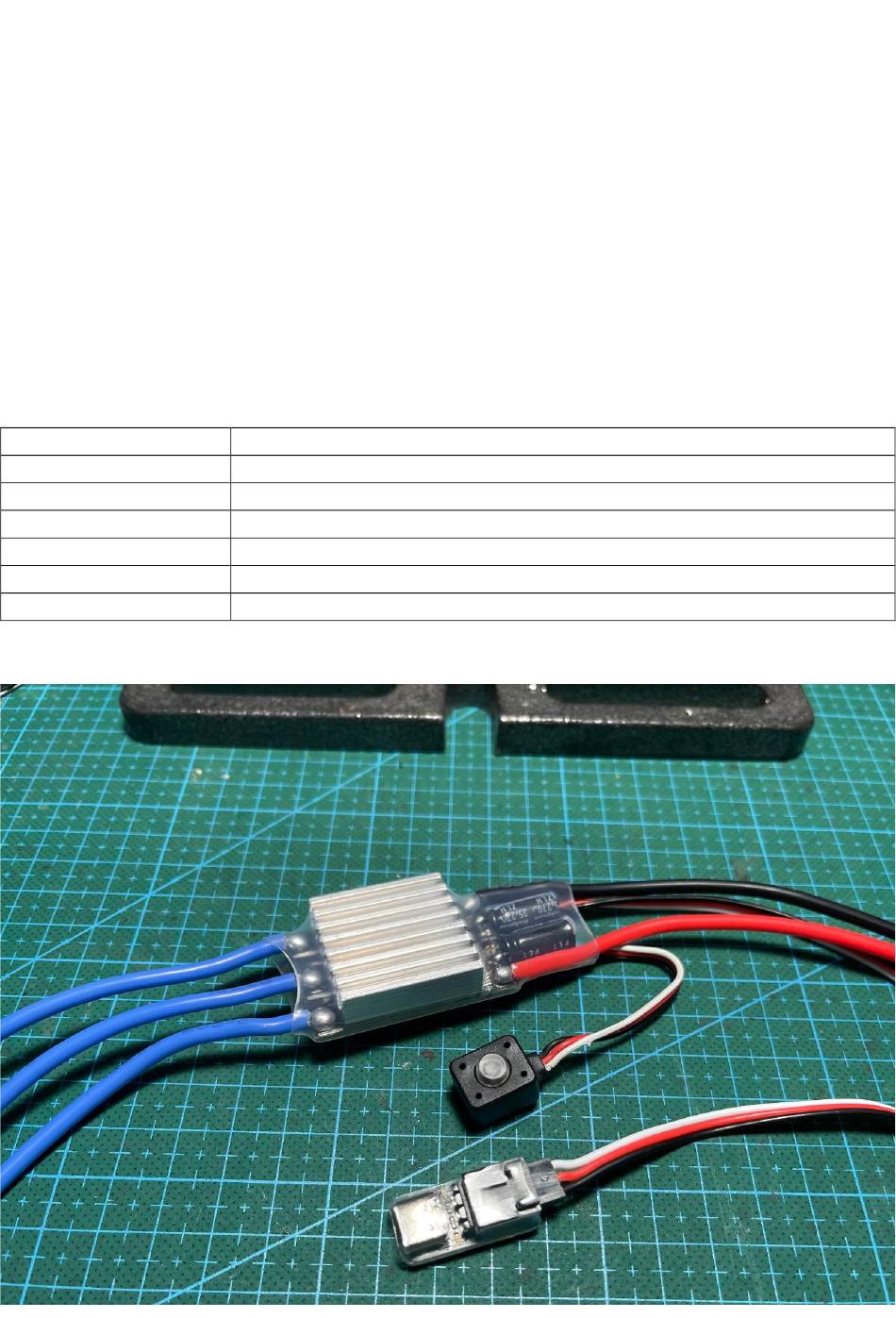

SPECIFICATION
Part Number
Motor Type
Li-po Cells
Cont. Current
Dimension/Weight
Power switch
A3100
Senseless brushless motor
2~8S
80A
5.2/6.0V/7.4V/8.2V adjustable
43x28mm(PCB)
Electronic switch
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RHINO ESC Series
Summary of Contents for RHINO ESC Series
- Page 1 Thank you for purchasing RHINO ESC series. CAUTION The power of brushless power system is powerful. Any improper use may cause personal injury and damage to the product and related devices. We strongly recommend reading through this user manual before use and strictly abide by the specified operating procedures.
- Page 2 CONNECTION 1 Motor wiring a. Connect senseless brushless motor: A/B/C wires on the ESC used to connect to brushless motor, you can swap any two of wires to change motor direction. Alternatively, reverse motor direction in the AM32 Config Tool. b.
- Page 3 BEC Output BEC Output 5.2V 6.0V 7.4V 8.2V...
- Page 4 CALIBRATION Throttle Range Calibration: It can be deal with a transmitter or config tool. It is recommended to use a transmitter so that the ESC can accurately match the throttle channel travel. Entering calibration mode requires holding throttle of the transmitter at the max position before turning on the ESC power, and then follow the instructions below.
- Page 5 Other Function Configuration: Download the PC version from the link below for ESC config tool and USB-Link driver. https://rhinoesc.com/download/AM32ConfigTool_Driver.rar After installing the USB-Link driver, prepare a USB Type-C cable and connect the ESC and PC as follows. The battery must be connected first and turne on the ESC switch. Check the direct connection Select the correct COM port Click the connect button...
- Page 6 Settings Tag: At this point the tool should be able to read the parameters of the ESC Please adjust the required items according to your needs, such as Bi-directional, Brake On Stop, Sinusoidal Startup, Motor KV, Startup Power and Brake level, etc. Don't forget to click the save settings button after completing the configuration.
- Page 7 Flash Tag: You can upgrade the firmware of the ESC here or restore the default parameters.
- Page 8 Input Tag: Servo Settings In general, it is only recommended to set the throttle range through the transmitter, so it is not recommended to modify it here. Low Voltage Cut Off is recommended to open. Useful for battery protection. Braking type, do not check this item for crawler.
