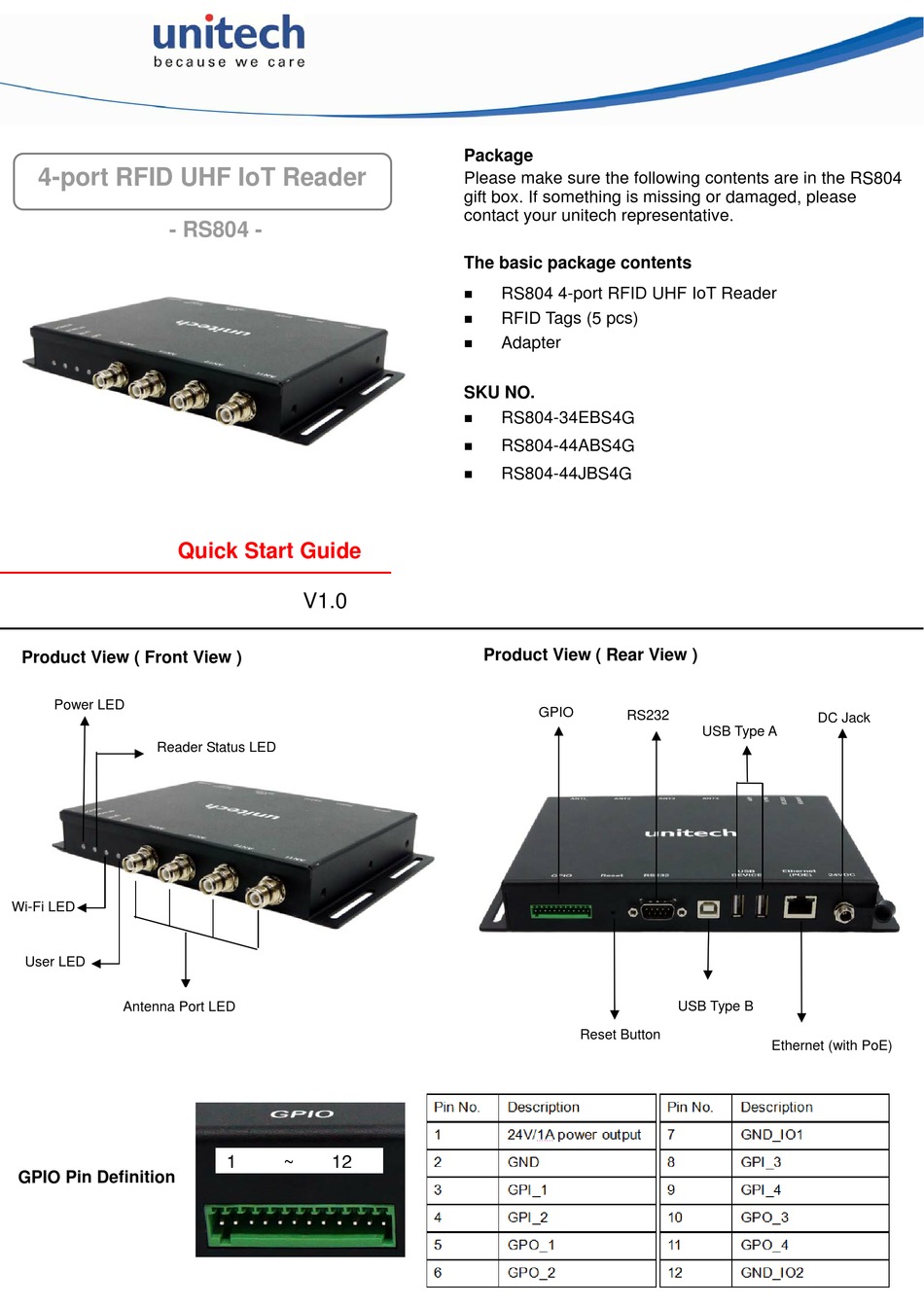

4-port RFID UHF IoT Reader
- RS804 -
Quick Start Guide
Product View ( Front View )
Power LED
Reader Status LED
Wi-Fi LED
User LED
Antenna Port LED
GPIO Pin Definition
V1.0
1
~
12
Package
Please make sure the following contents are in the RS804
gift box. If something is missing or damaged, please
contact your unitech representative.
The basic package contents
RS804 4-port RFID UHF IoT Reader
RFID Tags (5 pcs)
Adapter
SKU NO.
RS804-34EBS4G
RS804-44ABS4G
RS804-44JBS4G
Product View ( Rear View )
GPIO
RS232
Reset Button
DC Jack
USB Type A
USB Type B
Ethernet (with PoE)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Unitech RS804-34EBS4G
Summary of Contents for Unitech RS804-34EBS4G
- Page 1 4-port RFID UHF IoT Reader Please make sure the following contents are in the RS804 gift box. If something is missing or damaged, please contact your unitech representative. - RS804 - The basic package contents RS804 4-port RFID UHF IoT Reader ...
- Page 2 Getting Started When RS804 is connected to a power source, please check the LED status to make sure when to connect with the utility. Please noted that if the power is off and restarts it again, the LED process will start over from the beginning. When the power is on : Power LED : Green Solid On...
- Page 3 If the connector is damaged, please ensure the connector is being fully repaired before using the unit to avoid causing short circuited. http://www.ute.com/ Copyright 2020 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
