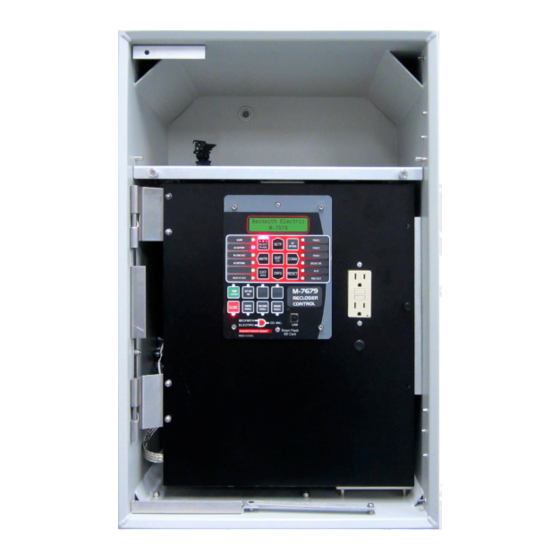

Recloser Control M‑7679
Automation/Communications
• Front panel USB and SD Card ports for
local programming and data transfer
• One or two optional serial ports (TIA-232,
TIA-485 or Serial Fiber)
• Optional single or dual Ethernet ports
(copper or fiber) with simultaneous
multi-user and multi-protocol support
• Protocols supported include:
• MODBUS, DNP3.0
• Optional: IEC61850
• Comprehensive Cyber Security tools
to implement NERC CIP requirements,
including IPsec and Radius server
security
• IEEE 1686 Compliant
®
IPScom
–
Uncomplicated Software for
Complex Power System Applications
• Integrated Metering, DFR and PQ
Visualization Tools
• Search and filtering tools for analysis of
SOE, DFR and PQ records
• IPSlogic Programmable Logic
Next generation Recloser
Control and Protection
System for Advanced
Distribution Grids
Protection and Control
• Over 30 Protection Elements for optimal protection
of Power Distribution Systems
• Compatible with Three-Phase Ganged (Std) and
Independent Phase Capable Reclosers (Optional)
• Four (std) or Six (optional) Low Energy Analog (LEA)
or VT voltage inputs
• Settings Wizard assists in creating file for most
common settings
• Recloser Status Monitoring tool displays real time
reclosing sequence and fault clearing time
• Comprehensive I/O Matrix provides visual
confirmation of enabled functions and selected
outputs improving security
Monitoring
• Power Quality Monitoring up to the 63
• PQ Viewer (ITIC Curve)
• Sags, Swell and Sub-Synchronous Transient
• Advanced Data Logging and Load Profile
• 3500 Event Sequence of Events (SOE) Recorder
• 100 DFR quality records of up to 480 cycles
Flexibility
Two ways to retrofit and upgrade your existing
recloser control:
• Beckwith's M-2400 series Adapter
• Beckwith's M-2979 Cabinet for
Industry Leader Since 1969
Made in the USA
Harmonic including THD and TDD
Detection
Recorder
with adjustable sampling rate up to 128 s/c
Chassis for a direct retrofit of some
of the most popular controls in
their existing cabinet
replacement of the complete
recloser control – plug
compatible with multiple
vendors
rd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-7679 and is the answer not in the manual?

Questions and answers

Related Manuals for BECKWITH ELECTRIC M-7679

Summary of Contents for BECKWITH ELECTRIC M-7679

  • Page 1 Recloser Control M‑7679 Next generation Recloser Control and Protection System for Advanced Distribution Grids Protection and Control • Over 30 Protection Elements for optimal protection of Power Distribution Systems • Compatible with Three-Phase Ganged (Std) and Independent Phase Capable Reclosers (Optional) •...
  • Page 2 Feature available at future date via firmware update Port 1 Front Port IRIG-B Port 2 Port 3 Port 4 TIA-232 Type B USB Ethernet Ethernet TIA-232 Fiber Optic Fiber Optic TIA-485 SD Card TIA-485 Serial Fiber Serial Fiber Copper Copper Figure 1 M-7679 Recloser Control –2–...

  • Page 3: Optional Features

    M‑7679 Recloser Control – Specification Standard Control Features • PORT 1: Rear TIA-232 or TIA-485 • Protocols Included: • Over 30 protection functions – MODBUS ® • Horizontal or Vertical Mounting – DNP3.0 SAv2 • 50 Hz or 60 Hz Frequency –...
  • Page 4 M‑7679 Recloser Control – Specification M‑7679 Mounting Options M-2400 Series Cdapter  hassis M-2979 Recloser  ontrol  abinet The M-2400 Series Adapter Chassis and M-7679 Recloser Control provide a direct replacement for the following recloser controls: • M-2410 replaces the SEL 351R-2 •...
  • Page 5 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS Device Setpoint Number Function Ranges Increment Accuracy † Sync Check Reference Phase A/B/C Undervoltage Permission Dead Line/Dead Bus Yes/No Dead Line/Live Bus Yes/No Live Line/Dead Bus Yes/No Live Line Minimum Voltage 0.0 to 200.0 V 0.1 V ±...
  • Page 6 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Negative Sequence Overcurrent (#1 to #5 Steps) Definite Uime Pickup 1 A CT 0.02 to 20.00 A 0.01 A ± 0.02 A or ± 3% 5 A CT 0.10 to 100.00 A 0.01 A...
  • Page 7 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Negative Sequence Overvoltage Pickup 0.00 to 300.00 V 0.01 V ± 0.2 V or ± 0.5% Definite Time 0.00 to 600.00 s 0.01 s ±...
  • Page 8 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Instantaneous/Definite Time Overcurrent (#1 to #5 Steps) Phase Tnstantaneous/Definite Uime Ivercurrent Pickup 1 A CT 0.02 to 20.00 A 0.01 A ± 0.02 A or ± 3% 5 A CT 0.10 to 100.00 A 0.01 A...
  • Page 9 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Inverse Time Overcurrent (#1 to #5 Steps) Phase Tnverse Uime Ivercurrent with Voltage  ontrol/Restraint Pickup 1 A CT 0.02 to 3.20 A 0.01 A ±...
  • Page 10 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Overvoltage Phase Ivervoltage (#1 to #4 Steps) Pickup 10.00 to 300.00 V 0.01 V ± 0.2 V or ± 0.5% Definite Time 0.00 to 600.00 s 0.01 s ±...
  • Page 11 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Directional Overcurrent (#1 to #5 Steps) Phase Directional Ivercurrent Operating Current Phase Current Phase Polarization Voltage Residual Directional Ivercurrent Operating Current Phase Polarization Voltage Ground Directional Ivercurrent Operating Current Phase Polarization Voltage...
  • Page 12 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Directional Instantaneous/Definite Time Overcurrent (Cont'd.) Inverse Time: Pickup 1 A CT/Gnd CT 0.02 to 3.20 A 0.01 A ± 0.02 A or ± 3% 5 A CT/Gnd CT 0.10 to 16.00 A 0.01 A...
  • Page 13 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Reclose Relay Uhree-Phase Ganged or Iptional Tndependent Phase IperationN: Ground Precedence Yes/No Sequence Coordination Active For Trips None/1/2/3 – – Maximum Number of Phase Trips 1/2/3/4/5 –...
  • Page 14 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Frequency (#1 to #4 Steps) Pickup 40.00 to 65.00 Hz 0.01 Hz ± 0.02 Hz Definite Time 0.00 to 600.00 s 0.01 s ± 0.01 s* or ± 1% Hysteresis 0.0 to 1.0 Hz 0.1 Hz...
  • Page 15 M‑7679 Recloser Control – Specification PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Trip/Close Circuit Monitoring Time Delay 0.01 to 600.00 s 0.01 s ± 0.01 s* or ± 1% U M Time Delay 0.01 to 600.00 s 0.01 s ±...
  • Page 16 M‑7679 Recloser Control – Specification OPTIONAL PROTECTIVE FUNCTIONS Device Setpoint Number Function Ranges Increment Accuracy † Sensitive Ground Instantaneous/Definite Time Overcurrent (#1 to #5 Steps) Sensitive Ground Pickup 10 mA Gnd CT 0.001 to 0.160 A 0.001 A (TBD) 50 mA Gnd CT 0.005 to 0.800 A 0.001 A 0.0015 A or ±...
  • Page 17 M‑7679 Recloser Control – Specification OPTIONAL PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Sensitive Ground Inverse Time Overcurrent (#1 to #5 Steps) Sensitive Ground Pickup 10 mA Gnd CT 0.001 to 0.160 A 0.001 A (TBD) 50 mA Gnd CT 0.005 to 0.800 A 0.001 A...
  • Page 18 M‑7679 Recloser Control – Specification OPTIONAL PROTECTIVE FUNCTIONS (cont.) Device Setpoint Number Function Ranges Increment Accuracy † Sensitive Ground Directional Overcurrent (#1 to #5 Steps) Phase Polarization Voltage – – Enabled Direction No-Direction/Directional – – Minimum Polarization Voltage (% of nominal voltage) 2.0 to 10.0 % 0.1% ±...

  • Page 19: Overcurrent Protection

    M‑7679 Recloser Control – Specification Introduction The M-7679 is a digital, Smart Grid ready, advanced recloser control and protection system that is compatible with most manufacturer’s switchgear and suitable for new installations or as a direct, easy-to-install, replacement for older recloser controls. It offers a comprehensive protection package with over 30 individual protection functions and up to eight setting groups for either Three-Phase Ganged or Independent Phase Capable reclosers.
  • Page 20 M‑7679 Recloser Control – Specification Reclosing Operation When there is any breaker open operation due to a fault, the relay will close the breaker automatically without user intervention. The Reclosing Operation is achieved using the 79 function in conjunction with overcurrent functions (i.e.
  • Page 21 M‑7679 Recloser Control – Specification MTUTRTOG C  ARC TTS Cnalog sources used for measurement traceable to OTSU Standards, with certifications on file. VILUCGT C  ARC Y Fundamental Metering Magnitude Phase Angle Voltage Range ± 0.04% ± 0.3° (0.167-10.0) Voltage Range ± 0.04% ± 0.7° (5.0-300.0) OPEN DELTA ±...
  • Page 22 M‑7679 Recloser Control – Specification MTUTRTOG C  ARC TTS Cnalog sources used for measurement traceable to OTSU Standards, with certifications on file.  ARRTOU C  ARC Y Fundamental Metering Magnitude Phase Angle CT Rating and Range 5 A (IA, IB, IC) (0.01-20.0 A) ± 0.02% ±...

  • Page 23: Settings Groups

    Fault Event Records The M-7679 can record and store up to 3,500 events related to the operation of protection functions, changes in configuration, states of the digital inputs and outputs, pickup and/or operation of protection functions, automated mechanism, statistics, etc.

  • Page 24: Front Panel

    LEDs to indicate the type of overcurrent trip. The Fast-Curve LED indicates a Fast-Curve Trip. Recloser/Breaker Wear Monitor The M-7679 control records the amount of current carried in each phase each time the recloser trips. The control’s operational logic employs an algorithm integrating the amount of unfiltered AC current at the time of each trip and the number of operations (close to open) as a method of calculating wear.
  • Page 25 Line to Line quantity. The M-7679 will then calculate the remaining two corresponding balanced Line to Line voltages. TxampleN: Line to Line voltage AB is applied to the Phase A terminal of the unit. The M-7679 will then calculate BC and CA and will provide all voltages.
  • Page 26 M‑7679 Recloser Control – Specification Cyber Security The M-7679 was designed from the ground up to help customers be NERC and cyber security compliant. The M-7679 meets or exceeds the following standards: IEEE 1686 Compliant FIPS180-2, 186-2 IEC 62351-1, -2, -3, -5...

  • Page 27: Power Supplies

    18 to 60 Vdc and a high range of 90 to 280 Vac or 90 to 315 Vdc. The M-7679 also features a backup power supply input of 11 to 14 Vdc, that allows continued operation in case of main power supply loss.

  • Page 28: Output Contacts

    M‑7679 Recloser Control – Specification Output Contacts The M-7679 includes four output contacts expandable to twelve. Any of the protective functions can be individually programmed to activate any one or more of the four Programmable Output Contacts (OUT1 through OUT4). Any output contact can also be selected as pulsed or latched. IPSlogic can also be used to activate output relay contact.

  • Page 29: System Setup

    M‑7679 Recloser Control – Specification System Setup Figure 6 IPScom System Setup Screen (Shown: Voltage Input Option X4, Three-Phase Ganged) Figure 7 IPScom System Setup Screen (Shown: Voltage Input Option H6, Independent Phase Capable) –29–...
  • Page 30 M‑7679 Recloser Control – Specification System Setup (Cont'd.) Figure 8 IPScom System Setup – Inputs Screen (with Extended I/O) Figure 9 IPScom System Setup – Vurtual Inputs Screen –30–...
  • Page 31 M‑7679 Recloser Control – Specification System Setup (Cont'd.) Figure 10 IPScom System Setup – Outputs Screen (with Extended I/O) Figure 11 IPScom System Setup – User Lines Screen –31–...
  • Page 32 M‑7679 Recloser Control – Specification OIUTN: Secondary Metering Screen is identical. Figure 12 IPScom Primary Metering Screen (Voltage Input Option X4, L4, H4 or VT) OIUTN: Secondary Metering Screen is identical. Figure 13 IPScom Primary Metering Screen (Voltage Input Option X6, L6 or H6) Figure 14 IPScom Setpoints Screen –32–...
  • Page 33 M‑7679 Recloser Control – Specification Figure 15 IPScom Example Setpoint Screen: 27 Phase Undervoltage Figure 16 IPScom Smart Button Programming Screen –33–...
  • Page 34 M‑7679 Recloser Control – Specification M-7679 Typical Connection Diagram Source M-7679 Recloser Resistive Voltage Sensors 1 A / 5 A CT Configuration (Source) R Power (Feeder) F Load Figure 17 M-7679 Three-Line Connection Diagram –34–...

  • Page 35: Electrical Environment

    M‑7679 Recloser Control – Specification Tests and Standards The M-7679 Recloser Control complies with the following tests and standards: Voltage Withstand Dielectric Withstand IEC 60255-27 2,000 Vac Impulse Voltage IEC 60255-27 +/- 5,000 V-pk Insulation Resistance > 5 G Ω...

  • Page 36: Atmospheric Environment

    50% relative humidity at 40°C. Environment: Storage area to be free of dust, corrosive gases, flammable materials, dew, percolating water, rain and solar radiation. Warranty The M-7679 Digital Recloser Control is covered by a ten-year warranty from date of shipment. –36–...
  • Page 37 M‑7679 Recloser Control – Specification 5.20 [13.21] 6.22 [15.8] 0.37 [0.94] 5.85 [14.86] 6.00 [15.24] 5.06 [12.85] 8.00 7.25 [20.32] [18.42] Figure 18 M-7679 Vertical Model External Dimensions –37–...
  • Page 38 M‑7679 Recloser Control – Specification 9.47 [24.1] 8.72 0.38 [24.15] [0.97] 1.47 [3.73] 2.25 5.20 [5.72] [13.21] 4 x Ø .22 [.56] 7.25 [18.42] 5.85 6.22 [14.86] 5.06 [15.8] [12.85] 0.15 [0.381] 5.20 [13.21] Figure 19 M-7679 Horizontal Model External Dimensions –38–...
  • Page 39 • Accepts the existing communications connections for Serial TIA-232, TIA-485, Fiber Optic and IRIG-B • Simplifies upgrading communications to optional true embedded Ethernet ports in the M-7679 Recloser Control allowing for multi-user, multi-protocol access to the advanced metering, PQ and DFR information collected by the control •...
  • Page 40 M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) The M-2979 Recloser Control Cabinet, when combined with the M-7679 Recloser Control, provides convenient direct replacement of the control and cabinet for the following reclosers: • Cooper/Traditional Electronic • Cooper NOVA with Auxiliary Input Power •...

  • Page 41: Standard Features

    M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) Construction Available Cabinet Materials • Aluminum (5052-H32 .090" thickness) • Stainless Steel (Optional) (Type 316, 14 gauge) Finish • Polyester powder coat, exterior and interior color ANSI 70 Gray Standard Features •...
  • Page 42 M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) Cabinet to Recloser Interface • Main Control and Measurement – 14 Pin Cannon receptacle (Cooper Traditional/G&W Viper S) – 14 Pin Cannon receptacle with 2 Pin LV closing receptacle (Cooper Traditional, NOVA/G&W Viper S) –...
  • Page 43 M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) M‑2032A Battery Charger The M-2032A is designed to charge a 24 V sealed lead-acid battery. It includes an internal circuit to prevent overcharging of the battery and extend it’s life. The charger feature of the M-2032A will not operate if it does not detect a minimum battery voltage of 21 Vdc.

  • Page 44: Optional Equipment/Accessories

    M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) Optional Equipment/Accessories • Intrusion detection door contact • Universal radio shelf • Fold out out shelf for laptop rest • Communications ready package – Fused DC power, 12 Vdc nominal –...
  • Page 45 M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) Optional Equipment/Accessories (Cont.'d) • Radio Options Include: 2 Way VHF (154 MHz) radio – Radius 2 Way (130 MHz - 3.7 GHz) radio modems: – SilverSpring Networks SSN ebridge and sbridge –...
  • Page 46 Trademarks All brand or product names referenced in this document may be trademarks or registered trademarks of their respective holders. Specification subject to change without notice. Beckwith Electric Co., Inc. has approved only the English version of this document. –46–...
  • Page 47 M‑7679 Recloser Control – Specification M‑2979 Recloser Control Cabinet (Cont'd.) Figure 22 M-2979 Recloser Control Cabinet Dimensional Drawing –47–...
  • Page 48 BT KWTUH TLT URT   I., TO . 6190 - 118th Cvenue Oorth • Largo, Florida 33773-3724 A.S.C. PHIOT (727) 544-2326 • FCX (727) 546-0121 marketing@beckwithelectric.com www.beckwithelectric.com TSI 9001N:2008 © 2012 Beckwith Tlectric  o. Cll Rights Reserved. 800-7679-SP-10 01/17 Printed in A.S.C. (1.15.03)
