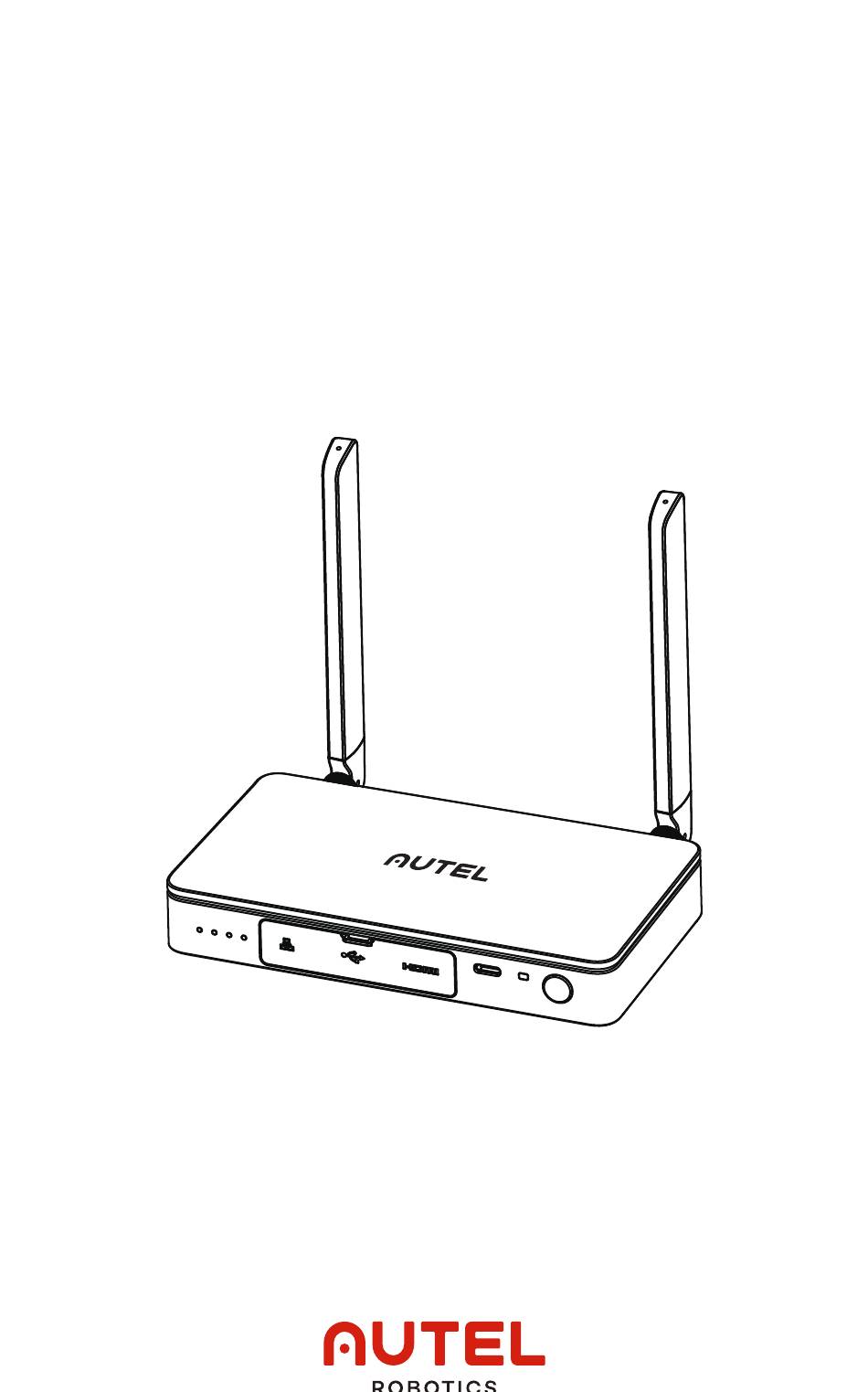

- Page 1 Live Deck 2 User Guide...
-
Page 3: Tutorial Video

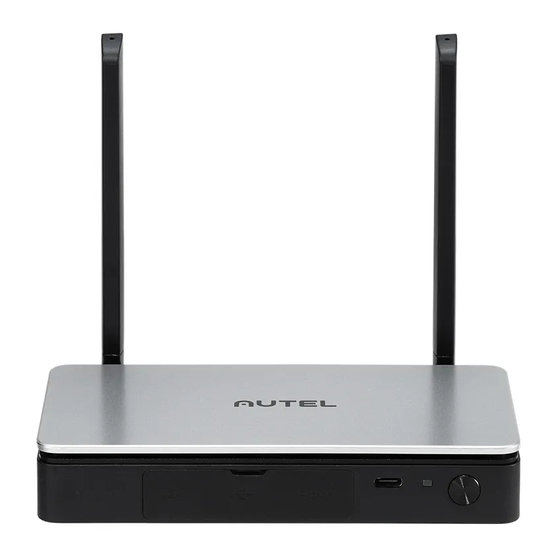

3. Product Information 3.1 Introduction The Live Deck 2 supports a wireless connection with the UAV and a real-time image transmission within 12km under interference-free conditions. The image transmission system and the remote control system work on three frequencies: 2.4GHz/5.8GHz/900MHz* (adaptive aircraft band), and can display videos/images in real-time through HDMI port or Ethernet port. - Page 4 Press and hold the power button for 2s to turn on/off the Live Deck 2. ⑨ TF card port Upgrade the Live Deck 2 through TF card. ⑩ USB Type A 2 External interface* *Exact function will update later on official website.
- Page 5 Power Off: When powered on, press and hold the button for at least 2 seconds to turn off the power. 4.2 Connect To Aircraft 1)Power on the aircraft and Live Deck 2. 2)Press the paring button on the aircraft body, and the led lights on the aircraft will flash green quickly.
- Page 6 3)Press the paring button of Live Deck 2 and the indicator light will flash green quickly. 4)Led lights on aircraft will flash slowly if pairing is successful. 4.3 Live Deck 2 Setting Connects to Type-C port of Autel Smart Controller through USB Type-A 1 port of Live Deck 2 for function settings as below.
- Page 7 2)Ethernet port: make sure Live Deck 2 is on the same network of as the projecting screen, and connect the Type-C port of Autel Smart Controller through USB Type-A 1 port of Live Deck 2. Set the RTMP address to rtmp protocol format (e.g.
-
Page 8: Product Specifications
5. Product Specifications Weight (battery 424.5g (0.94lbs) included) Dimensions 152*111*23.2mm (antennas folded) 223.9*152*23.3mm (antennas unfolded) Ingress Protection IP43 RF Receiver 902~928MHz (FCC); Operating Frequency 2.4GHz~2.4835GHz; 5.725 GHz~5.850GHz (Non-Japan); 5.650-5.755GHz (Japan) Transmission Power 900MHz: FCC<=33dBm (EIRP) 2.4GHz: FCC/NCC<=33dBm;CE/MIC/SR- RC/KC<=20dBm 5.8GHz/5.7GHz: FCC/SRRC/NCC<=33dB- m;KC<=20dBm;CE<=14dBm Max Video 12km... - Page 9 HDMI 1080p@60 fps Ethernet 100M Supported Models EVO II Pro V3 EVO II Dual 640T V3 EVO II RTK Series V3 EVO II Enterprise V3 FCC and ISED Canada Compliance This device complies with part 15 of the FCC Rules and ISED Canada licence-exempt RSS standards.
- Page 10 This equipment should be operated with minimum distance 20cm between the radiator and your body. EU/UK Compliance Autel Robotics Co., Ltd. hereby declares that this wireless device is in compliance with Directive 2014/53/EU and Radio Equipment Regulations 2017.
- Page 12 © 2022-2023 Autel Robotics Co., Ltd. All Rights Reserved.
