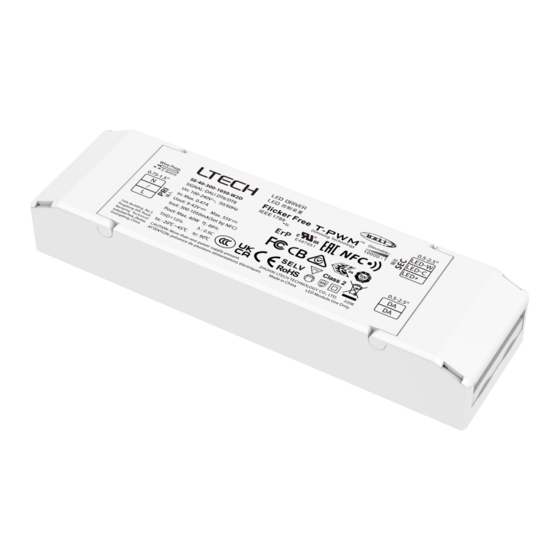

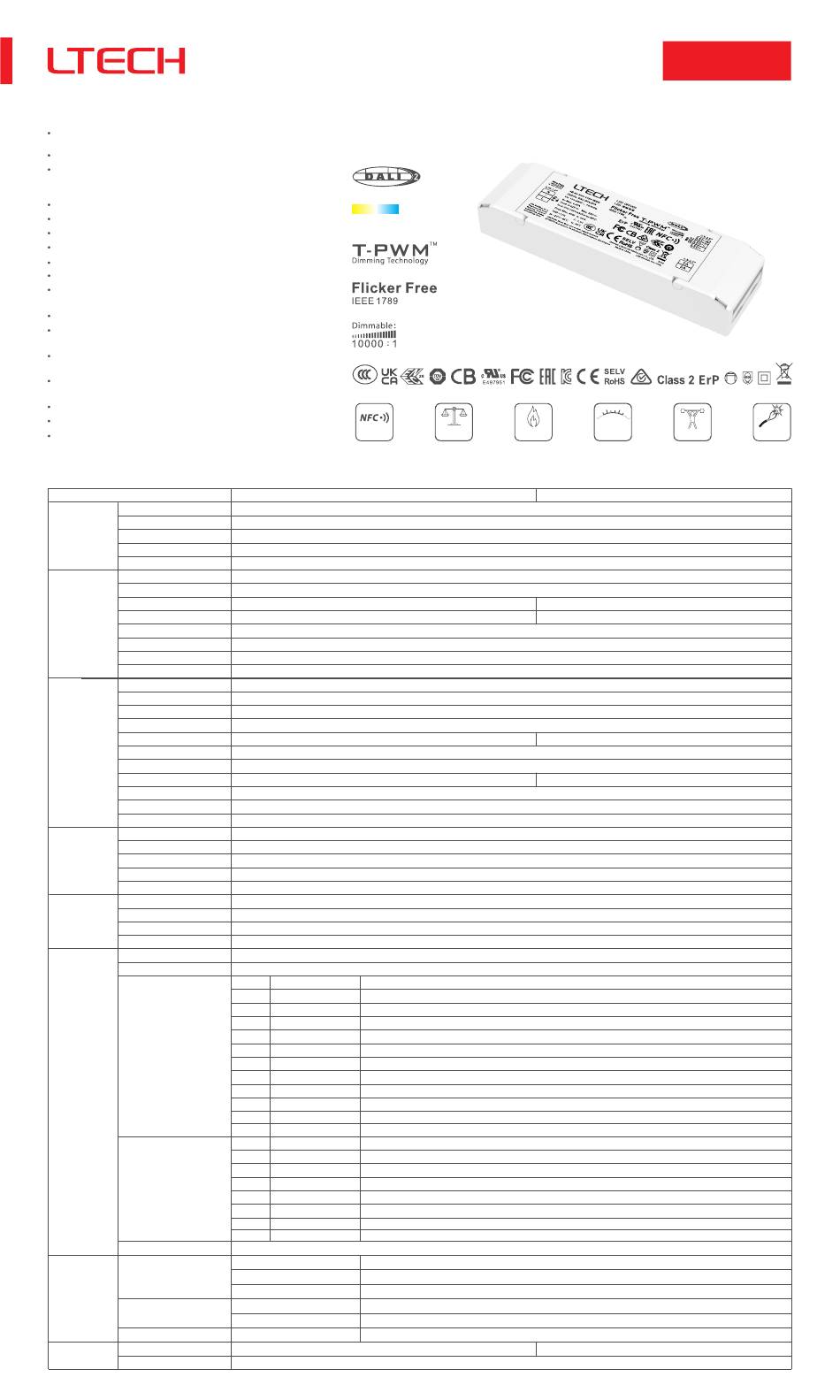

Ltech DALI DT6 Manual

Intelligent Tunable White LED Driver
Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC
materials.
Ultra small, thin and lightweight, screwless end cap.
Change the dimming interface, output current, DALI address and
other parameters on the NFC programmer or via the App, and sync
the parameters to the driver.
Set the DALI group, scene in the advanced DALI template.
Set the output current down to 1mA.
DALI bus standard IEC62386-101, 102, 209.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM™ dimming technology allows quality and high-end lighting.
The whole dimming process is flicker-free with high frequency
exemption level.
Comply with the EU's ErP Directive, standby power consumption<0.5W.
Multiple current levels, wide voltage range, suitable for LEDs with
different power
When there is no load, the output will be 0V to prevent damage to LEDs
due to poor contact.
Overheat, over voltage, overload, short circuit protection and
automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ
indoor light fixtures.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Technical Specs
Model
Output Type
Dimming Interface


Features Output Feature


Protection Grade
Insulation Grade
Output Voltage
Maximum output voltage


Output Current Range


Output Power Range
OUTPUT
Dimming Range
LF Current Ripple
Current Accuracy
PWM Frequency
DC Voltage Range
AC Voltage Range
Input Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (Typ.)
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overload Protection
Overheat Protection
PROTECTION
Overvoltage Protection
Short Circuit Protection
Withstand Voltage
Insulation Resistance
Safety
Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Power Consumption
ErP
Flicker/Stroboscopic Effect
DF
Weight(N.W.)
OTHERS
Dimensions
(Constant Current)
DIM / CT
Multi current
setting
SE-40-300-1050-W2D
Constant Current
DALI
DT6/DT8
Isolation
IP20
Class II (Suitable for class I/ II /III light fixtures)
9-42Vdc
≤55V
300-1050mA
2.7W-40W
0~100%, down to 0.01%
<3%(Maximum current for non dimming state)
±5%
3600Hz
120-300Vdc
100-240Vac
115Vac/230Vac
50/60Hz
≤0.45A/115Aac
PF>0.9/230Vac, at
full
load
THD≤10%/230Vac, at
full
load
88%
Cold start 25A(Test twidth=130us tested under 50% Ipeak)/230Vac
L-N: 2KV
Max. 0.5mA
ta: -20
~
45°C


tc: 90°C
20
~
95%RH,
non-condensing
-40
~
80°C/10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Enter hiccup mode if short circuit occurs, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC GB19510.1, GB19510.14
China
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB CB Member States IEC61347-1, IEC61347-2-13
CE European Union EN61347-1, EN61347-2-13, EN62384
KC KC61347-1, KC61347-2-13
Korea
EAC Russia IEC61347-1, IEC61347-2-13
Australia
RCM AS
61347-1, AS
61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
UKCA Britain
BIS India IS 15885 (PART 2/SEC 13)
CUL
Canada CSA C22.2 NO.250.13
FCC America
UL 8750
CCC GB/T17743, GB17625.1
China
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
Korea
KC KSC 9815, KSC 9547
Russia
EAC IEC62493, IEC61547, EH55015
RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547
Britain
UKCA BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CUL ICES-005
Canada
FCC America FCC PART 15B
EN61000-4-2,3,4,5,6,8,11, EN61547
Standby power consumption No standby mode
Networked standby ≤0.5W
No-load power consumption
≤0.5W
Meet IEEE 1789 standard/High frequency exemption level
IEEE
1789
CIE SVM Pst LM≤1.0，SVM≤0.4
Phase factor DF


0.9 ≤
170g±10g
142×40×23mm(L×W×H)
SE-40-300-1050-W2D
SE-30-200-800-W2D
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
Constant power Overheat
setting Protection
SE-30-200-800-W2D
200-800mA
1.8W-30W
≤0.34A/115Aac
87%
150g±10g
1
DALI DT6/DT8
V
Over voltage Over Load
protection protection
Short circuit
protection
