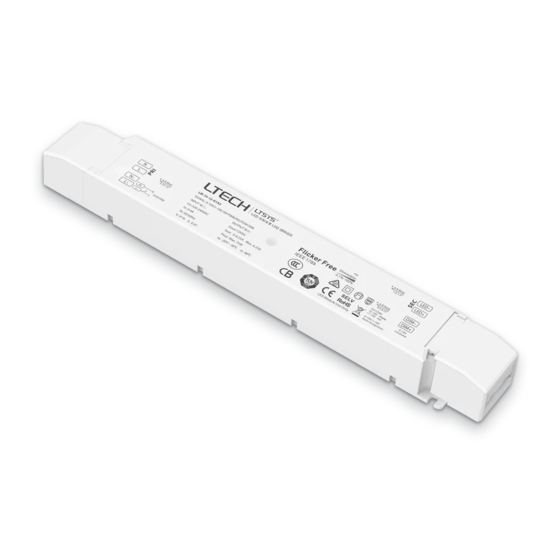

Intelligent LED Driver
Small size and light weight. The housing is made from V0 flame retardant PC
materials from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief. The design of
dismountable end cap allows you to adjust the length of housing depending
on your needs.
Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM
Automatic recognition of 0-10V, 1-10V input signal.
Dimming from 0~100%, down to 0.1%.
With soft-on and fade-in dimming function, enhancing your visual comfort.
High frequency exemption level.
Ultra-low consumption of 0-10V ports: < 0.05mA.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Innovative thermal management technology intelligently protects the life of the
LED driver.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Specification
Model
Output Voltage
Output Voltage Range
Output Current
Output Power
Output Power Range
OUTPUT
Strobe Level
Dimming Range
Overload Power Limitation
Ripple & Noise
PWM Frequency
Dimming Interface
Input Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (typ.)
Inrush Current(typ.)
Control surge capability
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temp., Humidity
Temp. Coefficient
Vibration
Over-heat Protection
Over Voltage Protection
PROTECTION
Over Load Protection
Short Circuit Protection
Withstand Voltage
Isolation Resistance
Safety Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Dimension
OTHERS
Packing
Weight(G.W.)
The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures,
the driver will activate the overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current
LED strip, etc.), then we can prepare the special programs.
(Constant Voltage)
.
LM-75-12-G1A2
12Vdc
12Vdc ±0.5Vdc
Max. 6.25A
Max. 75W
0~75W
High frequency exemption level.
dimming depth: Max. 0.1%
0~100%,
≥102%
≤200mV
3600Hz
0-10V(1-10V/10V PWM/RX), Push DIM
220-240Vac
50/60Hz
Max. 0.4A/230Vac
PF>0.97/230Vac, at full load
≤14% at 230Vac, at full load
91%
Cold start 30A at 230Vac
L-N:2KV
Max. 0.5mA
ta: -20°C ~ 50°C
tc: 80°C
20 ~ 95%RH, non-condensing
-40°C ~ 80°C, 10~95%RH
±0.03%/°C (0-50°C)
10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
Shut down the output when non-load voltage
≥13V, re-power on to recover after fault
condition is removed
Shut down the output when current load≥102%, auto recovers.
Shut down automatically if short circuit occurs, auto recovers.
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC
China
GB19510.1, GB19510.14
CB
CB member states
IEC61347-1, IEC61347-2-13
RCM
Australia
AS 61347-1, AS 61347-2-13
UKCA
Britain
BS EN 61347-2-13:2014+A1:2017, BS EN 61347-1:2015+A1:2021
TUV
Germany
EN 61347-1, EN 61347-2-13, EN 62493
CE
European Union
EN 61347-1, EN 61347-2-13, EN 62384
CCC
China
GB/T 17743, GB 17625.1
Australia
RCM
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
UKCA
Britain
BS EN IEC 55015:2019/A11:2020, BS EN 61547:2009, BS EN IEC 61000-3-2:2019, BS EN 61000-3-3:2013/A1:2019
CE
European Union
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
EN 61000-4-2,3,4,5,6,8,11 EN 61547
IEEE 1789
293×43×30mm(L×W×H)
296×44×33mm(L×W×H)
300g±10g
LM-75-12-G1A2
Flicker-Free
IEEE 1789
High frequency exemption level
5
1
in
dimming
0-10V
1-10V
10V PWM
RX
Push DIM
Ultra-low consumption of 0-10V ports: < 0.05mA.
0-10V
Push DIM
Digital
Dimming
LM-75-24-G1A2
24Vdc
24Vdc ±0.5Vdc
Max. 3.125A
≤300mV
92%
Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition
is removed
1
LM-75-24-G1A2
LM-100-24-G1A2
V
Over voltage
Over-heat
Over
Protection
protection
Protection
LM-100-24-G1A2
Max. 4.17A
Max. 100W
0~100W
Max. 0.5A/230Vac
PF>0.98/230Vac, at full load
≤12% at 230Vac, at full load
93%
Cold start 45A at 230Vac
0-10V
Push DIM
Load
Short Circuit
Protection
