Kraken RC VESLA.5 Instruction Manual

Hide thumbs Also See for VESLA.5:
Table of Contents

Advertisement

Quick Links

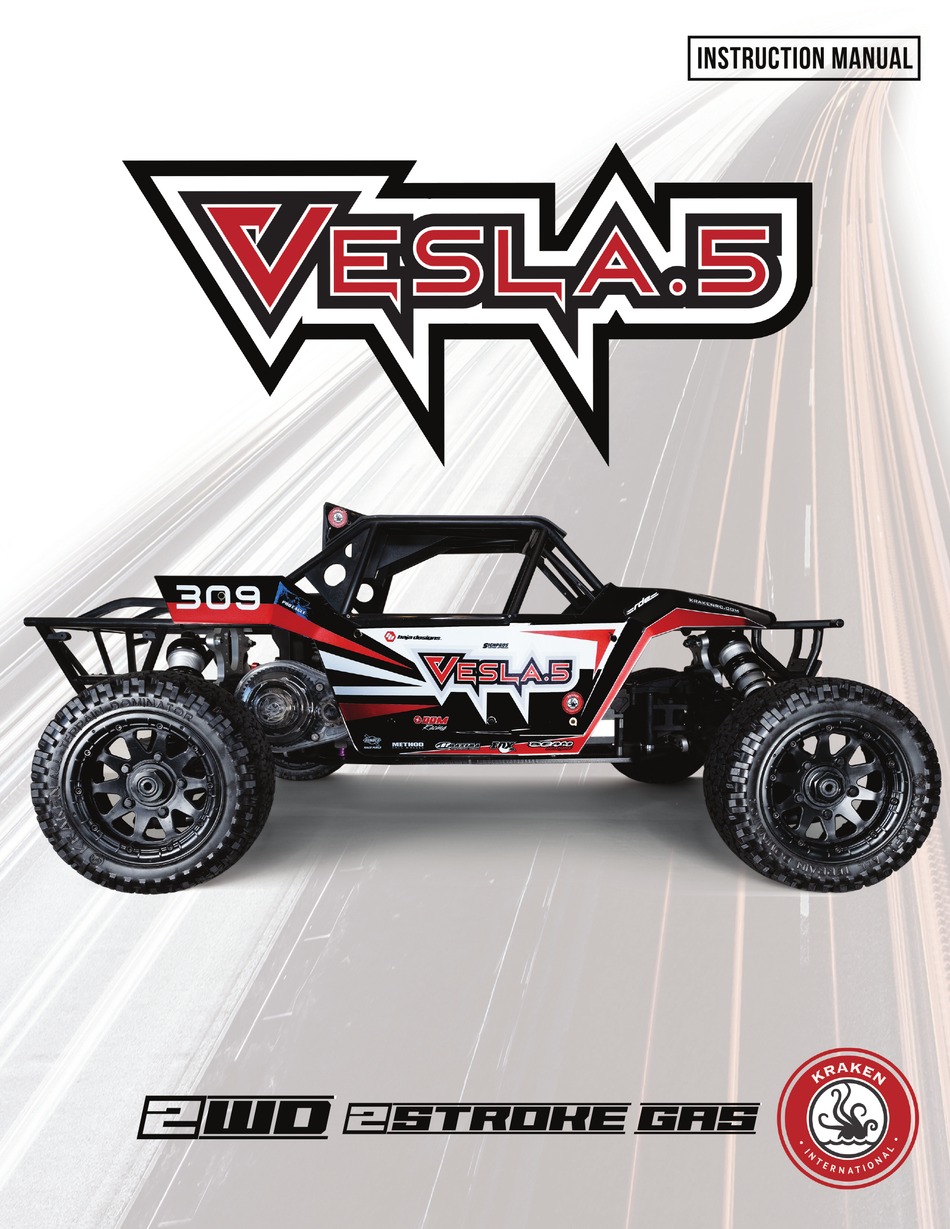

INSTRUCTION MANUAL
2WD
2- S TROKE GAS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VESLA.5 and is the answer not in the manual?

Questions and answers

Related Manuals for Kraken RC VESLA.5

Summary of Contents for Kraken RC VESLA.5

  • Page 1 INSTRUCTION MANUAL 2- S TROKE GAS...
  • Page 2 DISCLAIMER All information on this document is subject to change at the sole discretion of Kraken RC, Inc. for up-to-date product information, please visit krakenrc.com for the latest updates. ATTENTION Please read this manual in its entirety and observe applicable suggestions and recommendations.
  • Page 3 RC hobby and we are so grateful to be able to share our dream with you. We wish you many hours of fun and hope that the VESLA.5 brings you miles of smiles.

  • Page 4: Table Of Contents

    LINKAGE ASSEMBLY ....ROLL CAGE ASSEMBLY ....Page 4 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 5: Introduction

    - L: 120mm W: 51mm H: 47.5mm 3. Prop your vehicle on a platform. Turn on the transmitter and receiver. Check to see if the front wheels respond to the steering servo and are centered. Page 5 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 6: Adjusting Steering And Throttle Arms

    Use your transmitter trim and subtrims to fine tune the adjustments. Adjust brake nut clock- wise until the car brakes effectively. Bench test the vehicle prior to running it. Page 6 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 7: Fuel Mixture And Fueling

    2. Locate the fuel tank on the back of the vehicle, remove the gas cap and safely pour gas into your fuel tank. Do not overfill and avoid spilling gas onto your vehi- cle. When you are done, securely attach your gas cap onto your fuel tank. Page 7 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 8: Pre-Run Check

    The break-in procedures for the 2 stroke motor is extremely important. Please follow the procedures correctly. Failure to do so may cause your engine to fail. For an in-depth instruc- tions to how to break-in and tune your engine, check out this in-depth video - https://bit.ly/3Ssoxw5 Page 8 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 9 Observe the break in proce- dures for your engine. Break in the engine by driving slowly for the first half tank of fuel (about 25 minutes). Page 9 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 10: Slipper Clutch And Spur Gear Maintenance

    SLIPPER CLUTCH AND SPUR GEAR MAINTENANCE Assembly Item Number Name Quantity KVS425 SlipperDisk KV4414 KV5-SlipperPad KVS423 SlipperGear,m1.5 T57 KV3306 KV5-DiskSpring50x25.4x1.5 KVS463 SlipperAdjustingNut Page 10 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 11 SLIPPER CLUTCH AND SPUR GEAR MAINTENANCE Fully snug clockwise and loosen by the nut by 1/8th of a turn Jam the the clutchbell by inserting a screw driver through the hole on the heel of the clutchbell Page 11 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 12 SLIPPER CLUTCH AND SPUR GEAR MAINTENANCE Assembly Item Number Name Quantity KV3383 WasherS8x15.6x2.5 KV3349 LockNut080 Page 12 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 13: Shock Maintenance

    SHOCK MAINTENANCE Assembly Item Number Name Quantity KVS444 ShockBody KV8853 KV5-ShockShaftGuide KV3303 ORing8x4(NBR70) KV8852 KV5-Shock-BackUpRing KV8856 KV5-ShockShaftGuideA KV5559 KV5-ShockSealCap Page 13 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 14 SHOCK MAINTENANCE Assembly Item Number Name Quantity KVS445 ShockShaft KV3381 Washer6x12x1.6 KV8851 KV5-ShockPiston KV3334 LockNut6 KV8854 KV5-ShockShaftEnd Page 14 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 15 SHOCK MAINTENANCE Front Shock Oil: 250 CST Rear Shock Oil: 150 CST Assembly Item Number Name Quantity KV4433 KV5-ShockDiaphragm KV8855 KV5-ShockTopEnd KV5548 KV5-ShockTopCap Page 15 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 16 SHOCK MAINTENANCE Assembly Item Number Name Quantity KV5560 KV5-ShockSpringAdjustingRing KV3302 ORing33.5x2,S34(NBR70) KV5561 KV5-FrontShockSpring KV8850 KV5-ShockSpringPerch Front Shocks Gap: 15mm Rear Shocks Gap: 20mm Page 16 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 17 SHOCK MAINTENANCE Assembly Item Number Name Quantity KV5509 KV5-ShockStand KV5508 KV5-Ball13.8x5 Page 17 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 18 SHOCK MAINTENANCE Assembly Item Number Name Quantity KV5509 KV5-ShockStand KV5508 KV5-Ball13.8x5 Page 18 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 19: Differential Maintenance

    DIFFERENTIAL MAINTENANCE 500,000 CST Diff Oil BLUE LOCTITE Assembly Item Number Name Quantity KV4436 KV5-DiffCase KV4437 KV5-DiffCaseBushing (Pressed inside 2702288) KV3317 Bearing15x28x7 KV5547 KV5-DiffOutDriver KV3304 ORing9.8x2.4,P10A(NBR70) KV4428 KV5-DiffWasher10x30x03 KV4425 DiffBevelSunGear KV3365 ScrewFH5x12 Page 19 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 20 DIFFERENTIAL MAINTENANCE Assembly Item Number Name Quantity KV5546 KV5-DiffCrossPin KV4426 DiffBevelPlanetGear KV4429 KV5-DiffWasher6x18x03 Page 20 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 21 DIFFERENTIAL MAINTENANCE BLUE LOCTITE Assembly Item Number Name Quantity KVS472 DiffRingGear KV3317 Bearing15x28x7 KV5547 KV5-DiffOutDriver KV3304 ORing9.8x2.4,P10A(NBR70) KV4428 KV5-DiffWasher10x30x03 KV4425 DiffBevelSunGear KV3365 ScrewFH5x12 Page 21 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 22 DIFFERENTIAL MAINTENANCE BLUE LOCTITE Assembly Item Number Name Quantity KV4427 KV5-DiffGasket KV3366 ScrewFH5x16 Page 22 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 23: Brake Maintenance

    BRAKE MAINTENANCE RED LOCTITE RED LOCTITE Assembly Item Number Name Quantity KVS499 BrakeMount KVS502 Bearing,Flange 6x10x3 KVS466 BrakeCamBlock KVS467 BrakeCamShaft KV5590 KV5-BrakeLever KV3374 ScrewSS4x5 KV3375 ScrewSS5x6 Page 23 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 24 BRAKE MAINTENANCE BLUE LOCTITE Assembly Item Number Name Quantity KVS468 BrakeHub KV4412 KV5-BrakeDisc KVS405 BrakeReturnSpring KV4411 KV5-BrakePad KVS469 BrakeScrewPin KV3339 ScrewBH4x12 Page 24 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 25: Linkage Assembly

    LINKAGE ASSEMBLY Assembly Item Number Name Quantity KVS470 Bushing,T4x6x9x1x10 KVS490 Pivot-Throttle,Brake Page 25 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 26 LINKAGE ASSEMBLY Assembly Item Number Name Quantity No Item Code Use 60KG Servo provided CNC Servo Horn KV3360 ScrewBH4x25 KV3332 LockNut4 Page 26 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 27 LINKAGE ASSEMBLY Assembly Item Number Name Quantity KVS426 Rod,Brake KVS427 Rod,Throttle KV5574 KV5-RodStopper2.8 KV3402 CH2 Throttle Crush Tube 3x7x5 KV5502 L5-CH2Throttle Spring Page 27 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 28 LINKAGE ASSEMBLY BLUE LOCTITE BLUE LOCTITE Assembly Item Number Name Quantity KV3373 ScrewSS3x4 7.5mm 6.5mm Page 28 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 29 LINKAGE ASSEMBLY Page 29 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 30 LINKAGE ASSEMBLY Assembly Item Number Name Quantity KVS485 BrakePivotWasher KV3330 SPRING ID4x20x0.7mm 11Coils KV5573 KV5-RodAdjustingCollar Page 30 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 31 LINKAGE ASSEMBLY BLUE LOCTITE Assembly Item Number Name Quantity KV3373 ScrewSS3x4 Page 31 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 32 LINKAGE ASSEMBLY Assembly Item Number Name Quantity Servo Small Screw Page 32 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...

  • Page 33: Roll Cage Assembly

    ROLL CAGE ASSEMBLY Assembly Item Number Name Quantity KV3340 ScrewBH4x16 Page 33 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 34 UNDER SIDE WING BH3x8 UNDER SIDE WING BH3x8 Assembly Item Number Name Quantity KV3343 BH3x10 (All small screws otherwise indicated) 3x6x0.8mm Washer (All small washers otherwise KVS461 indicated) KV3360 BH4x25 KV3332 M4locknut KV3338 BH3x8 Page 34 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 35 ROLL CAGE ASSEMBLY Assembly Item Number Name Quantity KV3643 Vesla Pins KV3367 FH5x20 KV3333 M5locknut KVS456 Page 35 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 36 ROLL CAGE ASSEMBLY Assembly Item Number Name Quantity KVS415 FH6x20 KV3334 M6Locknut Page 36 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 37 ROLL CAGE ASSEMBLY Assembly Item Number Name Quantity KVS454 FH4x15 KV3641 VESLA.5 Rollcage Brace KV3456 BH5x30 KV3333 M5lockNut Page 37 VESLA.5 INSTRUCTIONAL MANUAL FOR GAS...
  • Page 38 KRAKEN RC, INC. CALIFORNIA, USA. WWW.KRAKENRC.COM...
