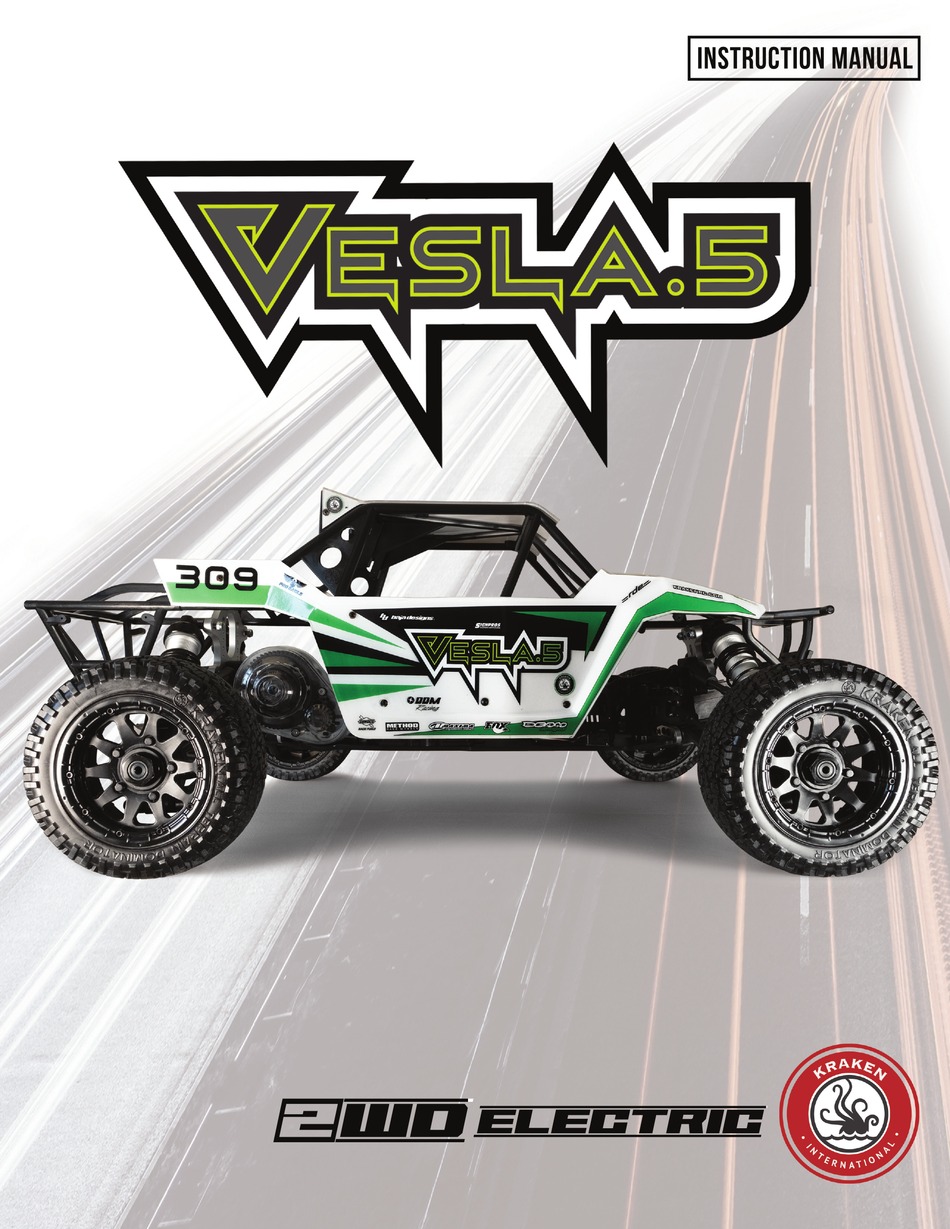

- Page 1 INSTRUCTION MANUAL ELECTRIC...
- Page 2 DISCLAIMER All information on this document is subject to change at the sole discretion of Kraken RC, Inc. for up-to-date product information, please visit krakenrc.com for the latest updates. ATTENTION Please read this manual in its entirety and observe applicable suggestions and recommendations.
- Page 3 RC hobby and we are so grateful to be able to share our dream with you. We wish you many hours of fun and hope that the VESLA.5 brings you miles of smiles.
-
Page 4: Table Of Contents
Differential Maintenance ....Roll Cage Assembly instructions ... . Page 4 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... -
Page 5: Introduction
3. Install your LIPO Batteries with the leads on the opposite end. En- sure that any cables are not pinched. 4. Secure the batteries with the battery straps before operating. Watch our step-by-step instructional video here - https://www.youtube. com/watch?v=6z7VS5UZCYM Page 5 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... -
Page 6: Esc Programming And Radio Adjustments
Use the diagram above as a guide for the position of the throttle/brake horn. Watch our step-by-step instruc- tional video here - https://www. youtube.com/watch?v=6z7V- S5UZCYM For quick and easy program- ming get the Hobbywing LED HOBBYWING LED Program Card ESC programming card - https://tinyurl.com/mu8yndjs Page 6 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... - Page 7 Operate the vehicle in an open space away from traffice and people. Drive slow at first to make sure everything is working correctly Page 7 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
-
Page 8: Slipper Gear Maintenance
SLIPPER GEAR MAINTENANCE Assembly Item Number Name Quantity KVS425 SlipperDisk KV4414 KV5-SlipperPad KVS423 SlipperGear,m1.5 T57 KV3306 KV5-DiskSpring50x25.4x1.5 KVS463 SlipperAdjustingNut Page 8 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... - Page 9 SLIPPER GEAR MAINTENANCE Fully snug clockwise and loosen by the nut by 1/8th of a turn Jam the pinion with another spur gear to and tighten the adjusting Page 9 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 10 SLIPPER GEAR MAINTENANCE Assembly Item Number Name Quantity 3300089 WasherS8x15.6x2.5 KKR412012 LockNut080 Page 10 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
-
Page 11: Shocks Maintenance
SHOCK MAINTANENCE Assembly Item Number Name Quantity KVS444 ShockBody KV8853 KV5-ShockShaftGuide KV3303 ORing8x4(NBR70) KV8852 KV5-Shock-BackUpRing KV8856 KV5-ShockShaftGuideA KV5559 KV5-ShockSealCap Page 11 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... - Page 12 SHOCK MAINTANENCE Assembly Item Number Name Quantity KVS445 ShockShaft KV3381 Washer6x12x1.6 KV8851 KV5-ShockPiston KV3334 LockNut6 KV8854 KV5-ShockShaftEnd Page 12 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 13 SHOCK MAINTANENCE Front Shock Oil: 250 CST Rear Shock Oil: 150 CST Assembly Item Number Name Quantity KV4433 KV5-ShockDiaphragm KV8855 KV5-ShockTopEnd KV5548 KV5-ShockTopCap Page 13 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 14 SHOCK MAINTANENCE Assembly Item Number Name Quantity KV5560 KV5-ShockSpringAdjustingRing KV3302 ORing33.5x2,S34(NBR70) KV5561 KV5-FrontShockSpring KV8850 KV5-ShockSpringPerch Front Shocks Gap: 15mm Rear Shocks Gap: 20mm Page 14 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 15 SHOCK MAINTANENCE Assembly Item Number Name Quantity KV5509 KV5-ShockStand KV5508 KV5-Ball13.8x5 Page 15 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 16 SHOCK MAINTANENCE Assembly Item Number Name Quantity KV5509 KV5-ShockStand KV5508 KV5-Ball13.8x5 Page 16 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
-
Page 17: Differential Maintenance
DIFFERENTIAL MAINTANENCE 500,000 CST Diff Oil BLUE LOCTITE Assembly Item Number Name Quantity KV4436 KV5-DiffCase KV4437 KV5-DiffCaseBushing (Pressed inside 2702288) KV3317 Bearing15x28x7 KV5547 KV5-DiffOutDriver KV3304 ORing9.8x2.4,P10A(NBR70) KV4428 KV5-DiffWasher10x30x03 KV4425 DiffBevelSunGear KV3365 ScrewFH5x12 Page 17 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... - Page 18 DIFFERENTIAL MAINTANENCE Assembly Item Number Name Quantity KV5546 KV5-DiffCrossPin KV4426 DiffBevelPlanetGear KV4429 KV5-DiffWasher6x18x03 Page 18 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 19 DIFFERENTIAL MAINTANENCE BLUE LOCTITE Assembly Item Number Name Quantity KVS472 DiffRingGear KV3317 Bearing15x28x7 KV5547 KV5-DiffOutDriver KV3304 ORing9.8x2.4,P10A(NBR70) KV4428 KV5-DiffWasher10x30x03 KV4425 DiffBevelSunGear KV3365 ScrewFH5x12 Page 19 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 20 DIFFERENTIAL MAINTANENCE BLUE LOCTITE Assembly Item Number Name Quantity KV4427 KV5-DiffGasket KV3366 ScrewFH5x16 Page 20 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
-
Page 21: Roll Cage Assembly Instructions
ROLL CAGE ASSEMBLY Assembly Item Number Name Quantity KV3340 ScrewBH4x16 Page 21 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC... - Page 22 UNDER SIDE WING BH3x8 UNDER SIDE WING BH3x8 Assembly Item Number Name Quantity KV3343 BH3x10 (All small screws otherwise indicated) 3x6x0.8mm Washer (All small washers otherwise KVS461 indicated) KV3360 BH4x25 KV3332 M4locknut KV3338 BH3x8 Page 22 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 23 ROLL CAGE ASSEMBLY (GAS AND ELECTRIC) Assembly Item Number Name Quantity KV3643 Vesla Pins KV3367 FH5x20 KV3333 M5locknut KVS456 Page 23 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 24 ROLL CAGE ASSEMBLY (GAS AND ELECTRIC) Assembly Item Number Name Quantity KVS415 FH6x20 KV3334 M6Locknut Page 24 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 25 ROLL CAGE ASSEMBLY (GAS AND ELECTRIC) Assembly Item Number Name Quantity KVS454 FH4x15 KV3641 VESLA.5 Rollcage Brace KV3456 BH5x30 KV3333 M5lockNut Page 25 VESLA.5 INSTRUCTIONAL MANUAL FOR ELECTRIC...
- Page 26 KRAKEN RC, INC. CALIFORNIA, USA. WWW.KRAKENRC.COM...
