- Page 1 ELECTRICALLY INSULATED 14mm PROBE USER’S MANUAL NOTE: ETL SAFETY RATING ONLY APPLIES TO THE DCS400 SERIES SYSTEMS. PE14 Please read this manual carefully and thoroughly before using this product.
- Page 2 PE14 probe with any system other than the DCS400. Working in concert with a DCS400, the PE14 makes it safe to inspect two kinds of environments: 1. Any area or enclosure where you would expect to find electrical wiring.
-
Page 3: Key Features
Such areas may contain electrical hazards created by age (worn insulation, e.g.) or structural modifications. The PE14 makes it possible to inspect electrically hazardous areas (as well as safe areas) using the capabilities and features of a Seeker 400 Series system. The probe has many applications in the automotive/boat/aircraft repair, plumbing, construction, restoration and HVAC/R industries. -
Page 4: Safety Instructions

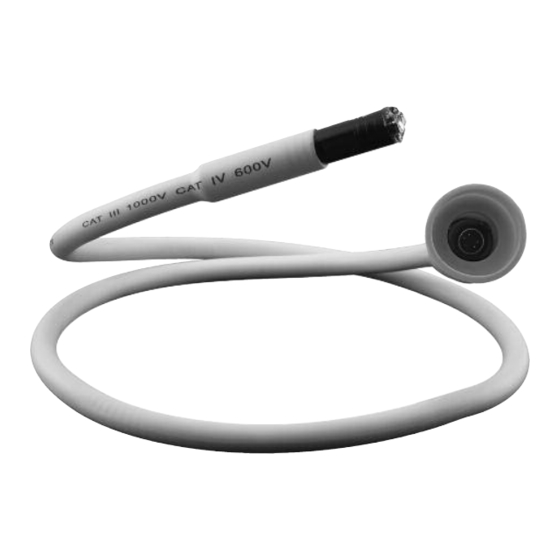

WHAT’S IN THE BOX The PE14 comes in a box with a package of three probe tip accessories (a 45° mirror, a magnetic pickup, and a pickup hook) and this user’s manual. -
Page 5: Attaching The Probe
ATTACHING THE PROBE To attach the PE14 probe to the handle (grip) of a DCS400 Series system, first roll the rubber insulation back from the connector end of the probe. Then line up the probe’s alignment key with the flat on the coupling of the DCS400’s probe connector (left photo below). -
Page 6: Specifications
SPECIFICATIONS Type Flexible-obedient Length 3.28 ft. (1m) Diameter 14mm (0.55 in.) Camera Light Source 2 high-intensity white LEDs Camera Field of View 60° Camera Depth of Field 1 in. (25mm) to infinity Camera Resolution 640 x 480 pixels (still images); 320 x 240 pixels (video) Certifications Water, dust, oil and scratch-resistant to... -
Page 7: Warranty Information
The defective unit must be returned to General Tools & Instruments or to a General-authorized service center, freight prepaid and insured. Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. -
Page 8: Return For Repair Policy
PHONE (212) 431 - 6100 FAX (212) 431 - 6499 TOLL FREE (800) 697-8665 e-mail: sales@generaltools.com www.generaltools.com PE14 User’s Manual Specifications subject to change without notice NOTICE - NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. ©2011 GENERAL TOOLS & INSTRUMENTS MAN#PE14 8/02/11...
