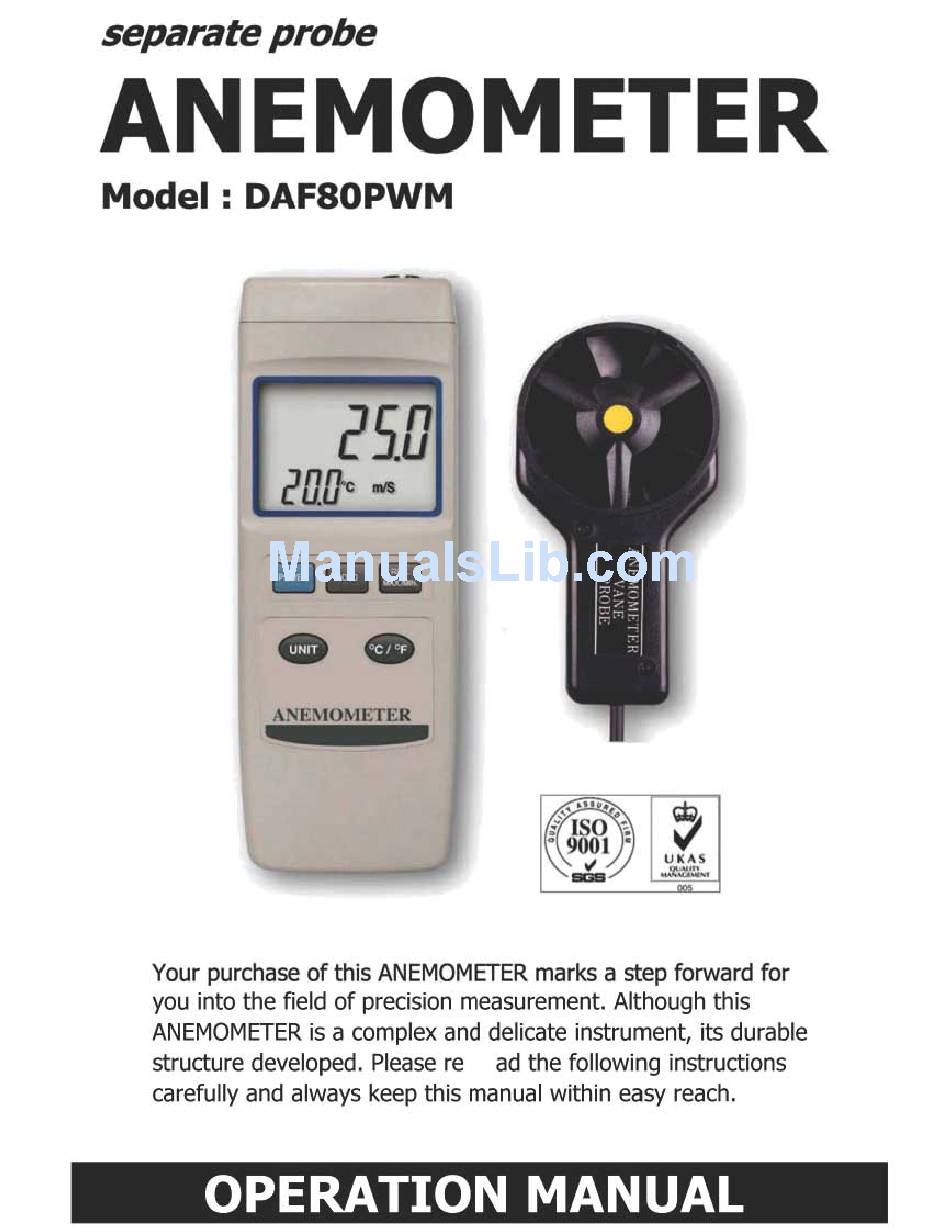

General tools DAF80PWM Operation Manual

Anemometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAF80PWM and is the answer not in the manual?

Questions and answers

Related Manuals for General tools DAF80PWM

Summary of Contents for General tools DAF80PWM

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 2-1 General Specifications......... 2 2-2 Electrical Specifications........3 A. Air velocity............3 B. Temperature............ 3 3. FRONT PANEL DESCRIPTION........4 3-1 Display............... 4 3-2 Power Button............4 3-3 Hold Button............4 3-4 Record ( Max/Min ) Button........4 3-5 Unit button............

  • Page 3: Features

    1. FEATURES Microprocessor circuit assures maximum possible accuracy, provides special functions and features. The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote vane probe separately. Multi display units for air velocity measurement : m/s, km/h, ft/min, knots.

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Display * 51 mm x 32 mm supper large LCD display. * Dual function meter's display. Measurement m/s ( meters per second ), km/h ( kilometers per hour ), ft/min ( feet/per minute ), knots ( nautical miles per hour ), mph ( mile/h, miles per hour ), Temp.- 蚓, 蚌., Data hold.

  • Page 5: Electrical Specifications

    Operating Max. 80% RH. Humidity Power Supply Heavy duty type DC 9V battery, 006P, MN1604(PP3) or equvalent. Power Current Approx. DC 8.3 mA. Weight 220 g/0.48 LB. Main instrument: Size 200 x 68 x 30 mm ( 7.9 x 2.7 x 1.2 inch ). Vane Probe Head: Round, 72 mm Dia.

  • Page 6: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-8 Probe Input Socket 3-2 Power Button 3-9 Battery Compartment/Cover 3-3 Hold Button 3-10 Stand 3-4 Record ( Max/Min ) Button 3-11 Vane Probe Head 3-5 Unit button 3-12 Probe Handle 3-6 蚓/蚌 button 3-13 Probe Plug 3-7 RS-232 Output Terminal...

  • Page 7: Measuring Procedure

    4. MEASURING PROCEDURE 4-1 Air velocity/Temperature measurement 1 )Install the " Probe Plug " ( 3-13, Fig. 1 ) into the " Input Socket " ( 3-8, Fig. 1 ). 2) Power ON the meter by pressing the " Power Button " ( 3-2, fig.

  • Page 8: Auto Power Off Disable

    b. With the " REC " symbol on the display : * Press the " REC Button " ( 3-4, Fig. 1 ) once, the " REC Max " symbol along with the maximum value will appear on the display. Note : If intend to delete the maximum value, just press the "...

  • Page 9: Rs232 Pc Serial Interface

    6. RS232 PC SERIAL INTERFACE The instrument has RS232 PC serial interface via a 3.5 mm terminal ( 3-7, Fig. 1 ). The data output is a 16 digit stream which can be utilized for user's specific application. A RS232 lead with the following connection will be required to link the instrument with the PC serial port.
  • Page 10 2) Slide the " Battery Cover " ( 3-9, Fig. 1 ) away from the instrument and remove the battery. 3) Replace with 9V battery ( Alkaline or Heavy duty type ) and reinstate the cover. 4) Make sure the battery cover is secured after changing the battery. 0512-DAF80PWM...
