Reliable B-SI Manual

Features
• Self-contained air supply.
• System low air indicator.
• Relay for remote signal of low air and/or loss of power.
• Bypass inlet and valve provided for quick filling system
with a separate source.
• Cabinet with keyhole slots for easy mounting.
• Stainless steel hose connection kit included
Product Description

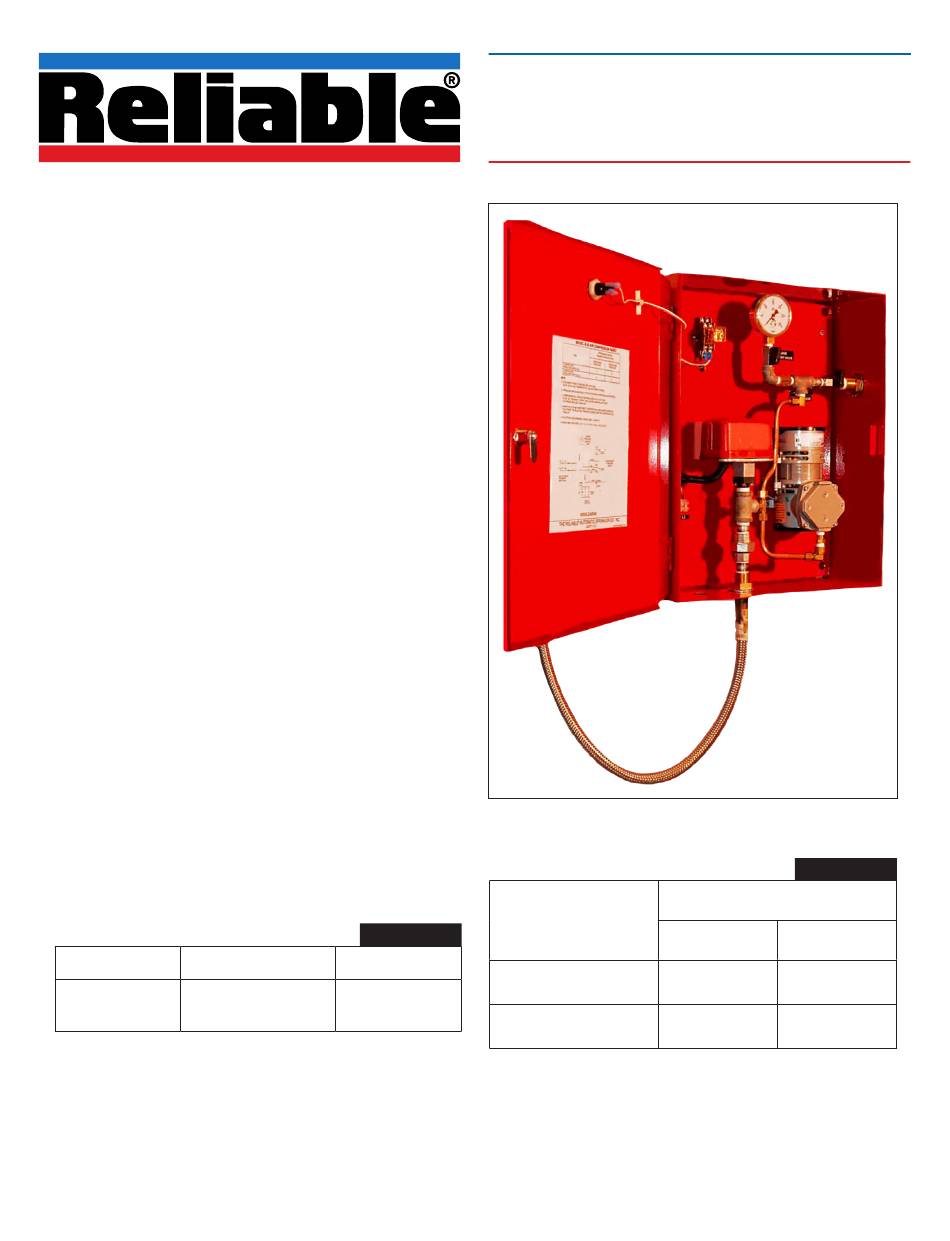

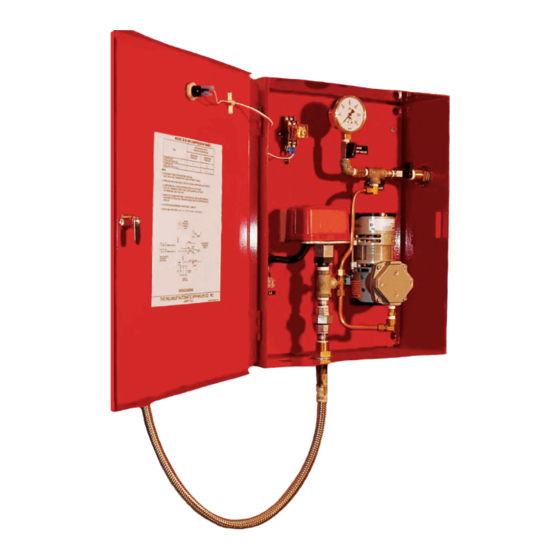

Reliable Air Compressor panels provide a self-contained su-
pervisory air supply for single interlock preaction systems. The
air source for the Model B-SI is a 115-60-1,
pressor and the Model C-SI is equipped with a 220/230-50/60-1,
/
HP Gast compressor. A System Sensor PS10-2 pressure
1
16
switch monitors the system air pressure. Approximately 7 psi
(0.48 bar) of air will keep the pressure switch contacts open
and the air compressor off. A drop of approximately 2 psi (0.14
bar) will switch the contacts to the closed position and the com-
pressor will turn on to replace the air in the system ( in case of
a small leak). If the pressure drops approximately 3 psi (.021
bar) the low air signal will activate. The relay provides dry con-
tacts for remote signal of low air pressure or loss of power. The
hose kit (included with panel) provides flexibility to connect the
Model B-SI and C-SI Air Compressor Panel to the system. The
/
hose kit consists of a " shut-off valve,
1
4
/ /
hose, " x " bushing, and
1 1
4 2
must be installed horizontally at the opening provided for the
air supply on the system. The panel is designed with keyhole
slots for ease of wall mounting. A quick-fill bypass connection
outside the enclosure is provided to reduce system setup time
using an auxiliary compressor, if desired.
Caution: The pressure gauge shut-off valve must be closed
when using the quick-fill bypass. The quick-fill pressure must
not exceed 25 psi (1,7 bar).
Dimensions
Panel Dim. Mounting Dim.
W x H x D
16" x 20" x 6" 14¼" x 18¼"
(406mm x 508mm ø ¼" Holes (4)
x 152mm) (362mm x 464mm)
/
HP Gast com-
1
16
/
" x 72" stainless-steel
1
4
/
" check valve. The check valve
1
2
Table 1
Shipping
W x H Weight
27lbs.
(12.2 kg.)
www.reliablesprinkler.com
Model B-SI & C-SI Air Compressor Panel
Supervisory Pressure Maintenance Equipment
Model B-SI (120 VAC) & C-SI (220 VAC) Air Compressor Panel
Pressure Switch Settings
Factory
Settings
Compressor
Pressure Switch # 1
Low Pressure light
Pressure Switch #2
Bulletin 252 May 2019
cULus Listed, FM Approved
Table 2
Approximate Switch Transfer
Pressure psi (bar)
Increasing Decreasing
Pressure Pressure
7 (0.48) 5 (0.34)
5 (0.34) 4 (0.27)
