STYLE SELECTIONS is a trademark or registered
trademark of LF, LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Call customer service at 1-877-888-8225,8 a.m. - 8 p.m., EST, Monday - Sunday.
ITEM #5120860

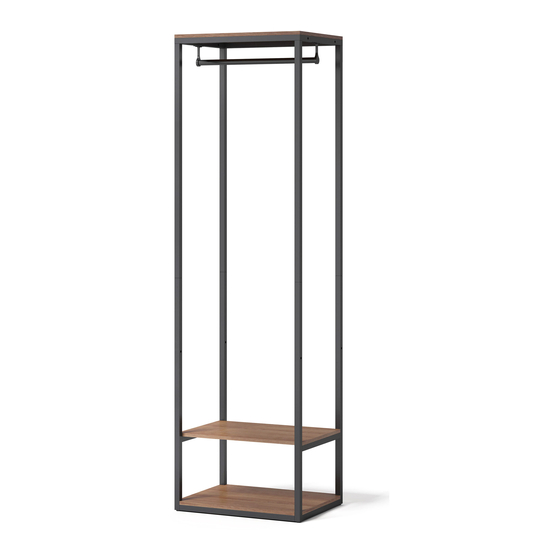

LONG HANG TOWER
MODEL #LWUSTCB
1
PACKAGE CONTENTS
C
D
E
PART
DESCRIPTION
QUANTITY
A
Top panel
1
B
Top frame
1
C
Back post
2
D
Front post
2
E
Left side frame
1
F
Right side frame
1
G
Connect beam
2
H
Bottom stretcher
1
I
Shelf
1
J
Bottom panel
1
K
Metal pole
1
C
A
D
B
K
F
I
G
J
H
G
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LF Style selections LWUSTCB
Summary of Contents for LF Style selections LWUSTCB
- Page 1 PACKAGE CONTENTS STYLE SELECTIONS is a trademark or registered trademark of LF, LLC. All rights reserved. ITEM #5120860 PART DESCRIPTION QUANTITY Top panel LONG HANG TOWER Top frame Back post Front post MODEL #LWUSTCB Left side frame Right side frame...
-
Page 2: Safety Information
HARDWARE CONTENTS (not shown actual size) SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Please read and understand this entire manual prior to assembling the product. 1. Do not allow children to climb or play in or around this product. 2. - Page 3 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS 1. Attach connect beams (G) and bottom stretcher (H) 4. Attach top panel (A), shelf (I) and bottom panel (J) to assembly. Secure in place with M4 x 35 mm screws (BB). between the side frames (E and F) using 1/4” x 12 mm bolts (AA).
-
Page 4: Care And Maintenance
ASSEMBLY INSTRUCTIONS CARE AND MAINTENANCE • Periodically check to make certain all components are properly positioned, free from damage 7. Adjust floor levelers to level the unit against the wall and firmly connected. where desired. Using top frame (B) as a template, mark Wall •... - Page 5 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-877-888-8225,8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # 1/4” x 12 mm Bolt 00LWUSTCB-AA M4 x 35 mm Screw 00LWUSTCB-BB Hex wrench 00LWUSTCB-CC L-bracket 00LWUSTCB-DD M4 x 15 mm Bolt...
