Dimplex BDG15-AU Instruction Manual

Dimplex BDG15-AU Instruction Manual

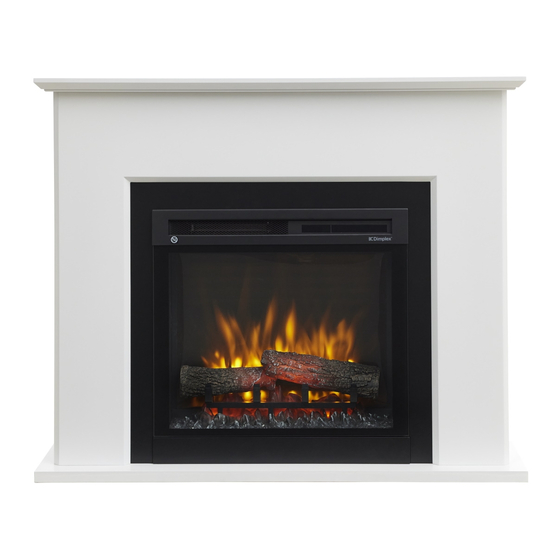

Beading 1.5kw electric fire suite

Advertisement

Quick Links

INSTRUCTION MANUAL
Beading 1.5kW Electric Fire
Suite
Model: BDG15-AU
For domestic household use only.
8/55054/0 Issue 2
OCN 11905

Advertisement

loading
Need help?

Need help?

Do you have a question about the BDG15-AU and is the answer not in the manual?

Questions and answers

Summary of Contents for Dimplex BDG15-AU

  • Page 1 INSTRUCTION MANUAL Beading 1.5kW Electric Fire Suite Model: BDG15-AU For domestic household use only. 8/55054/0 Issue 2 OCN 11905...
  • Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
  • Page 3 its use on deep pile carpets or on long hair type of rugs • The appliance must be positioned so that the plug is accessible. • If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
  • Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
  • Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
  • Page 6: Specifications

    Specifications Model no. BDG15-AU Colour/Finish Matte White - RAL9016 Firebox XHD23L-AU Watts 1400-1500 Heat Settings Thermostat Control Remote Control Warranty 2 years Dimensions (w x d x h) 1100 x 280 x 900mm For greater precision, please always refer to the rating label placed on the product.
  • Page 7 Setup & Product Dimensions WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND ON THIS PRODUCT. WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT, THIS RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE.
  • Page 8 Setup & Product Dimensions Mounting Glass frame- See Fig to the left. Product comes with a glass frame that is not fixed to firebox, but packed separately to the fire in its own packing. To fix the frame the hooks on both side at the top need to be aligned up with corresponding slots on both sides of the fire.
  • Page 9 Touch Panel & Remote WARNING: The Electric Firebox must be installed properly before it is used. CAUTION: Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing. The manual controls for the Electric Firebox are located on the front panel. Touch an icon to activate.
  • Page 10: Operation

    Operation Icon Function Description Power Press to turn unit Off or On. Unit Off Press to turn everything Off. Press again to turn unit On with previous settings. Unit On Press to turn unit On with previous settings. - If the flame effect was On, the flame will turn on and the previous heat setting will be activated (On or Off).
  • Page 11 Operation User Modes: Mode Name / Action (Actions cannot be input by remote control) Description Press both Temp Button ( ) and flame speed( ) on the unit and Change Celsius ( hold until beep is heard and display flashes. (To revert back to Celsius to Fahrenheit ( repeat this action) Hold both Heat Button (...
  • Page 12: Warranty

    Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,...
  • Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
