Diivoo WT-01 - Automatic Water Timer Manual

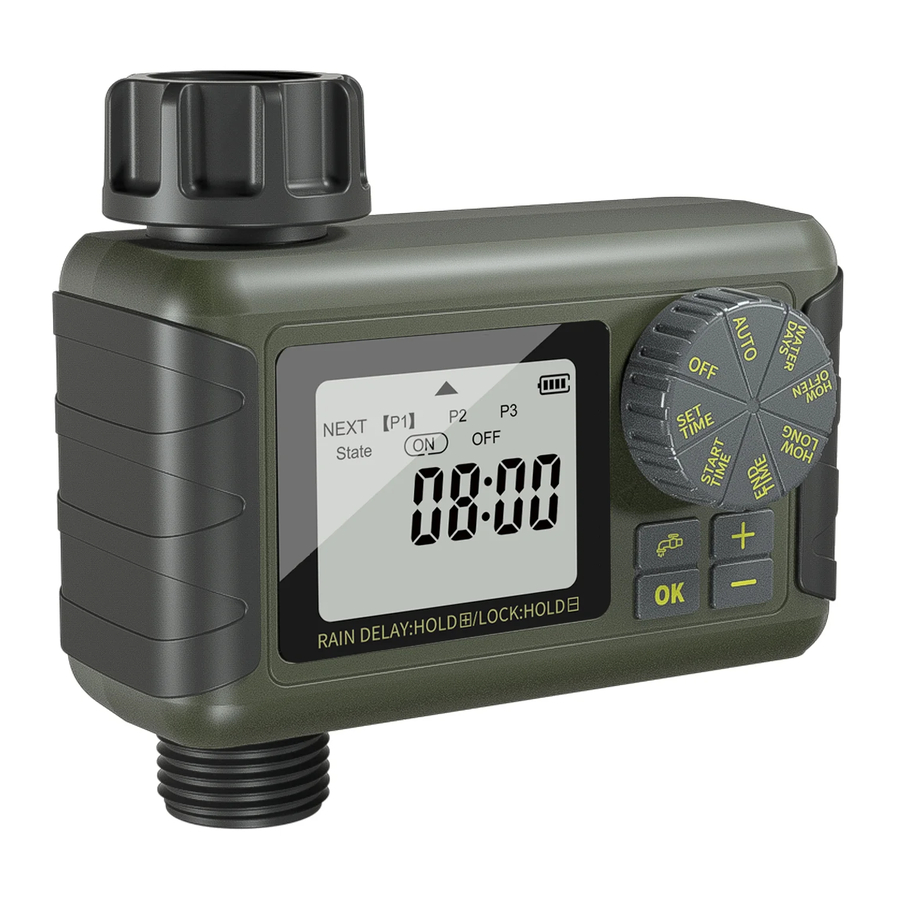

Product Appearance

Attention

• Please set the end time is later than start time.
• The start time of next schedule is the start time of last schedule plus one interval time and one watering time.
• Please make sure the timer is in AutoRun states when set Rain Delay or Children Lock.

Automatic Watering Program Setting

SET TIME

1. Turn dial to SET TIME
2. Press the "" to set the current hour and minute. Press "" to confirm.
3. Press the "" to set the current day of the week. Press "" or turn dial to save changes.

START TIME

1. Turn dial to START TIME
2. Press the "" to set the time to start watering. Press "" or turn dial to save changes.

END TIME

1. Turn dial to END TIME
2. Press the "" to set the time to end watering. Press "" or turn dial to save changes.

Note:
Please make sure the end time is later than start time.

HOW LONG

1. Turn dial to HOW LONG
2. Press the "" to select watering duration and press "" button or turn dial to save changes. Watering can be customized to run from 1 min to 23 hours 59 mins.

HOW OFTEN

1. Turn dial to HOW OFTEN
2. Press the "" to select your watering frequency. Press "" button or turn dial to save changes.
   The watering frequency ranging from 1min, 5min, 15min, 30min, 1H, 2H...... 23H

WATER DAY

1. Turn dial to WATER DAY
2. Press the "" to choose the days to watering. Press "" button or turn dial to save changes.

Note:

• The Water days can be cancelled when press "" button again if the day has been selected.
• The day will come with a【】if be selected.

AUTO

Turn dial to AUTO to allow your timer to water as you set the program before.

OFF

Turn dial to OFF, the screen shows OFF and the battery level.

All program are saved and the timer stop working.

Multi-Function

Manual

Please make sure the timer is in Auto Run state.

1. Press the "" and press "" to select watering duration from 1 min to 23 hours 59 mins.
2. Press "" button or no operation 5s, it will start to watering.

When you press the "" button again, the manual watering task ends even if it is watering and the timer will switch back to Auto mode.

Rain Delay

Please make sure the timer is in Auto Run state.

1. Hold and press "" button 5s until the appears on the screen.
2. Press "" button to set the duration of the delay from 1 to 7 days.
3. Press "" button or no operation 10s to save changes.

Note:

• All Auto program are on hold during the rain delay. If you want to cancel the Rain Delay, press "" button 5s again.
• Rain delay allows you to postpone watering for 1 day and up to 7 days.

Children Lock

Please make sure the timer is in Auto Run state.

Hold and press "" button 5s until the "" appears on the screen. If you want to cancel the "", press "" button 5s again.

Battery Installation

1. Remove the tray on the back of the timer by sliding or pulling it out.
2. Insert two AA (1.5V) alkaline batteries and replace the tray.

Note:

• Please do not insert rechargeable batteries to avoid low voltage.
• The display will turn on for 3 seconds when power on.
• The pump timer don't have programmable memory, it need to reset once power off.


Specification

Precautions

• Do not use your timer when the air temperature is below 40℉(4.5℃), the timers should be removed from the hose faucet and stored indoors to avoid potential frozen damage.

• Filter can trap dirt particles, please clean filter regularly and replace if worn.

• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Used up or dead batteries must be removed from the timer and disposed of properly.

• Please replace batteries when the low battery indicator appears the display. When replacing the power unit, please make sure that the water timer is dry.


FAQ

Q1: The LCD screen does not display anything when the batteries are installed.

A1: Two batteries loaded are new 1.5V AA alkaline batteries, make sure the batteries are properly placed in the battery box.

Q2: Water does not come on at preset time.

A2: Check if:

• Clock should be set to the correct time.
• Start time is set to desired the time.
• Rain Delay is on.
• OFF mode is on.
• The batteries are low.
• The faucet is turned off.

Q3: The hose tap connection/outlet leaks.

A3: Check if:

• The O-ring is connected correctly to the hose tap.
• The connection outlet or water pipe is broken.
• The faucet and water pipe has a different thread. If necessary, please use an appropriate adapter or PTFE tape.

Q4: Why is the water valve out of little water?

A4: If your are gravity feed system such as rain barrel system, then it won't work and will keep low water pressure. Gravity feed has no real pressure when dealing with a rain barrel. It needs pressure measuring.

After-sales Service

The timer have one year warranty, if you have any questions, please feel free to contact via support@diivoosmart.com

The following conditions are not included in the warranty:

• Problems occur due to its use for other purposes, or improper use or use of components not supplied by Diivoo.
• Damages caused by improper use, for example, wrong of power supply, artificial damage, etc.
