Summary of Contents for Accu-Sort RFR-02

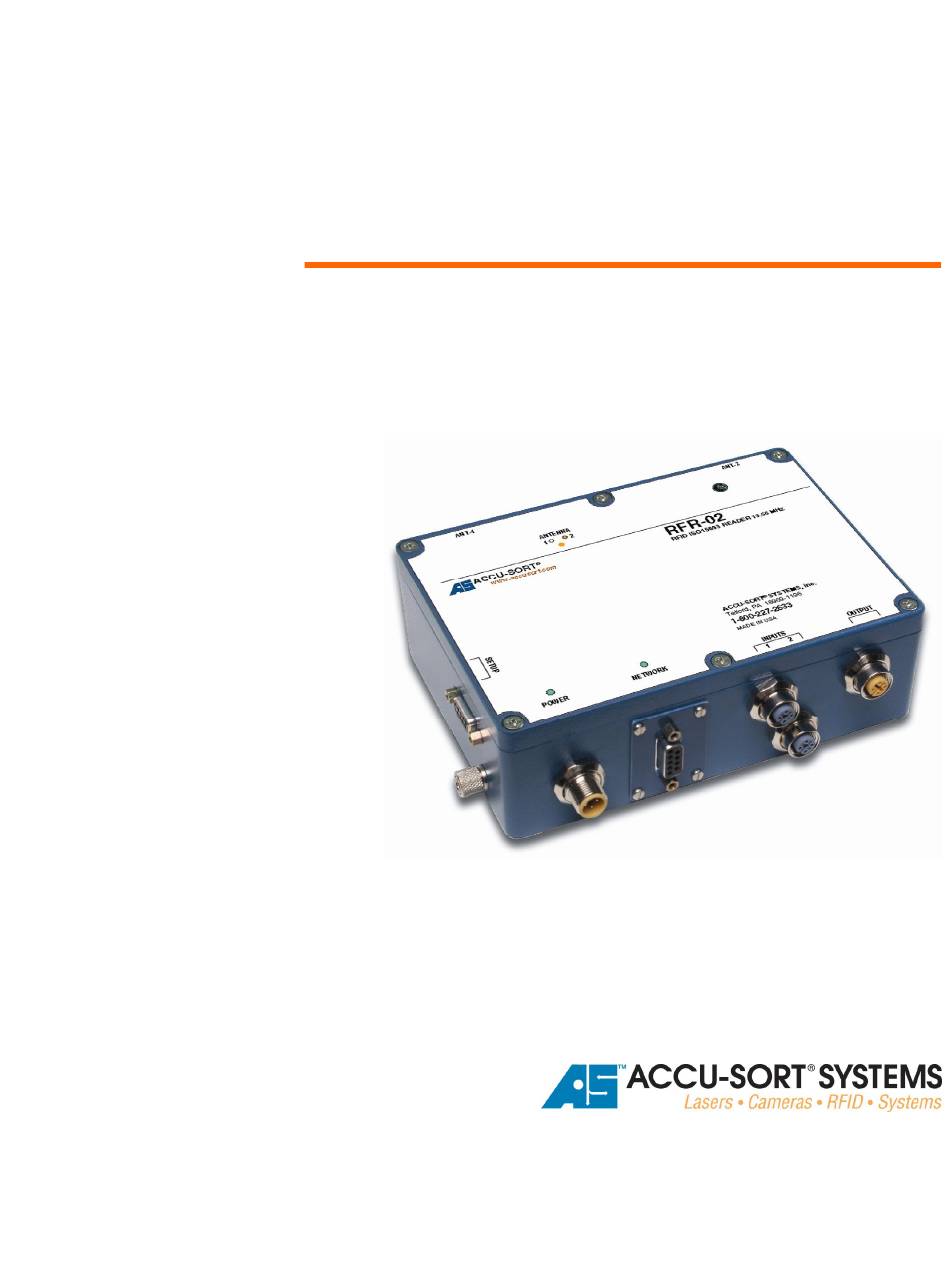

  • Page 1 RFR-02 Installation Guide...
  • Page 3 Accu-Sort cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Accu-Sort with respect to use of information, circuits, equipment, or software described in this manual. ®...
  • Page 4 RFR-02 Installation Guide Accu-Sort Systems, Inc.
  • Page 5: Table Of Contents

    RFR-02 Installation Guide Table of Contents Table of Contents RFR-02 ............................1 Installation Guide ........................1 Table of Contents ........................v Preface............................1 General Precautions........................1 Installation Notes........................1 Warnings............................ 1 Disclaimer ..........................1 Software Version........................1 Approvals ........................... 2 Product Specifications......................3 Physical Features........................3 Performance Features........................
  • Page 6 Trigger Mode Examples........................33 Serial Command Mode......................41 Serial Mode Commands ........................43 Serial Mode Read Rate Diagnostic Commands ..................57 Quick Reference Command Chart.................... 60 Using the RFR-02 Setup Program ..................61 Using the Software........................61 System Setup............................62 Reader Setup............................64 Upgrading the RFR-02 Firmware....................73 Timing for reading data from Tag .....................
  • Page 7: Rfr-02

    Do not apply power to the unit until all components are properly cabled and grounded. Installation Notes Only Accu-Sort System, Inc. employees or individuals that have been authorized by Accu-Sort Systems, Inc. should install this device. Warnings...
  • Page 8: Approvals

    Preface RFR-02 Installation Guide Approvals The RFR-02 Reader and its associated antennas and Power Supply is approved (or is pending) by the appropriate regulatory agencies.  FCC, Part 15    NOTE: This device complies with Part 15 of the FCC Rules.
  • Page 9: Product Specifications

    RFR-02 Installation Guide Product Specifications Product Specifications Physical Features Enclosure  Cast Aluminum Size  Length: 6.67”  Width: 4.70”  Height: 2.10” Cabling  App. Specific (does not contribute to length, height or width) Mounting  See Mounting Instructions Visual Diagnostics ...
  • Page 10: Performance Features

    Preface RFR-02 Installation Guide Performance Features Ambient Temp. Range 0 – 50 C  Read Rate  300 bytes/sec @ 9600  600 bytes/sec @ 57600 Serial Interfaces  RS232 (Setup)  RS232/422 (Host Comm)  2 Trigger inputs ...
  • Page 11: Wiring And Cable Pin Diagrams

    RFR-02 Installation Guide Product Specifications Wiring and Cable Pin Diagrams 1. See Setup Port 2. See RS232/422 Port 3. See Power Connector 4. See Input1 Connector 5. See Input2 Connector 6. See Output Connector 7. Antenna1 Port 8. Antenna2 Port...
  • Page 12: Setup Port (Db9 Female)

    Preface RFR-02 Installation Guide 1. Setup Port (DB9 FEMALE) 1. NC (not connected) 2. Reader TX (232) 3. Reader RX (232) 4. NC 5. GND (ground) 6-9. NC Pin3 – Reader RX Pin2 – Reader TX Pin1 – N/C Pin5 - Ground Pin6 –...
  • Page 13: Rs232/Rs422 Communications Port (Db9 Female)

    RFR-02 Installation Guide Product Specifications 2. RS232/RS422 Communications Port (DB9 FEMALE) 1. 422 Isolated GND 2. Reader TX (232) 3. Reader RX (232) 4. NC 5. 232 GND 6. Reader SD- (422) 7. Reader SD+ (422) 8. Reader RD- (422) 9.
  • Page 14: Power Connector (Turck 4 Pin Male Eurofast # Fsfd4.4-0.5)

    Preface RFR-02 Installation Guide 3. Power Connector (Turck 4 Pin Male EuroFast # FSFD4.4-0.5) 1. VDD+ 2. VDD- 3. Safety/Chassis Ground 4. NC Pin1 – VDD+ Pin4 – N/C Pin2 – VDD- Pin 3 – Safety Ground 4. Trigger Input 1 (Upper Connector – Turck 5 Pin Female Eurofast #FKFDW4.5-0.5)
  • Page 15: Trigger Input

    RFR-02 Installation Guide Product Specifications 5. Trigger Input 2 (Lower Connector – Turck 5 Pin Female Eurofast #FKFDW4.5-0.5) 1. Non-Isolated (Active Low, Internally pulled to +5VDC) 2. +12VDC 3. Optically Isolated + 4. GND 5. Optically Isolated – Pin 1 – Non-Isolated Pin4 –...
  • Page 16: Antenna 1 Port (Bnc Female)

    Preface RFR-02 Installation Guide 7. Antenna 1 Port (BNC Female) 1. 13.56Mhz Signal 8. Antenna 2 Port (BNC Female) 2. 13.56Mhz Signal Accu-Sort Systems, Inc.
  • Page 17: Installation Requirements

    RFR-02 Installation Guide Installation Requirements Installation Requirements Power There are 2 supply voltage options available for the RFR-02.  12 Volt ( RFR-02 Part # 1000052365 ) Use only Accu-Sort supplied Power Supply part # 1000052837. Failure to use an AccuSort approved Power supply will void the product warranty.
  • Page 18: Inputs 1 And 2

    RFR-02 Installation Guide Installation Requirements Inputs 1 and 2 Two optically isolated inputs or two non-isolated inputs are available. When using isolated inputs user must supply both positive and negative voltage references. When using non isolated inputs user must connect to sink output of trigger device (active low). A current...
  • Page 19 RFR-02 Installation Guide Installation Requirements Reader Mounting Dimensions (Extracted from drawing #106103, rev01) Accu-Sort Systems, Inc.
  • Page 20 RFR-02 Installation Guide Installation Requirements Accu-Sort Systems, Inc.
