S A F E T Y F I R S T
This product must be installed
by a qualified electrician.
P L E A S E N O T E !
Please only use suitable wires
for each terminal, high voltage -
1.5mm², control - 0.5mm².
Remember maximum load is
1400W
(6A).
L O A D
Compatible with different types
of loads: Incandescent, Halogen
230V and 12V globs, CFL
globes, all LED lights, as well as
electric motors and some
electric home appliances.
PO Box 353
Rosanna, Victoria
3084
Australia
Digital Home Systems Pty Ltd
Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

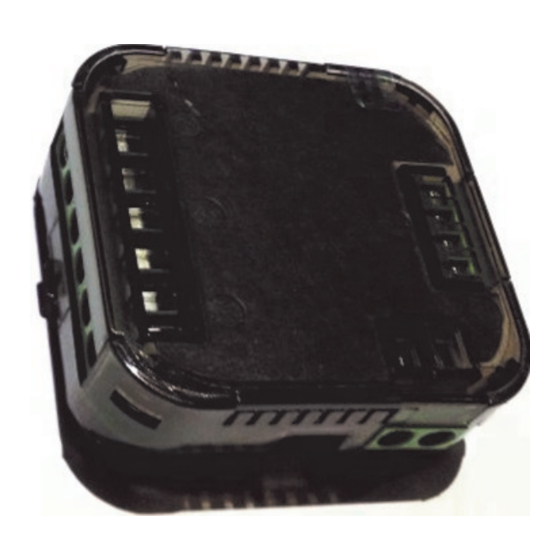

DHS Z-Wave In-Wall Double Switch
DHS-ZW-SWIW-01
1. Wiring the device

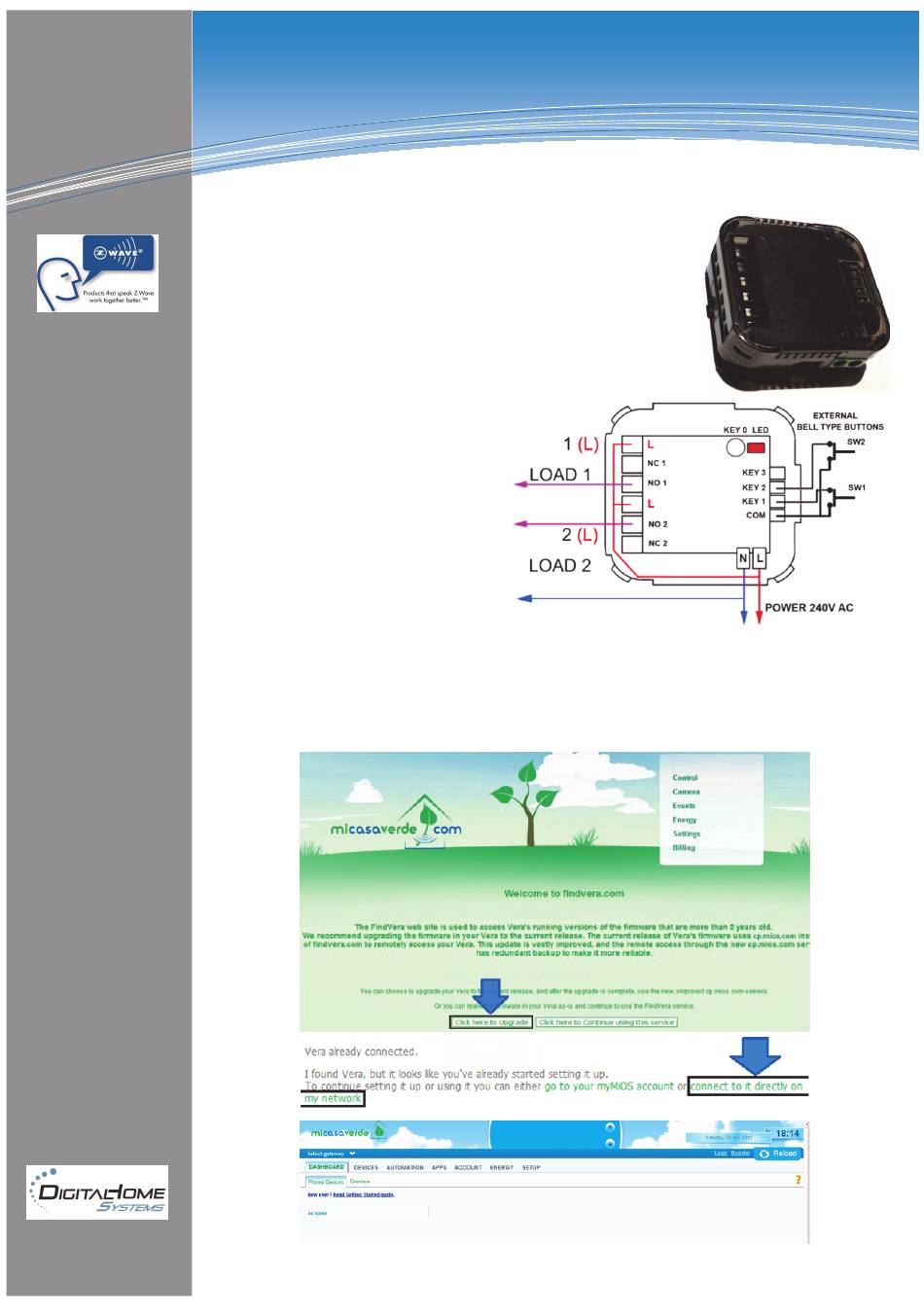

1.1 Refer to wiring diagram, connect the mains wires
and control wires with single or double button as
shown.
1.2 When the DHS-ZW-DMIW-03 is wired correctly
and has a power check for operation, press the
button which you connected earlier, check if the
light turns ON and OFF.
2. Configuring the device
Note: Before including the product to your Z-Wave network it is advised to perform a removal procedure to reset the device's
network settings.
1
Advertisement
Table of Contents
Related Manuals for Digital Home Systems Mi Casa Verde Vera 2
Summary of Contents for Digital Home Systems Mi Casa Verde Vera 2
- Page 1 Digital Home Systems Pty Ltd Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5) DHS Z-Wave In-Wall Double Switch DHS-ZW-SWIW-01 1. Wiring the device 1.1 Refer to wiring diagram, connect the mains wires and control wires with single or double button as S A F E T Y F I R S T shown.
- Page 2 Digital Home Systems Pty Ltd Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5) 2.2 Exclusion from Z-Wave home network 2.2.1 Press the Z-Wave button on the Vera for at least 7 sec and release, the Z-Wave LED will start to flash fast, check the system interface for the following message: 2.2.2 Press one of the buttons wired to the DHS-ZW-SWIW-01, the Z-Wave LED on the Vera will flash quickly for a couple...
- Page 3 Digital Home Systems Pty Ltd Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5) Note: After adding a new device go to ‘SETUP/Z Wave Settings’, choose ‘Repair’, set preferable settings and press ’Go’. This action will check and build a mash communication system between all new and old devices.
- Page 4 Digital Home Systems Pty Ltd Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5) 2.6 How to build a scene 2.6.1 Go to ‘AUTOMATION/New scene’, you will see a screen with all your devices. Choose which device will be triggered and what it’s state should change to when the scene is on (for example the ‘Corner Light’...
- Page 5 TRADEMARKS All trademarks and registered trademarks are the property of their respective owners or companies. DHS One (1) Year Limited Warranty Digital Home Systems Pty Ltd warranty this DHS branded hardware product against defects in materials and workmanship under normal use for period of one (1) year from the date of retails purchase by the original end user purchaser (‘Warranty Period’).
