Digital Home Systems Mi Casa Verde Vera 2 Integration Manual

S A F E T Y F I R S T
This product must be installed
by a qualified electrician.
P L E A S E N O T E !
Please only use suitable wires
for each terminal, high voltage -
1.5mm², control - 0.5mm².
Remember maximum load is
1400W (6A).
L O A D
Compatible with different type of
load: Incandescent, Halogen
230V and 12V globs, CFL
globes, all LED lights, as well as
electric motors and some
electric home appliances.
PO Box 353
Rosanna, Victoria
3084
Australia
Digital Home Systems Pty Ltd
Integration Manual for Mi Casa Verde Vera 2/3/Lite (UI5)

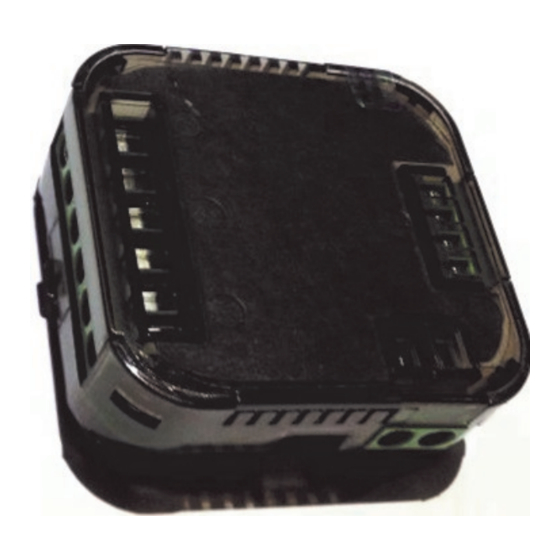

DHS Z-Wave In-Wall Single Switch
DHS-ZW-SWIW-03
1. Wiring the device
1.1 Refer to the wiring diagram, connect the mains wires and
control wires with single button as shown.
1.2 When the DHS-ZW-SWIW-03 is wired correctly and has
power check for operation, press the button which you
connected early, check if the light goes ON and OFF.
2. Configuring the device
Note: Before including the product to your Z-Wave network it is advised to perform a removal procedure to reset the device's
network settings.
2.1 Log in to your system, type the IP of your Vera in your browser. Alternatively, if you have internet connection you can
go to https://findvera.com/ and follow the instructions.
1
