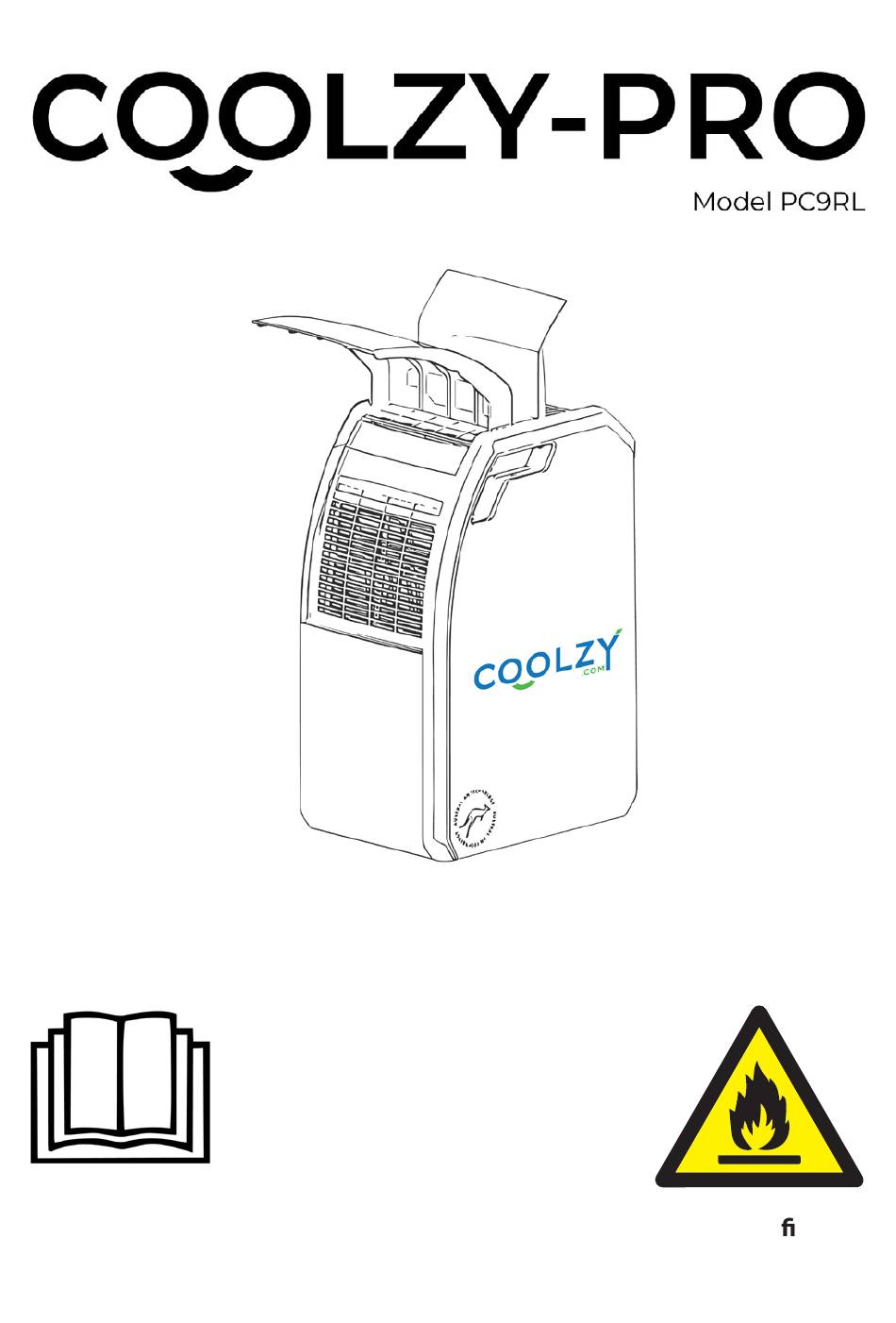

Coolzy products are distributed in the European Union and UK by Close Comfort International
Pte Ltd, Singapore, UEN 201527973E.
USER GUIDE AND WARRANTY
This product contains a small amount of
R290 refrigerant with negligible global
warming impact. The refrigerant is flamma-
ble. Read the safety precautions first!
Avoid using this product in a wet environ-
ment. Ensure that anyone using this prod-
uct is aware of normal safety precautions
Caution
for household electric appliances.
Risk of re
COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1
1
Advertisement
Table of Contents
Related Manuals for COOLZY COOLZY-PRO PC9RL
Summary of Contents for COOLZY COOLZY-PRO PC9RL
- Page 1 Coolzy products are distributed in the European Union and UK by Close Comfort International Pte Ltd, Singapore, UEN 201527973E. USER GUIDE AND WARRANTY This product contains a small amount of R290 refrigerant with negligible global warming impact. The refrigerant is flamma- ble.
- Page 2 PARTS COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1...
- Page 3 0.5 °C after half an hour and 2 °C after closer to the set temperature. 2 hours. 3) When you turn off the unit, the sleep function will be cancelled automatically. COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1...
-
Page 4: Getting Started
Failing to do so may damage the unit. 1) After removing Coolzy from the box, place it in an upright position. 2) Remove the cable from the drawer at the back of the unit and insert the plug into a wall outlet. - Page 5 This will allow some of the condensed water to collect in the drawer. When the cable drawer is full, the white water drop indicator comes on and Coolzy will pause. Carefully remove the cable drawer and empty the water. The cable drawer can store about two litres of condensed water.
-
Page 6: Adjustable Nozzle
• Adjust the angle of the cool air deflector to ensure that cool air flows past face and neck. Adjust nozzle to about 45° for best cooling effect. • Turn off fans when using Coolzy. Drafts from nearby windows and fans may dis- rupt the air jet. -
Page 7: User Maintenance
The refrigerant circuit is permanently welded: there is no need to recharge the gas. INDICATOR LIGHTS Power (green light) This shows that the electrical power is on. When the green light flashes, Coolzy is waiting 1 – 2 minutes for the compressor to start cooling. Water drop (white light) In normal conditions, all the water condensed inside the cooler will evaporate into the air emerging from the warm air outlet. -
Page 8: Troubleshooting
If the green light is on and the fan is running, and there is no apparent cooling after 2 minutes, check that Coolzy is in cooling mode. Press the ‘FUNC’ button on the remote until the snowflake icon appears to activate cooling mode. Reduce the temperature setting because the thermostat may be preventing the compressor from starting. - Page 9 A slight temperature increase can occur in a small room, especially if the windows are closed. The setup instructions show how to minimize this effect. Visit www.coolzy. com for more suggestions to improve ventilation. Symptom 5 – Gradual loss of cooling Dust accumulating on the air filters will reduce the cooling.
-
Page 10: Specifications
† Drawer can optionally be used to collect condensed water. ‡ Apparent noise level in bedroom, depends on fan speed and furnishings. Fuse parameters of the machine Type: 5ET or SMT Voltage: 250V Current: 3.15 A COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1... -
Page 11: Warranty Exclusions
Comfort’s option at no charge to the purchaser for parts or direct repair labour. The purchaser must return the product(s) to an authorized Coolzy dealer or agent for warranty repairs. Home service is not provided. The purchaser is responsible for all transportation costs and in-transit insurance associated with returning the device to the authorized repair centre. -
Page 12: Owner Responsibilities
3. If the product(s) were purchased directly from Close Comfort, report the defect and provide a detailed description with photos, sound recording or video if possible. Email these details to contact@coolzy.com, or use the contact form at https://www. coolzy.com/. 4. Once acknowledgment is received, follow Close Comfort’s instructions on prepar- ing to return and sending unit for warranty evaluation. -
Page 13: Safety Precautions
1.5 minutes as a further precaution to protect the compressor. The peak current needed by this appliance can be as high as 7 amps at the instant of starting the compressor. Using an extension cord or unreliable electrical connectors COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1... - Page 14 Remove the batteries from the remote control before disposal and place them in an appropriate battery recycling bin. Make sure you comply with national regulations for refrigerant disposal. COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1...
-
Page 15: Electrical Supply
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment must be available. Have a dry powder or CO2 fire extinguisher adjacent to the charging area. COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1... - Page 16 • That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; • That there no live electrical components and wiring are exposed while charging, recov- ering or purging the system; • That there is continuity of earth bonding. COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1...
-
Page 17: Repairs To Sealed Components
(2.1% for R290 propane) and shall be calibrated for the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1... -
Page 18: Removal And Evacuation
Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1... - Page 19 Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1...
- Page 20 Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely. COOLZY-PRO Model PC9RL User Guide EN2022 Rev1.1...
