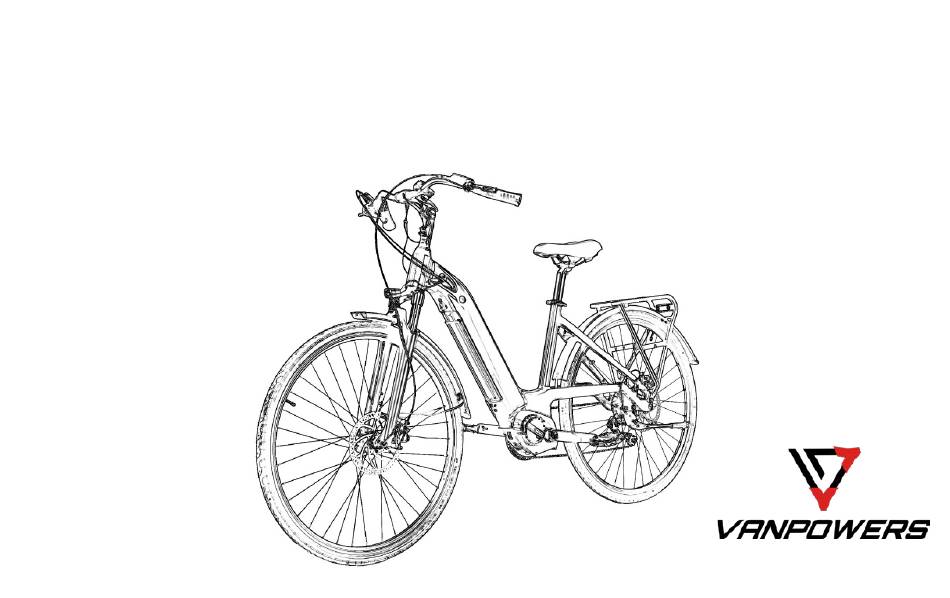

THE Seine
USER MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for VANPOWERS THE Seine

  • Page 1: General Warning

    THE Seine USER MANUAL...

  • Page 2: Table Of Contents

    Contents Contacting Vanpowers …………………………………………………………………… 2 General Warning ……………………………………………………………………………… 3 Dimensions ……………………………………………………………………………………… 6 Package Contents …………………………………………………………………………… 7 Assembly Guide STEP 1: Mount the front fender ……………………………………………………10 STEP 2: Mount the front wheel ……………………………………………………11 STEP 3: Mount the basket and front light ………………………………………13 STEP 4: Mount the stem and handlebar ………………………………………15...

  • Page 3: Contacting Vanpowers

    Contacting Vanpowers Vanpowers Bike USA Vanpowers Bike Service Center 1120 US-22 BRIDGEWATER TOWNSHIP, NJ 08807, USA 1 (800) 819-5929 service@vanpowers.bike www.vanpowers.bike UK Authorized Representative HAIWAI CONSULTING LTD 113, Gloucester Place, Fly, London, England, W1U 6JR haiwaiconsultingltd@gmail.com 07988167885 Mega Power | At Ease...

  • Page 4: Dimensions

    Dimensions Let’s get into the bike’s geometry. Choosing the right size can guarantee safety and comfort when riding your electric bike. Please seek professional help if you are not sure which size fits you well. Frame Size 17.7 inches (45CM) Suggested Rider Height 5’5”–6’3"...

  • Page 5: Package Contents

    Check the entire box and make sure every single part is present. Please open all the boxes, gently take out the parts, and check all the contents according to the information on Pages 8–9. In the case of any missing or damaged parts, please contact Vanpowers Bike Service Center.
  • Page 6 Accessories Box Bell Charger Pedals Front Reflector Cable Ties Rear Reflector...
  • Page 7 Accessories Box 0.12-inch (3 mm) Allen Key 0.12-inch (3 mm) Allen Key 0.16-inch (4 mm) Allen Key 0.2-inch (5 mm) Allen Key 0.24-inch (6 mm) Long Allen Key 0.32-inch (8 mm) Long Allen Key 8-10 open-end Wrench 13-15 open-end Wrench Phillips Screwdriver...

  • Page 8: Assembly Guide

    Assembly Guide 0.2-inch (5 mm) STEP 1: Mount the front fender Allen Key 8-10 open-end 1. Remove the bolts on the fork with 4 wrench mm and 5 mm Allen keys and 8-10 Figure 1. open-end wrench, as shown in Figure 1. 0.16-inch (4 mm) Allen Key 2.

  • Page 9: Step 2: Mount The Front Wheel

    Assembly Guide STEP 2: Mount the front wheel 1. Remove the quick release lever from in quick release lever between the forks. 2. Mount the front wheel on the fork, then insert the quick release lever on the same side as the brake rotor, as shown in Figure 3.
  • Page 10 Assembly Guide 3. Tighten the quick release lever clockwise. Adjust the direction of the quick release handle direction of the lever to the position as shown in Figure 4. after tightening rotor Tips: Figure 4. • Test the tension by opening the lever again. If it is easy to open, tighten the quick release lever further and try again.

  • Page 11: Step 3: Mount The Basket And Front Light

    Assembly Guide STEP 3: Mount the basket and front light 0.2-inch (5 mm) Allen Key 1. Remove the 4 bolts on the head tube with the 5 mm Allen key, as shown in Figure 5. Figure 5. 0.2-inch (5 mm) 2.
  • Page 12 Assembly Guide 0.16-inch (4 mm) Allen Key 3. Remove the bolts on the basket with the 4 mm Allen key, as shown in Figure 7. Figure 7. 0.16-inch (4 mm) 4. Take off the front light that is tied on the front light Allen Key frame and mount it on the basket with 4 mm...

  • Page 13: Step 4: Mount The Stem And Handlebar

    Assembly Guide bolt top cap STEP 4: Mount the stem and handlebar alloy-sleeve take out and 1. Remove the bolt on the fork with the 5 mm discard Allen key, then take off the top cap and alloy- sleeve and discard them, as shown in Figure 9. Figure 9.
  • Page 14 Assembly Guide 0.2-inch (5 mm) Allen Key 3. Slide the handlebars onto the stem, angle the handlebars up/down, use the 5 mm Allen key to tighten the stem bolt down inside the tube, as shown in Figure 11. Figure 11. horizontal 4.

  • Page 15: Step 5: Connect The Display

    Assembly Guide 5. Use the 4 mm Allen key to alternately tighten 2 bolts the 2 bolts on the side of the handlebar stem 0.16-inch (4 mm) until fully locked, as shown in Figure 13. Allen Key Figure 13. display button cable STEP 5: Connect the display (already connected) display...

  • Page 16: Step 6: Mount The Seat/Bell/Front And Rear Reflectors

    Assembly Guide STEP 6: Mount the seat/bell/front and rear reflectors 1. Adjust the seat so that it is at a comfortable height, and make sure the seat is pointing Figure 15. towards and perpendicular to the handlebars. front reflector 2. Take out the bell/front reflector/rear reflector and Phillips screwdriver from the accessories box.

  • Page 17: Step 7: Mount The Pedals

    Assembly Guide 3. Fix the red rear reflector to the seat post， as shown in Figure 17. Rear Reflector Figura 17. STEP 7: Mount the pedals 1. Check the end cap on both pedals and find the letter L on the left pedal and the letter R on the right pedal.

  • Page 18: Step 8: Remove The Key

    Assembly Guide 2. Mount the left pedal on the left crank and tighten counterclockwise with the 15 mm end of a 13-15 open-end wrench. Mount the right pedal on the right crank and tighten clockwise with the 15 mm end of a 13-15 open-end counterclockwise clockwise wrench.
