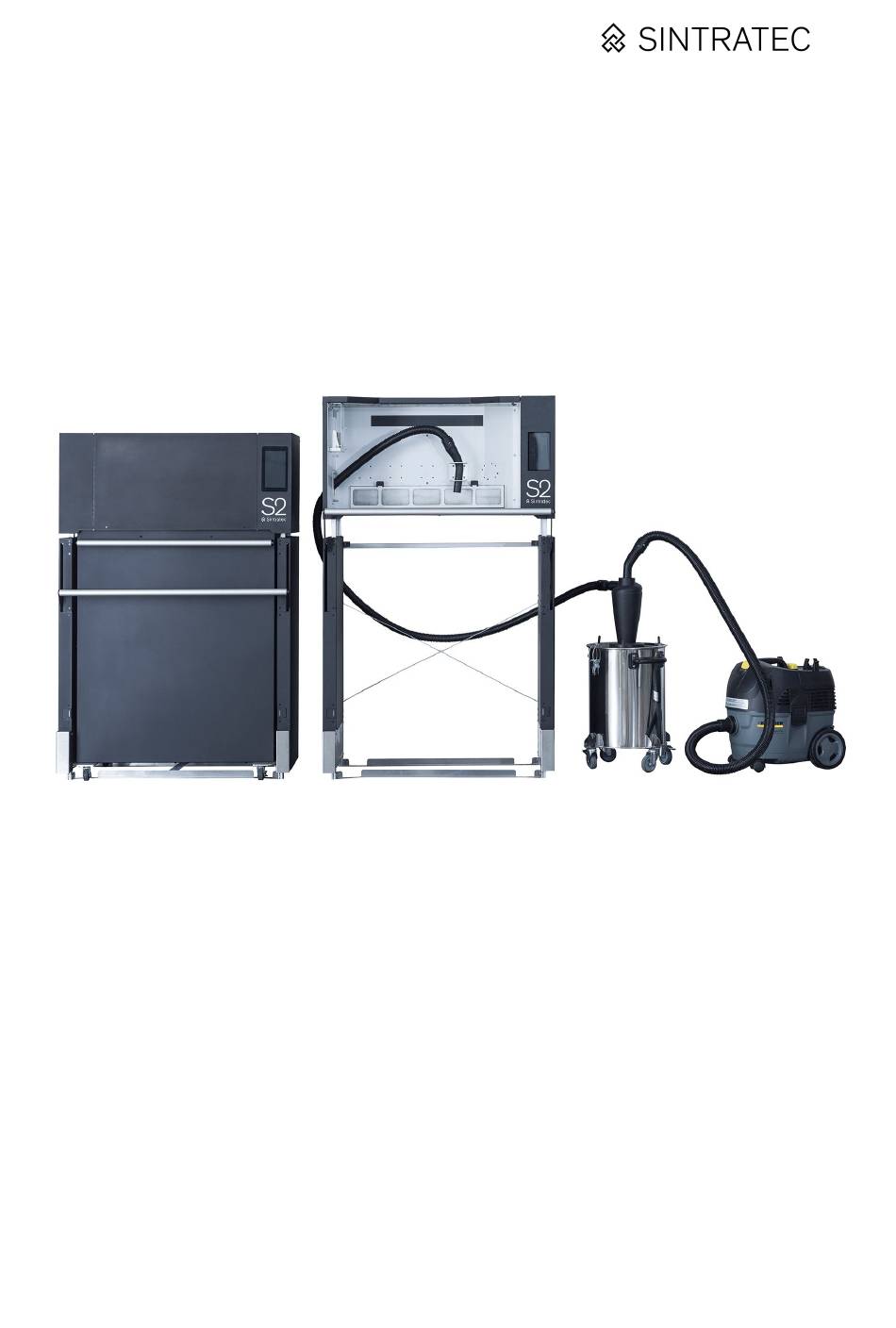

- Page 1 Sintratec S2 Cell filter replacement 1 / 6 Sintratec S 2...
- Page 2 We reserve the right to make technical changes necessary for improving the device properties which may result in deviations from the illustrations and information contained in this manual. All copyrights and intellectual property rights covering this device as well as all relevant documentation remain the property of Sintratec AG. All rights reserved. ...
-
Page 3: Required Tools
Safety This manual is intended for the owner and skilled persons. It contains important instructions for the operation and safety instructions additional to the associated S intratec S2 Operating Manual . Required Tools description picture quantity Screwdriver T20 ... - Page 4 Instructions figure procedure 1. Turn off the S2-MHS system. 2. Remove the filter cover by loosening the M5x8 screws (3x) with screwdriver Hex 3. 3. Remove both filter matts 4. Replace the hinge screws with the ...
- Page 5 NOTE Direction of flow Make sure that the filter is inserted correctly in the direction of flow. 6. Insert the cell filter in flow direction 5 / 6 Sintratec S 2...
- Page 6 7. Close the filter cover 8. The Material Handling Station (MHS) is now ready to use again. ✔ 6 / 6 Sintratec S 2...
