Keep this instruction sheet for future reference, as it contains important information.
Keep this instruction sheet for future reference, as it contains important information.
Tool required for assembly: Phillips screwdriver (not included).
Tool required for assembly: Phillips screwdriver (not included).
Water is needed to fill the base for outdoor use.
Water is needed to fill the base for outdoor use.
IMPORTANT! Rim height should be adjusted only by an adult.
IMPORTANT!
Product features and decoration may vary from the photograph above.
Product features and decoration may vary from the photograph above.
Adult assembly is required.
Adult assembly is required.
This toy can be used indoors or outdoors.
This toy can be used indoors or outdoors.
Rim height should be adjusted only by an adult.
fisher-price.com
fisher-price.com
DTM18
DTM18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTM18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fisher-Price DTM18

  • Page 1 DTM18 DTM18 Product features and decoration may vary from the photograph above. Product features and decoration may vary from the photograph above. Keep this instruction sheet for future reference, as it contains important information. Keep this instruction sheet for future reference, as it contains important information.
  • Page 2 Consumer Information CONSUMER ASSISTANCE 1-800-432-5437 (US & Canada) 1300 135 312 (Australia) Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers: 1-800-382-7470. Outside the United States: Canada: Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2; www.service.mattel.com.

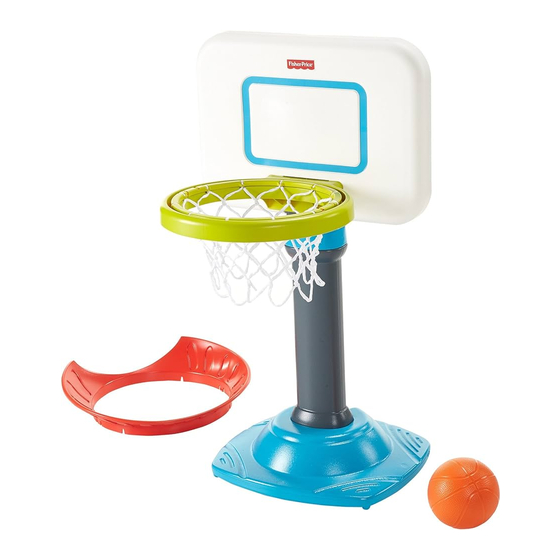

  • Page 3 Assembled Parts Hint: Some parts were placed inside the lower post for shipping. Net/Ring Assembly Backboard Sure Score™ Rim Upper Post Lower Post #6 x ½" (1,3 cm) Screw - 4 Base #8 x ¾" (1,9 cm) Screw - 4 Note: Label sheet not shown.
  • Page 4 Assembly CAUTION Ring This package contains small parts. For adult assembly only. Backboard Ring Tab • Place the loops at the top of the net into the grooves on the ring. • Pull each loop through a ring tab, as shown. Label Rectangular Tabs Net Assembly...
  • Page 5 Assembly Lower Post Base • While holding the ring assembly and rim together, turn them over. • Insert four #6 x ½" (1,3 cm) screws into the holes in the rim, making sure each hole in the rim is still aligned with each screw hole in the •...
  • Page 6 Assembly Backboard Upper Post Rim Assembly Latch Lower Post • Attach the rim assembly and backboard to the upper post. • Flip down the latch on the lower post. • Insert the upper post into the lower post. • Insert four #8 x ¾" (1,9 cm) screws into the holes on the back side of the backboard.
  • Page 7 Assembly Adjusting the Rim Height Sure Score™ Rim IMPORTANT! Rim height should only be adjusted by an adult. Also, make sure children are not standing below the rim when adjusting the rim height. Rim Assembly Upper Post Groove Latch Lower Post •...
  • Page 8 Let’s Play! Storage • Sure Score™ rim guides the ball to the basket. • Press the tabs on the bottom of the rim assembly to remove the Sure Score™ rim. • Store the Sure Score™ rim behind the backboard. • Remove the Sure Score™ rim to add more challenge!
