Sharp R-1210TYA Supplemental Service Manual page 3

R-1214TYA
#1(+)
#1(N)
#3(L) #2(-)
SW UNIT
V1 V3 V7 V5

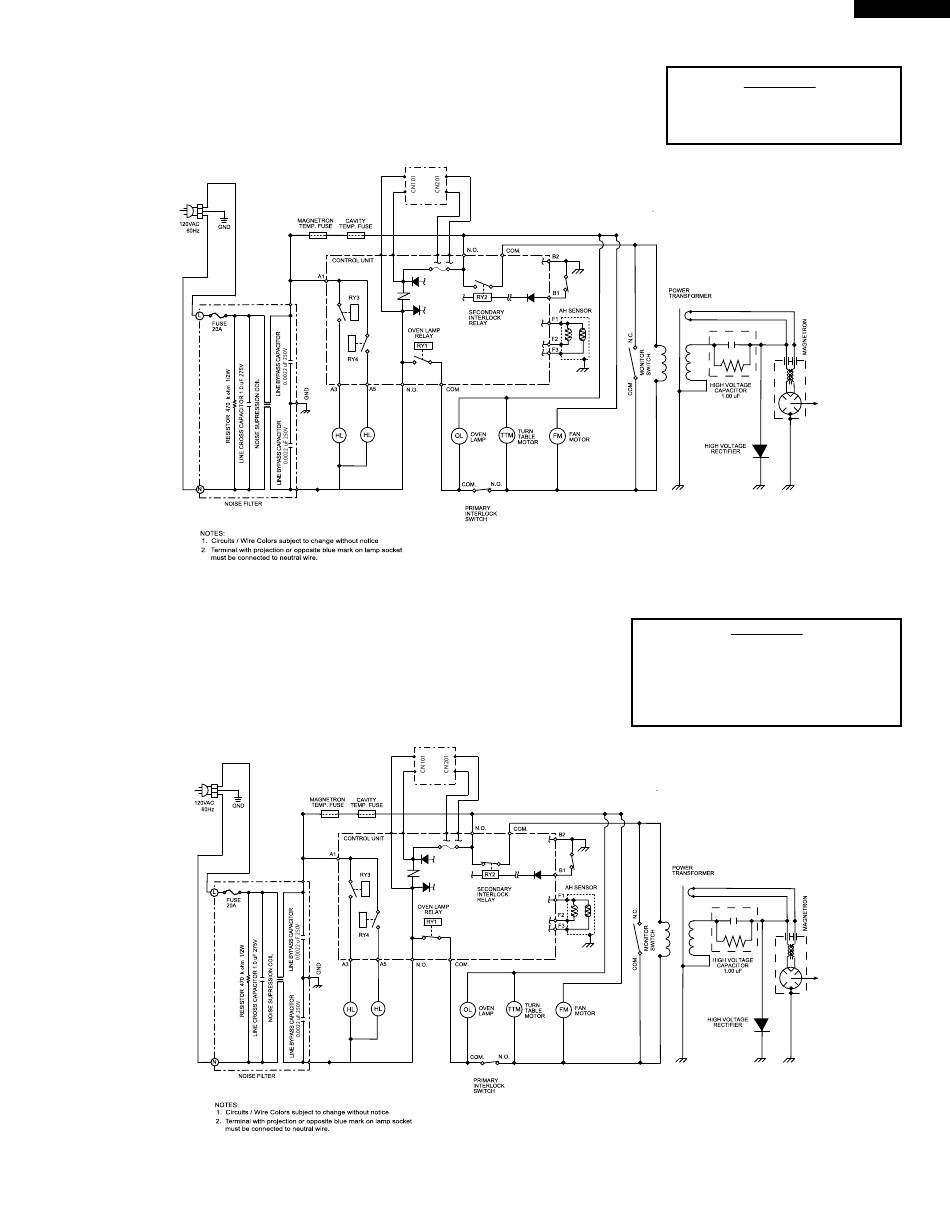

Oven Schematic-Off Condition
#1(+)
#1(N)
#3(L) #2(-)
SW UNIT
V1 V3 V7 V5
Oven Schematic-Cooking Condition
3
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. CLOCK APPEARS ON DISPLAY.
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. COOKING TIME PROGRAMMED.
3. VARIABLE COOKING CONTROL "HIGH".
4. "START" BUTTON PRESSED.
R-1210TYA
R-1211TYA
