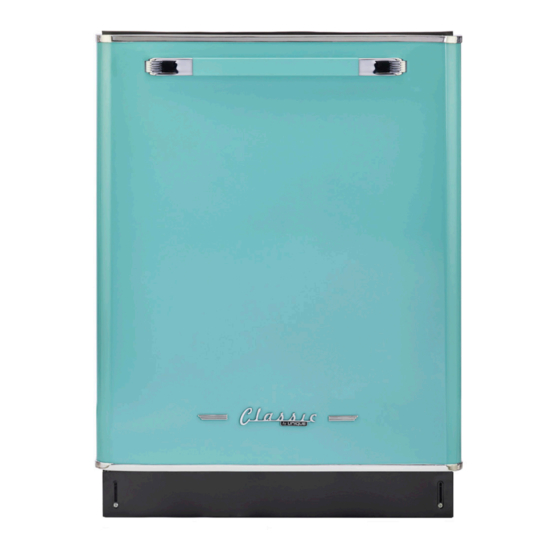

- Page 1 CLASSIC RETRO BY UNIQUE 24” DISHWASHER MODEL NUMBER: UGP-24CR DW T, UGP-24CR DW B, UGP-24CR DW LG, UGP-24CR DW W USER MANUAL serial number: E219644 NOV22V1 6JA4...
-
Page 2: Important Safety Instructions
MANUFACTURED & CERTIFIED BY Unique Appliances Ltd IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator. -
Page 3: Important Safety Notes
IMPORTANT SAFETY NOTES WARNING-DANGER Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death. • Never allow children to play with, operate, or crawl inside the dishwasher. • If a component part is damaged, it must be replaced by the manufacturer, its service agent, or similar qualified persons in order to avoid a hazard. -
Page 4: Before Using Your Dishwasher
BEFORE USING YOUR DISHWASHER WARNING HAVE THIS DISHWASHER IS TO BE INSTALLED BY A QUALIFIED INSTALLER. Improper installation, adjustment, alteration or maintenance can cause injury or property damage. Consult a qualified installer or service agency. It must be properly positioned and installed as described in this manual, so read the manual carefully. -
Page 5: Main Components
Main Components Interior lights Top rack Wine glass shelf Adjustable upper rack Upper spray, vortexwash arm Tub gasket Silverware basket Spray, vortex wash arm Bottom rack Heating element Rinse aid dispenser Detergent dispenser... -
Page 6: About Your Dishwasher
ABOUT YOUR DISHWASHER Understanding your dishwasher's features How your dishwasher cleans The dishwasher fills with water, covering the filter area at the bottom. Water is then pumped through the various filter and spray arms, spraying a mixture of hot water and detergent against the soiled surfaces of your dishes and silverware. -
Page 7: Using Your Dishwasher
USING YOUR DISHWASHER Using the control panel Your dishwasher's control panel is located on the top edge of the door. The door must be opened to make settings and operate the dishwasher. Cycles Select a cycle based on the type of dishes to be washed and the level of soil on the dishes. - Page 8 USING YOUR DISHWASHER Using the control panel Options can add enhancements to the cycle selected. 7 - DISPLAY-Shows the remaining hours and minutes of the current cycle, delay hours remaining, and error codes (see "Error codes" on page 20). 8 - Rinse Aid-Turns on when you need to add rinse aid. 9 - Sanitized-Turns on when a sanitized cycle is finished.
-
Page 9: Basic Operation
USING YOUR DISHWASHER Options 12 - HEATED DRY- Use to heat-dry your dishes. This function is not available for rinse only cycle. 13 - SANITIZE- Use to sanitize your dishes and glassware. Maintains the water temperature at 158° F (70° C) max., and is available with the AUTO, NORMAL, and HEAVY cycles. Notes: •Certified residential dishwashers are not intended for licensed food establishments. -
Page 10: Loading The Top Rack
USING YOUR DISHWASHER Loading the top rack You can place the items in the top rack randomly or in an orderly fashion. The image below shows how to load the top rack for 14 place settings: Large spoons Knives Small spoons Small forks Forks Spoons... -
Page 11: Loading The Upper Rack
USING YOUR DISHWASHER Loading the upper rack The upper rack is designed for cups, glasses, small plates, bowls, and plastic items marked dishwasher-safe. For best results, place the items with the soiled surface facing down or toward the center. Tilt them slightly for better drainage. Notes: Make sure the loaded dishes do not interfere with the rotation of the middle spray arm, which is located just below the upper rack. -
Page 12: Loading The Silverware Basket
USING YOUR DISHWASHER Loading the silverware basket The silverware basket is divided into three separate sections, which can be placed in either the upper or lower racks. Forks and salad forks Spoons Forks and salad forks Knives Large forks Large spoons Large forks Knives CAUTION: Make sure that nothing protrudes through the... -
Page 13: Filling The Detergent Dispenser
USING YOUR DISHWASHER Filling the detergent dispenser Push the detergent dispenser cover latch downwards cover latch downwards to open the detergent cup. Open detergent cup Add detergent (dry powder, liquid, or packets) to the cup. Close the detergent dispenser cover. The amount of detergent required depends on the cycle selected and the soil level on the dishes. -
Page 14: Filling The Rinse Aid Dispenser
USING YOUR DISHWASHER Filling the rinse aid dispenser Your dishwasher is designed to use a liquid rinse aid. The use of rinse aid greatly improves drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month. -
Page 15: Factors Affecting Performance
FACTORS AFFECTING PERFORMANCE Using rinse aid Rinse aid greatly improves drying and reduces water spots and filming. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. In addition, the heated dry option will not perform as well without rinse aid. The rinse aid dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. - Page 16 FACTORS AFFECTING PERFORMANCE Caution TO AVOID BURN INJURY: Allow the heating element to cool before attempting to clean the interior of your dishwasher. Cleaning the stainless steel panel Clean the stainless steel door and handle regularly with a soft cloth and standard household cleaner to remove the debris.
- Page 17 FACTORS AFFECTING PERFORMANCE Rotate the cylinder filter, then lift it out. Lift the fine filter from the bottom of the tub. Take out the fabric filter.
- Page 18 FACTORS AFFECTING PERFORMANCE Flush the filters by holding them under running water. Replace the fabric filter. Replace the fine filter. Replace the cylinder filter. Replace the bottom rack. Cleaning the door and tub gaskets Clean the door gasket with a damp cloth to remove food particles regularly.
-
Page 19: Protecting Your Dishwasher For Long Periods
FACTORS AFFECTING PERFORMANCE The inside of the dishwasher is self-cleaning under normal use. If needed, the tub gasket can be cleaned with a damp cloth. Use a brush to clean the opening in the end of the gasket. Cleaning the air gap If there is an air gap installed with your dishwasher, make sure it is clean so the dishwasher will drain properly. -
Page 20: Troubleshooting
PROTECTING YOUR DISHWASHER FOR LONG PERIODS To restore service: 1 Reconnect the water, drain, and electrical power. 2 Turn on water and electrical power supply. 3 Fill the detergent cup and the rinse aid cup and run the dishwasher through a heated-wash cycle. - Page 21 TROUBLESHOOTING You can solve many common appliance problems saving you the cost of a possible service call. Try the suggestions below before making the call to see if you can solve the problem: PROBLEM POSSIBLE CAUSE/FIXES The dishwasher The door may not be closed properly. won’t start Make sure that the door is closed and latched.
- Page 22 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE/FIXES Spots and filming Water hardness is too high. on dishes For extremely hard water, install a water softener. Dishes are loaded improperly. Reload the dishwasher as shown in “Preparing and loading dishes” on page 9 Old or damp rinse aid power is used. Use fresh, liquid rinse aid.
- Page 23 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE/FIXES The dishwasher The water valve is turned off.. won’t fill (the Turn on the water valve. dishwasher will The door may not be closed completely. beep) Make sure that the door is closed and latched. Specifications Capacity Max 16 place settings Dimensions unit with door and handle -...
- Page 24 Unique Appliances Ltd. Tous droits réservés. Total Current Rated Voltage AC 120V 8.4A Designed and manufactured by: Unique Appliances Ltd., Conçu et fabriqué par: Unique Appliances Ltd. Total Courant Tension Nominale 2245, chemin Wyecroft, local 5, Oakville (Ontario) L6L 5L7.
-
Page 25: Warranty
This UNIQUE appliance must be serviced regularly as outlined in the Owner’s Manual. In case of damage, the owner must provide proof of purchase, Model, and Serial Number to the selling dealer or Unique Appliances. This warranty is LIMITED STRICTLY to the terms indicated herein, and no other expressed warranties or remedies thereunder shall be binding on Unique. -
Page 26: Appliance Information
APPLIANCE INFORMATION APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your fridge easy and efficient, please record the following informa- tion for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES PRODUCT REGISTRATION Please visit our website at https://uniqueappliances.com/product-registration/ to register your product. - Page 28 ©2022 Unique Appliances Ltd., 2245 Wyecroft Road #5, Oakville, Ontario, Canada, L6L 5L7 www.UniqueAppliances.com...
