Item # 1002 067 538
Model # FWS60524C
USE AND CARE GUIDE

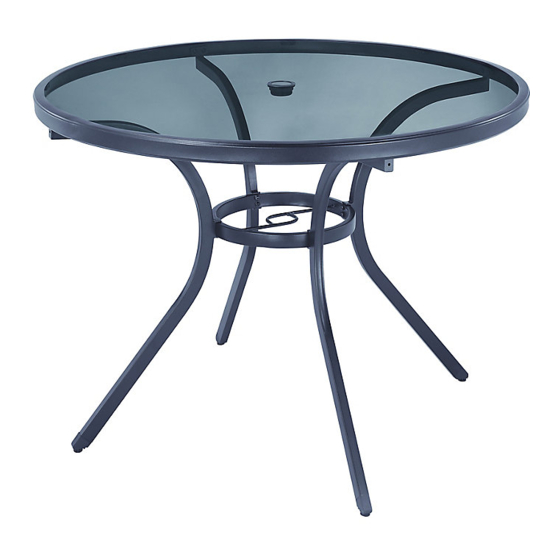

42 IN. WOVEN WRAP GLASS DINING TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this
table
. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FWS60524C
Summary of Contents for HAMPTON BAY FWS60524C
- Page 1 . We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Package Contents..............Safety Warnings ..............2 Assembly................Warranty ................ 2 Care and Cleaning............ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Table leg Leg connector... -
Page 5: Assembly
Assembly Attaching the legs to the table top Place the table top (A) upside down on a soft surface. Attach the table legs (B) to the table top (A) using M6x20 combination bolts (AA). Do not tighten the bolts in this step. NOTE: Loosely tighten all the bolts using the hex wrench (DD). - Page 6 Assembly (continued) Attaching the leg connnector to the table legs Attach the leg connector (C) to the table legs (B) using M6x30 bolts (BB) and steel washers (CC). Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (DD).
-
Page 7: Care And Cleaning
Assembly (continued) Tightening the bolts Turn the table right side up. Check and ensure the table is tightly assembled and stable before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
