Item # 1001 869 470
Model # FWS60528B
USE AND CARE GUIDE

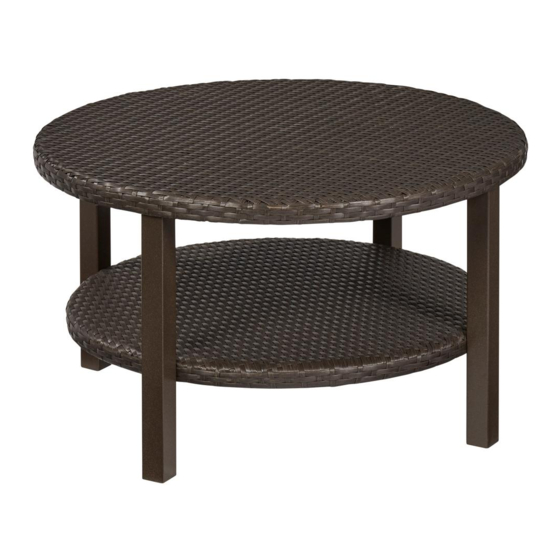

TORQUAY COFFEE TABLE WITH SHELF
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
y through the purchase of this table. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY TORQUAY FWS60528B
Summary of Contents for HAMPTON BAY TORQUAY FWS60528B
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
- Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Safety Warnings ..............2 Package Contents ..............4 Assembly ................5 Warranty ................
- Page 3 Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS 뇈샽 25.400 Part Description Quantity Table top Table leg Shelf...
- Page 5 Assembly ATTACHING THE TABLE LEGS TO THE TABLE TOP Place the table top (A) on a soft surface. Attach the table legs (B) to the table top (A) using M6x15 combination bolts (AA). NOTE: Loosely tighten all the bolts using hex wrench (CC). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 6 Assembly (continued) ATTACHING THE SHELF TO THE TABLE LEGS Attach the shelf (C) to the table legs (B) using M6x30 combination bolts (BB). Once all of the bolts are in place, fully tighten the bolts.
- Page 7 Assembly (continued) CHECKING THE TABLE Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
