Autohaus AHWL-2x20W Directions For Use

2 X 20W LED WORKLIGHT ON TRIPOD

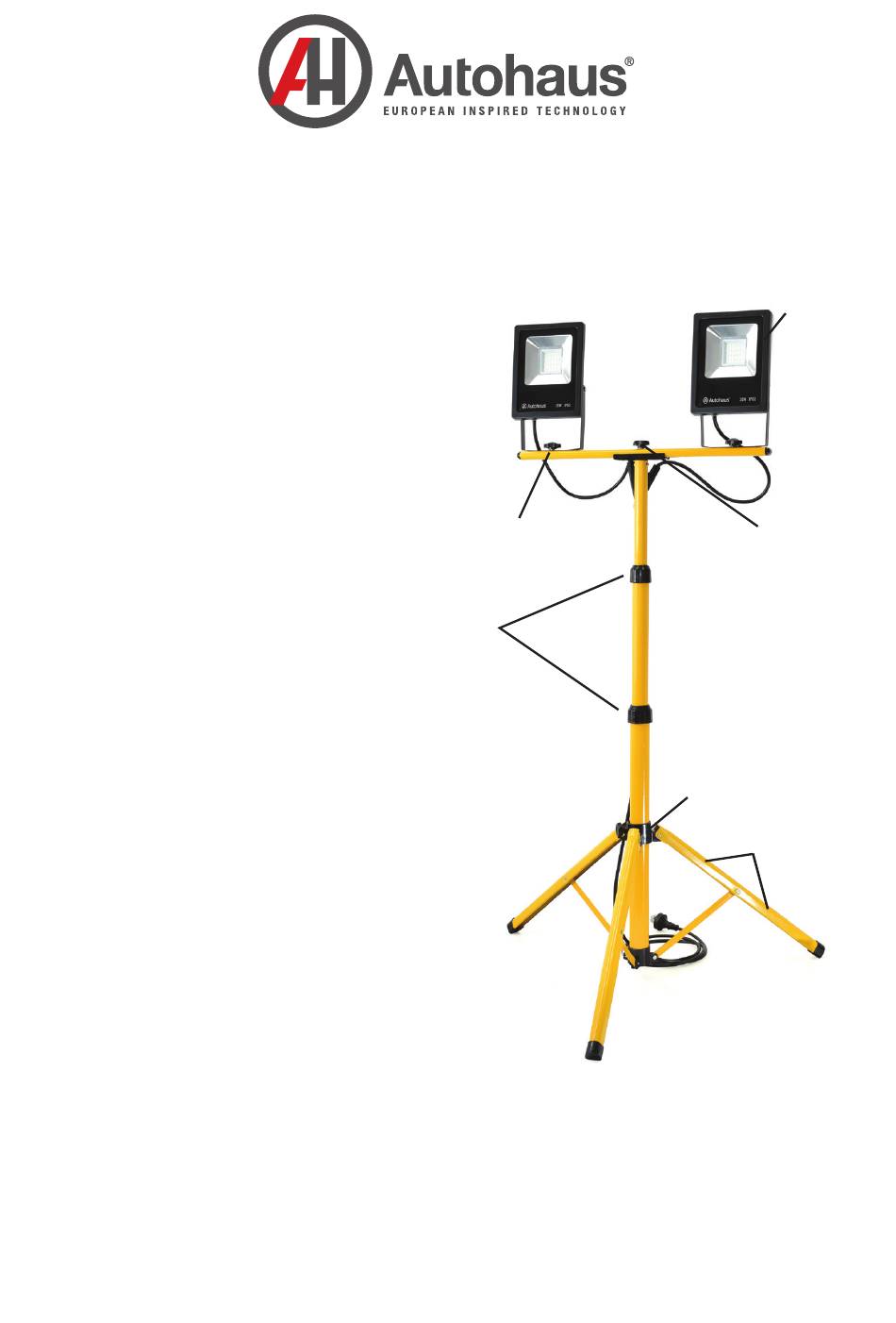

PARTS IDENTIFICATION

A: Lamp body
B: Centre screw knob
C: Twist locks
D: Leg hinges
E: Cable storage
F: Screw knob

ASSEMBLY

1. The tripod stand is supplied assembled. To
attach the worklight, you must first erect the
tripod stand.
2. To open the tripod legs, push the spring pin
upwards and at the same time pivot the leg
down. Release the spring pin whilst pivoting the
leg and the pin will locate into one slot.
3. To alter the stand height, twist the locks (C)
anti-clockwise to release, slide the tubes to
desired height and tighten the twist locks
clockwise
4. Attach the lamps to the crossbar by securing
the lamp screw knob nut (F) through the centre
hole on the brackets of each the floodlights.
Unscrew the centre knob (B) for safe storage of
the mains cable when not in use.
5. To adjust the lamp angle, loosen the screws
DIRECTIONS FOR USE
AHWL-2x20W
C
located on either side of the bracket, until the
desired angle is achieved, then re-tighten.
6. Check this worklight is secure and that
the stand is stable and has a firm footing.
Ensure the cable does not catch on any sharp
object and that the mains plug connection is
adequately protected against rain or moisture.
Your floodlight is now ready for use.
F
A
B
D
E
