Odor Crusher Dry-Clean Closet Instructions For Assembly

A1 A2
10 ea 3 ea
End connector End connector
D
4 ea
Long Vertical Pole
STEP 1.
Start by assembling the top and bottom sections. Insert parts (B) and (C)
into parts (A1) and (A2) as shown below. Insert one hanging rod (F) into top section.
Top and Middle Sections:
Bottom Section:
Note:
All metal parts
must be inserted firmly and
completely into the plastic parts.
STEP 2.
Building
up from the
assembled bottom
section, insert poles
(D) and (E) and
end connectors
(A1) and (A2) as
the diagram shows.
STEP 4.
Continue
building up from the
assembled middle section
by inserting poles (D) and
(E) and end connectors
(A1) and (A2) as the
diagram shows.
NEED HELP? Please contact our customer service BEFORE
returning to the store. For help with assembly, or if you are
missing a part, please contact our Customer Service Department
at 1-877-575-3173 or email cs@odorcrusher.com.
Dry-Clean Closet - Instructions for Assembly
B
3 ea
Long Shelf
E
16 ea
Short Vertical Pole
Note:
Short shelf (C) should
be inserted into the stickered
side of (A2).
STEP 3.
Place the
assembled middle
section onto the top of
the vertical poles.
C
5 ea
Short Shelf
F
2 ea
Hanging Rod
STEP 5.
Place the assembled top
section onto the top of the vertical poles.
Assembly of the frame is now complete.
STEP 6.

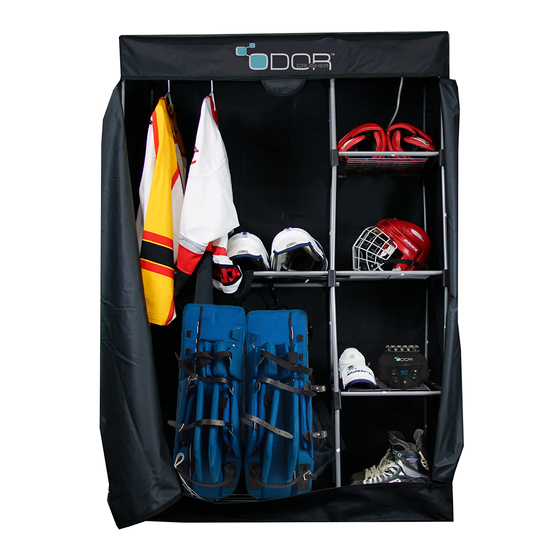

Once the frame is fully assembled, place
the fabric shell over the frame to complete assembly.
An opening is located on either side of the back of the
fabric to allow the Ozone Machine power cord to run
through and plug into a wall outlet.
STEP 8.
For drying, unzip
the top and side
door zippers 6"
and fold side door
flaps down.
Activate heated
dryer and allow
gear to dry fully
before proceeding.
To deodorize using
Ozone, zip the
closet completely
shut and set the
timer.
See the Ozone Machine Instruction Manual for operating settings.
CAUTION! Read the Ozone Machine Instruction Manual and warning label tags carefully before operation.
