Westin Low Back Office Chair Assembly Instruction

Assembly Instruction

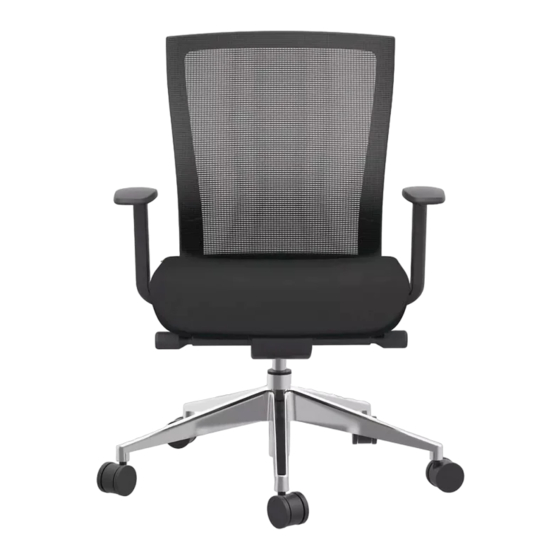

WESTIN Low Back Office Chair
A
B
C
D
O
E
F
G
Item
A
B
C
D
E
F
G
H
J
K
L
M
N
N
O

Warning

1. Product is for single person use only.
2. Do not use this chair unless all bolts and knobs are securely tightened.
3. Check that all bolts and knobs are tightened every six months
or as needed.
4. Dispose of packing material properly. Do not use plastic cover as a head
covering. Suffocation may result.
5. Do not use this chair as a stepladder.
* Arm Pad Lock Kit (L & M) & Arm Cap Kit (N, & O) are included.
Part Name Part #
Back Frame G00021/G00038
Left Arm G00059/G00060
Right Arm G00061/G00062
Seat Pan G00063/G00064
Gas Cylinder G00025
Base G00026
Caster G00008
Hex Wrench G00028
Short Bolt G00030
Long Bolt G00065
Pivot Lock Bracket G00067
Slide Lock Bracket G00068
Left Arm Cap G00069/G00071
Right Arm Cap G00070/G00072
Qty
1
1
1
1
1
1
5
1
4
2
2
2
1
1
