Summary of Contents for Westin OP114

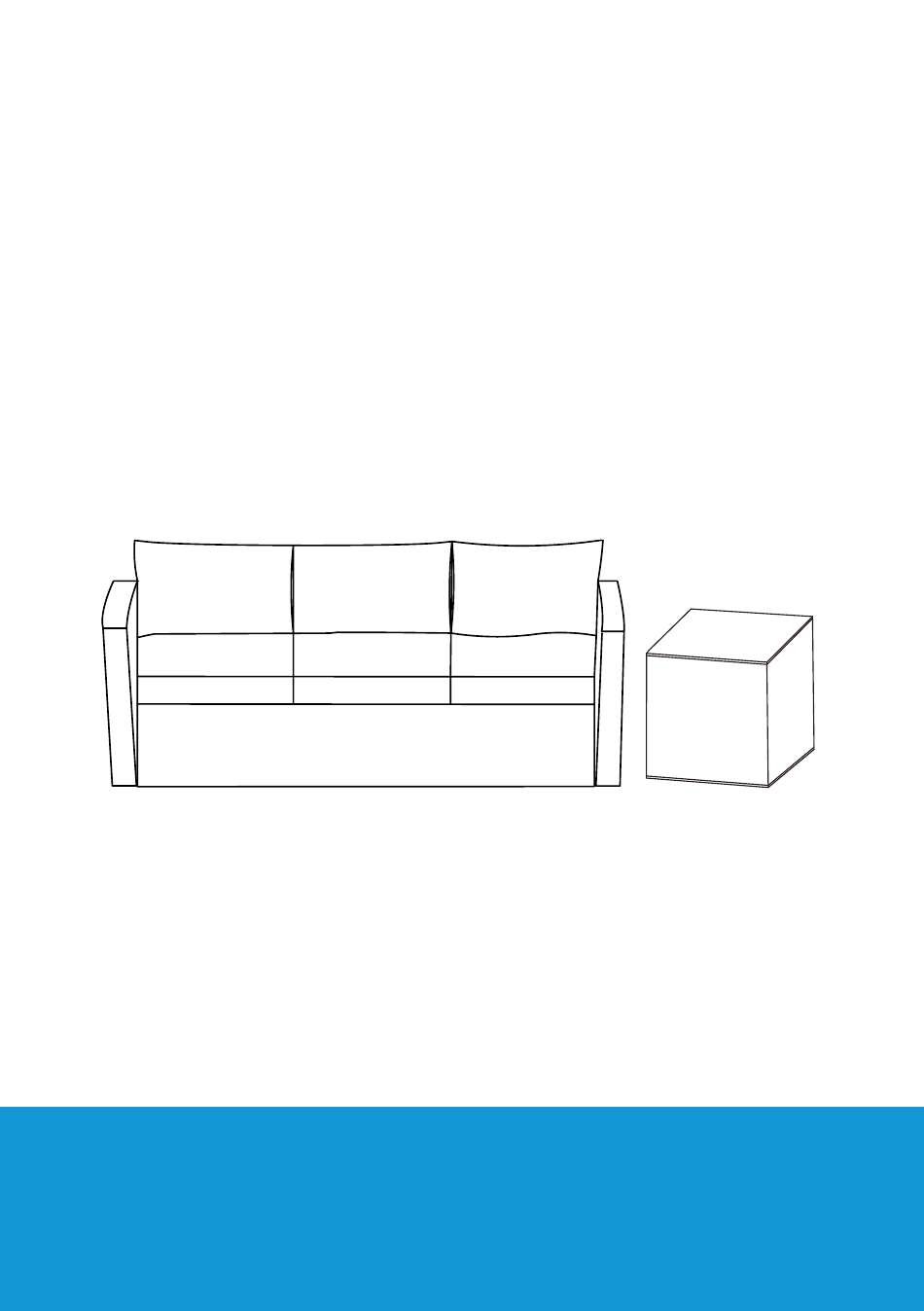

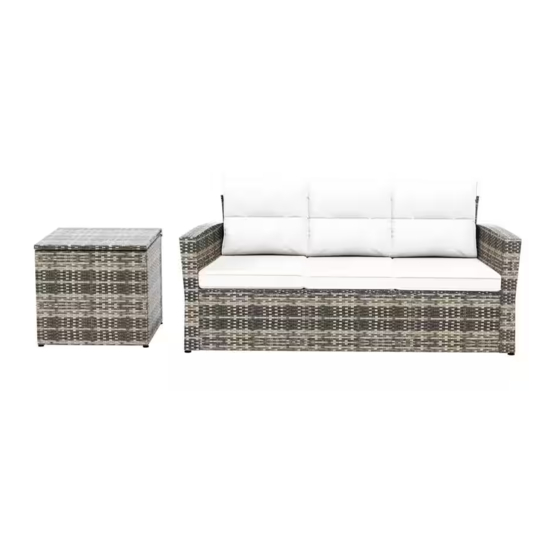

- Page 1 INSTRUCTION MANUAL Sofa And Side Table Rattan Seating Group with Cushion SKU：OP114 V 1.0...
- Page 2 NOTICE Do not overtighten screws. (Insert all screws before tighten screws.) • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and nuts before use. •...
- Page 3 PARTS SOFA SEAT FRONT RAIL TABLE LEFT RAIL 1 PC 1 PC 1 PC TABLE RIGHT RAIL TABLE TOP TABLE BASE 1 PC 1 PC 1 PC TABLE FRONT RAIL LINING 1 PC 1 PC CUSHION BACK CUSHION SEAT CUSHION 3 PCS 3 PCS Page 2 of 7...
- Page 4 PRODUCT ASSEMBLY - THREE-PERSON SOFA Attach part E Front Rail to part D Sofa Seat with 3 PCS of part 1 Bolt and part 4 Washer . Do not tighten screws too much at this stage. Attach the combined part (D+E）to part C Sofa Backrest with 3 PCS of part 1 Bolt and part 4 Washer.
- Page 5 PRODUCT ASSEMBLY - THREE-PERSON SOFA Attach the combined part (C+D+E）to part B Chair Right Side with 5 PCS of part 1 Bolt and part 4 Washer. Screw part 6 Threaded pin into the hidden nut firstly before this step. Attach the combined part (C+D+E）to part A Chair Left Side with 5 PCS of part 1 Bolt and part 4 Washer.
- Page 6 PRODUCT ASSEMBLY - THREE -PERSON SOFA Tighten all bolts again to ensure this sofa is stable enough to use. Place 3 PCS of part Z2 Seat Cushion and part Z1 Back Cushion into the sofa to finish the assembly. PRODUCT ASSEMBLY - COFFEE TABLE Attach part F and G Table Rails to part H Table Top with 4 PCS of part 2 Bolt and part 4 Washer.
- Page 7 PRODUCT ASSEMBLY - COFFEE TABLE Attach part I Table Base to part F and G Table Rails as well as part H Table Top with 6 PCS of part 1 Bolt and part 4 Washer. Attach part J Table Front Rail to part F and G Table Rails and part I Table base with 6 PCS of part 1 Bolt and part 4 Washer.
- Page 8 PRODUCT ASSEMBLY - COFFEE TABLE Attach the chains to Table Top with 2 PCS of part 2 Bolt and part 3 Spacer and attach part K Lining inside with velcro. Close the Table top and convert it to a coffee table while open it as a storage box. Page 7 of 7...
