EL-4KHDBT-KIT-70-ARC-18G
(ARC)
HDMI IN
OPT OUT
L/R OUT
EL-4KHDBT-TX-70-ARC-18G
HDMI OUT
Introduction
The ELAN
4K HDBaseT ARC extender set offers market leading features for the custom installation industry. The product delivers HDMI, ARC,
®
Optical Audio Return, Bi-directional IR and RS-232 and Bi-directional PoC up to lengths of 70m (100m @ 1080p).
Features
•
Advanced HDBaseT technology offering uncompressed video and audio with zero latency
•
Extends HDMI 1080p up to a distance of 100m over a single CAT cable
•
Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
•
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•
Features 1 x HDMI loop-out on EL-4KHDBT-TX-70-ARC-18G for integrating local displays or cascading to multiple devices
•
Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input*
•
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
•
Bi-directional IR pass-through
•
Bi-directional RS-232 pass-through
•
Supplied with ELAN IR receiver and emitter
•
Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
•
HDCP 2.2 compliant with smart EDID management
*Please note: When using an eARC display, only 2 channel PCM audio is supported.
©
2022 ELAN
is a registered trademark of Nortek Security & Control LLC. All rights reserved.
®
RevA5_QRG_ELAN_EL-4KHDBT-KIT-70-ARC-18G_Working.indd 1
RevA5_QRG_ELAN_EL-4KHDBT-KIT-70-ARC-18G_Working.indd 1

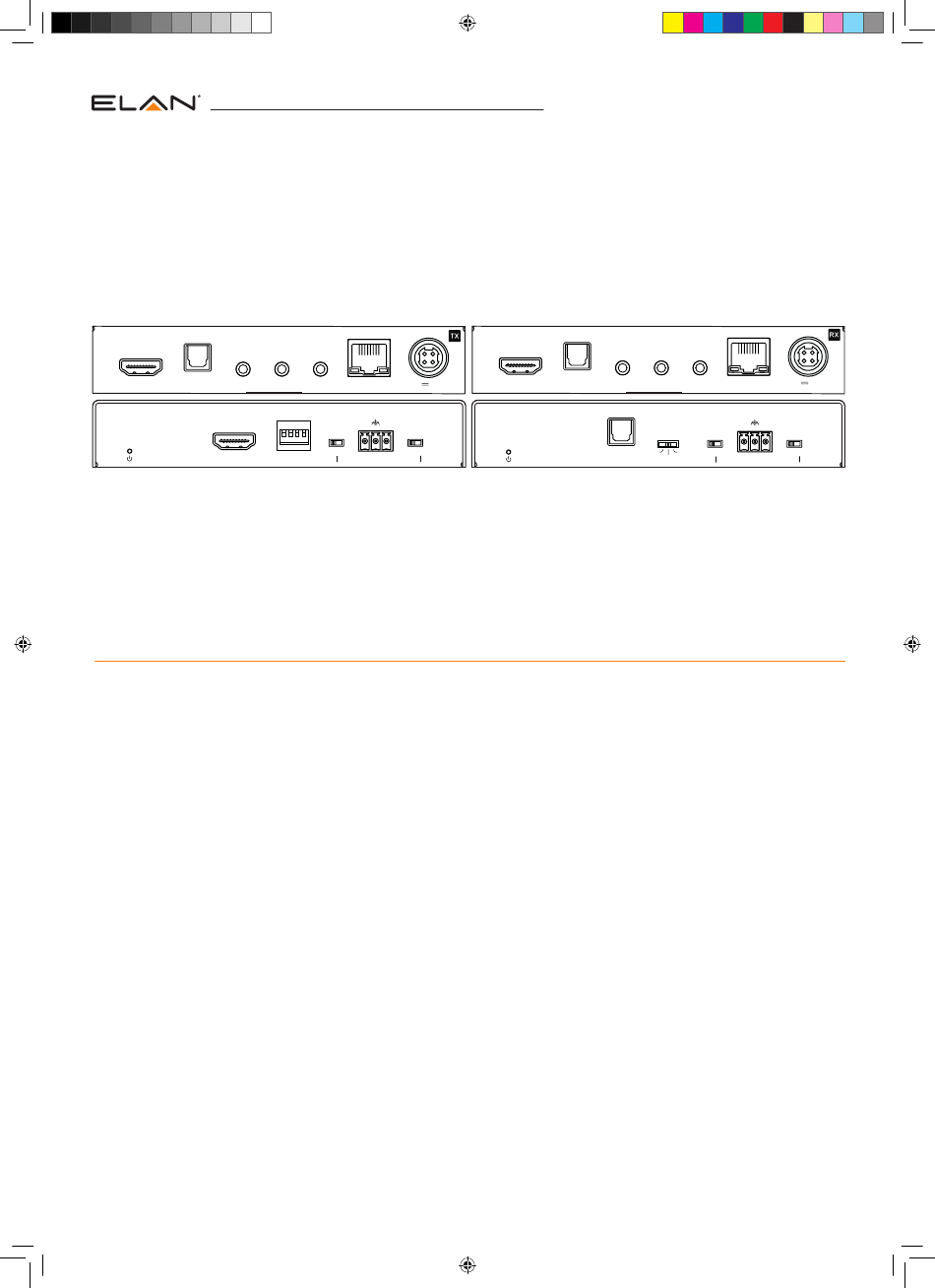

Quick Reference Guide
IR IN
IR OUT
HDBT OUT
24V 1.25A
3 2 1 0
TX
RX
PoC
MODE
0
1
EDID
ON OFF
RS-232
NORM FW
EL-4KHDBT-KIT-70-ARC-18G
(ARC)
HDMI OUT
OPT OUT
L/R OUT
IR IN
EL-4KHDBT-RX-70-ARC-18G
HDMI
OPT IN
RevA5_QRG_ELAN_EL-4KHDBT-KIT-70-ARC-18G_PrintReady
QUICK REFERENCE GUIDE
IR OUT
HDBT IN
24V 1.25A
TX
RX
(ARC)
PoC
MODE
OPT
RS-232
NORM FW
PASS
ON OFF
25/02/2022 11:19
25/02/2022 11:19
Advertisement
Table of Contents
Related Manuals for Elan EL-4KHDBT-KIT-70-ARC-18G
Summary of Contents for Elan EL-4KHDBT-KIT-70-ARC-18G
- Page 1 • Bi-directional IR pass-through • Bi-directional RS-232 pass-through • Supplied with ELAN IR receiver and emitter • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end • HDCP 2.2 compliant with smart EDID management *Please note: When using an eARC display, only 2 channel PCM audio is supported.
- Page 2 Terminating the Interconnecting HDBaseT CAT Cable It is important that the interconnecting CAT cable between the ELAN HDBaseT products is terminated using the correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).
- Page 3 Using ARC / Optical Audio Return Depending on the position of the switch on the front of the HDBaseT Receiver unit, the EL-4KHDBT-KIT-70-ARC-18G allows for audio from either HDMI (ARC) or Optical (S/PDIF) to be returned from RX to TX when watching a device input locally to the display, or when using the display as a source device.
- Page 4 EL-4KHDBT-KIT-70-ARC-18G QUICK REFERENCE GUIDE Specifications EL-4KHDBT-RX-70-ARC-18G EL-4KHDBT-TX-70-ARC-18G Video Input Connectors: 1 x HDBaseT RJ45 connector Video Input Connectors: 1 x HDMI Type A, female Video Output Connectors: 1 x HDMI Type A, female Video Output Connectors: 1 x HDBaseT RJ45 connector, 1 x HDMI Type...
