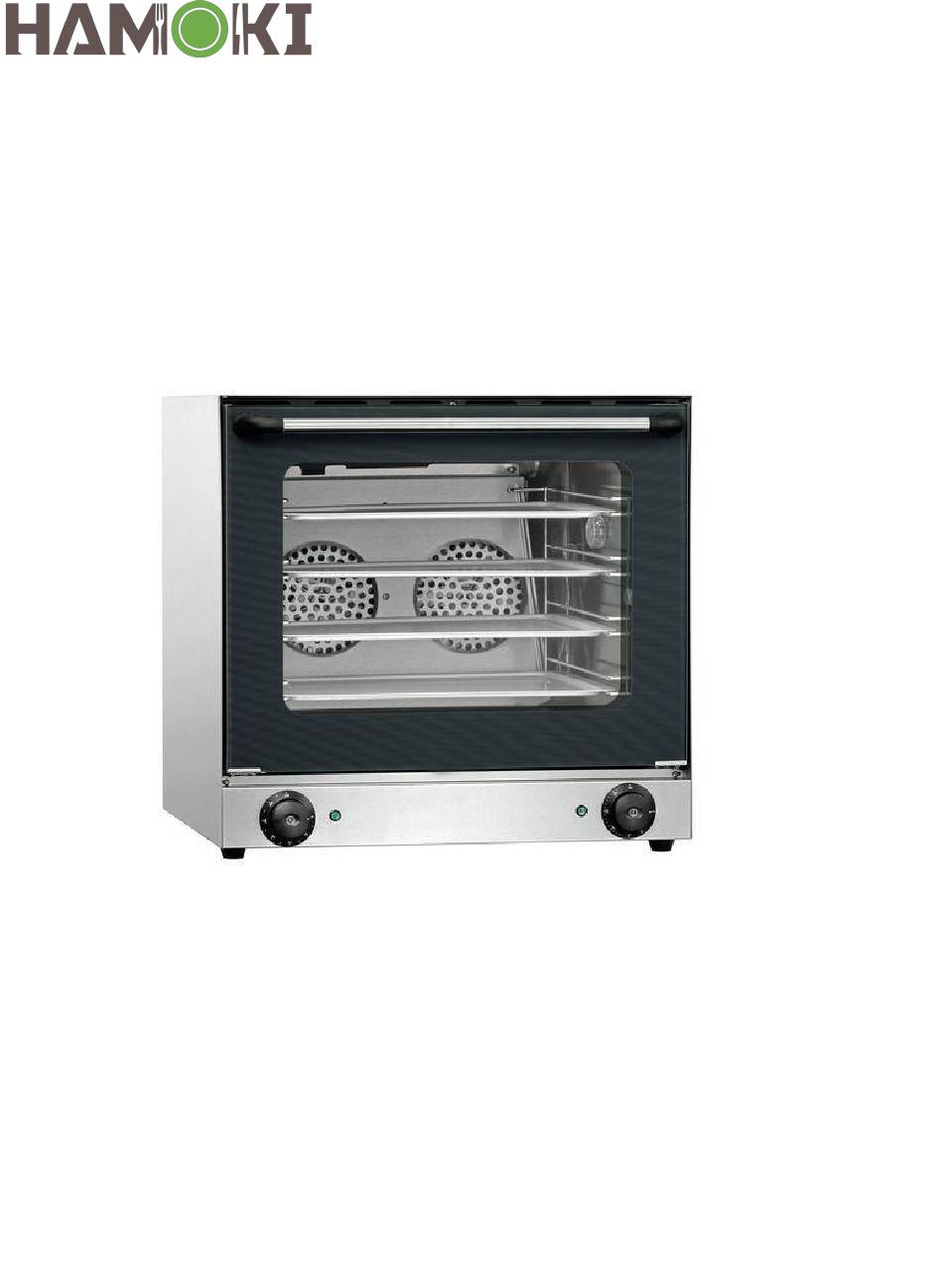

- Page 1 Convection Oven Instruction Manual Model: YSD-1AE Please read this instruction manual carefully before operation...
- Page 2 All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual.
- Page 3 Structural Diagram & Working Principle 1. Furnace Body 2. Temperature Control 3. Power Indicator 4. Timer Indicator 5. Timer Control ▪ The outer surface is processed with a smooth treatment, easy for cleaning ▪ Made of stainless steel material, with withdrawable s/s grid. ▪...
- Page 4 EH2 -Main heating elements EL-Internal light M1, M2-Convection fans S2-Top heating Element Thermostat S1-Fuse PT-Timer HL1～HL2-Probe lights Basic Features & Parameters MODEL YSD-1AE YSD-1A CHAMBER MATERIAL ENAMELLED STAINLESS STEEL DIMENSION (MM) 595 X 595X 570 595 X 595 X 570 VOLTAGE (V)
- Page 5 Transportation and Storage: During transportation, please handle the appliance carefully and DO NOT put upside down –this will prevent damage of the enclosure and inner parts. The packaged device should be stored in a well-ventilated warehouse of no corrosive gas. Please take appropriate precaution against rain. Installation: The Assembly of the Rubber Feet: ▪...
- Page 6 5. Set the device on a flat, secure surface, and make sure the sides are away from non-combustible material (e.g. Brick walls or windows) no less than 10 cm, and the rear at least 20 cm. 6. When installing, please ascertain that the device is far away from water or snow and it is advisable to place it near a fire extinguisher.
- Page 7 The Usage of the Timer: ▪ The cooking time can be set by rotating the timer clockwise. When the time is up, you can hear a tick sound and the oven will close automatically. ▪ During cooking, the oven can be turned off manually by just rotating the timer anti-clockwise to the “0”...
-
Page 8: Cleaning And Maintenance
CLEANING AND MAINTENANCE ▪ Disconnect the power supply before any cleaning and maintenance to avoid electric shock. ▪ Open the oven door and wait till it cools down (at least 10mins) before cleaning it. ▪ Clean the chamber and storage place every day to maintain it. ▪... - Page 9 PROBLEM CAUSE SOLUTION When connected to 1. The thermostat is 1.Replace the power, the heating defeated thermostat indicator is on but it 2. At least one of the 2. Replace the burnt does not heat up. heating elements is out heating elements burnt out When connected to The thermostat is...
-
Page 10: Warranty Claims
Hamoki Ltd and upon proper installation and start-up in accordance with the instruction packet supplied with each unit) a one year parts warranty. Hamoki Ltd’s obligation under this warranty is limited to a period of one (1) year from the date of original installation. WARRANTY CLAIMS: All claims for parts must be made directly through the retailer in the first instance.
