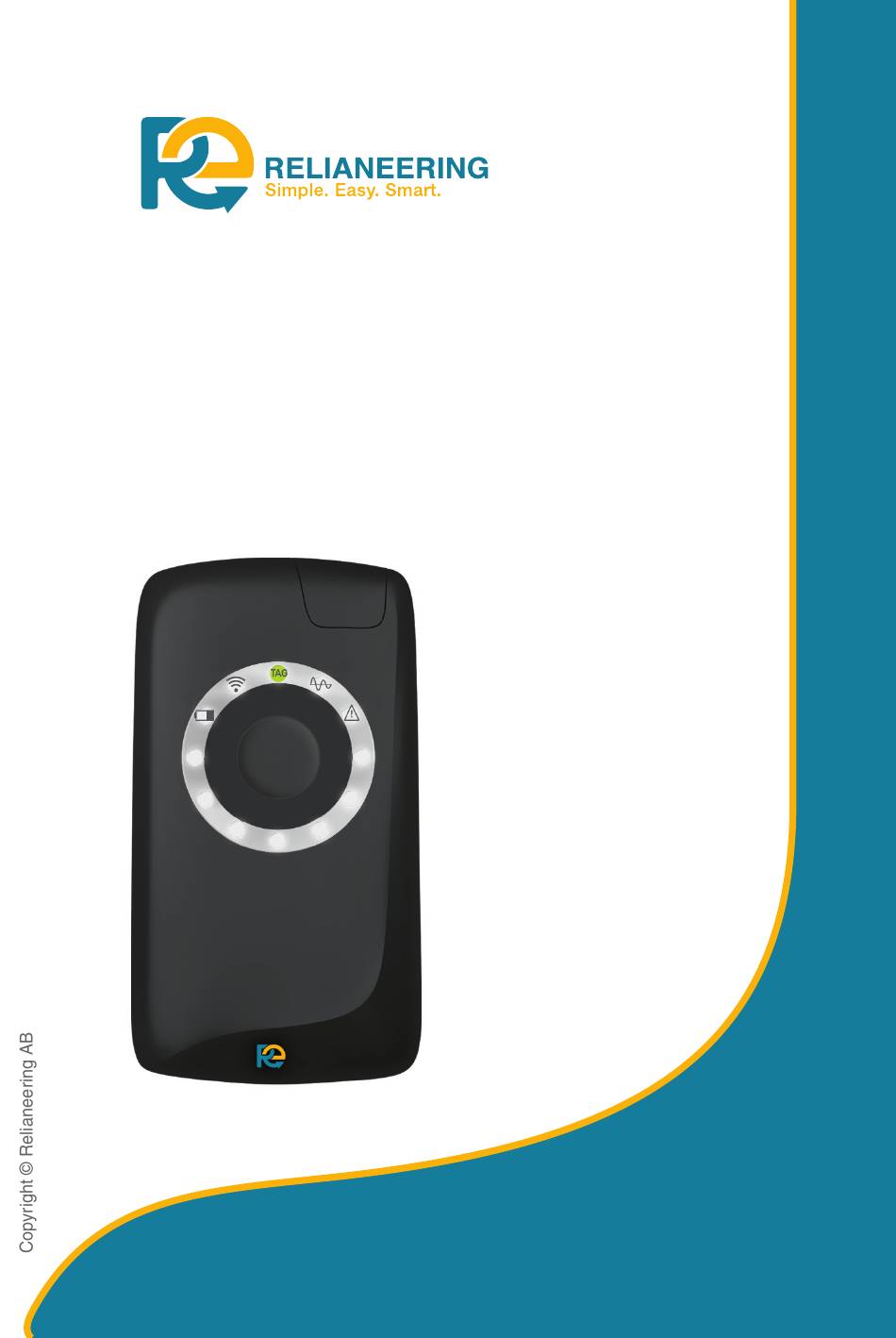

- Page 1 SES-LOGGER Instruction Manual Publ.: 2022-07-01...
- Page 2 SES Logger. Incorrect use might cause personal harm and/or damage to the SES Relianeering reserves the right to correct any errors in text or images and to make any necessary changes to or update the technical data without prior notice. If you have any questions regarding technical problems, please contact our support team at suppor@relianeering.com.
-
Page 3: Safety Instructions
• The SES Logger must only be used with an accelerometer (IEPE) 100 mV/g and connected to the logger with a BNC connector. • The SES Logger must only be charged with a 5V DC USB charger using a Micro USB cable. • The SES Logger must not be disassembled. - Page 4 The SES Logger is a data recorder 1. SES Logger button that records 3 sec vibration data. 2. LED ring The logger is designed for IEPE sensors (ICP ) with 100 mV/g 3. Battery level indicator (10’) ® sensitivity. The LED-ring indicates 4.
-
Page 5: Data Collection
The distance between logger reader and the Acceleration 100 mV/g CM Point cap should be less 50 mm. Once the UID is scanned successfully the user will feel vibrations and 12’ LED (TAG) will become green. Relianeering AB Simple – Easy – Smart... - Page 6 Completing the measurement When the measurement is completed the logger will vibrate and all LEDs will flash in green. CM Point UID Detach the sensor. Close the cap. Move to next CM point. Relianeering AB Simple – Easy – Smart...
-
Page 7: Data Transfer
Note: If the app has been already launched before to activate the hotspot, we recommend to «kill» it and re-launch it again. Start SES Logger The logger will after two minutes automatically connect the hotspot and the ReSES communicator app to transfer collected data. To... - Page 8 • When you launch the app on the mobile device, it will immediately initiate data transfer, if there are still not transferred data on the mobile device. • The app automatically checks for new data and start transferring it on every 5 minute. Relianeering AB Simple – Easy – Smart...
- Page 9 Communicator 1. Dashboard (main window) 2. Blue progress bar (sending data, mobile device to cloud) 3. Yellow progress bar (receiving data from SES logger to mobile device) 4. WiFi indicator for mobile device (OFF when the hotspot is ON) 5. Time indicator for sending data to ReSES.net (one segment is one minute, 5 min total).
- Page 10 • Vibration level of the CM Points (Velocity 10–1000 Hz in mm/s rms according ISO 10816) • Trend for each CM Point • List of machines in overdue and recently collected number per CM Points per machine. Relianeering AB Simple – Easy – Smart...
-
Page 11: Troubleshooting
• Within a few hours from starting charging 10’ LED should change the colour from red to yellow and when is full charge to green. • Check the USB cable and power supply. Relianeering AB Simple – Easy – Smart... - Page 12 • Try to connect the logger to another mobile device with ReSES Communicator. • If you use local WiFi for data transfer check the firewall settings. If none of the actions above help, please contact technical support for assistance (support@relianeering.com). Relianeering AB Simple – Easy – Smart...
- Page 13 SES Logger LEDs status LEDs Colour Description White flashing The logger is in idle mode. slowly CM Point UID (RFID) has been scanned 12’ Green successfully. The user has few seconds to press the button and await measurement. 1’ The measurement is initiated and logger is settling Blue mode for 5 seconds.
-
Page 14: Technical Specification
• Operating temperature –20 to +50°C • Storage temperature –20 to +45°C • Size: 70×130×35 mm, Weight: 154 g • Measurement time per point less than 10 s • CE-marked • FCC compliant Relianeering AB Simple – Easy – Smart... - Page 15 Relianeering AB Simple – Easy – Smart...
