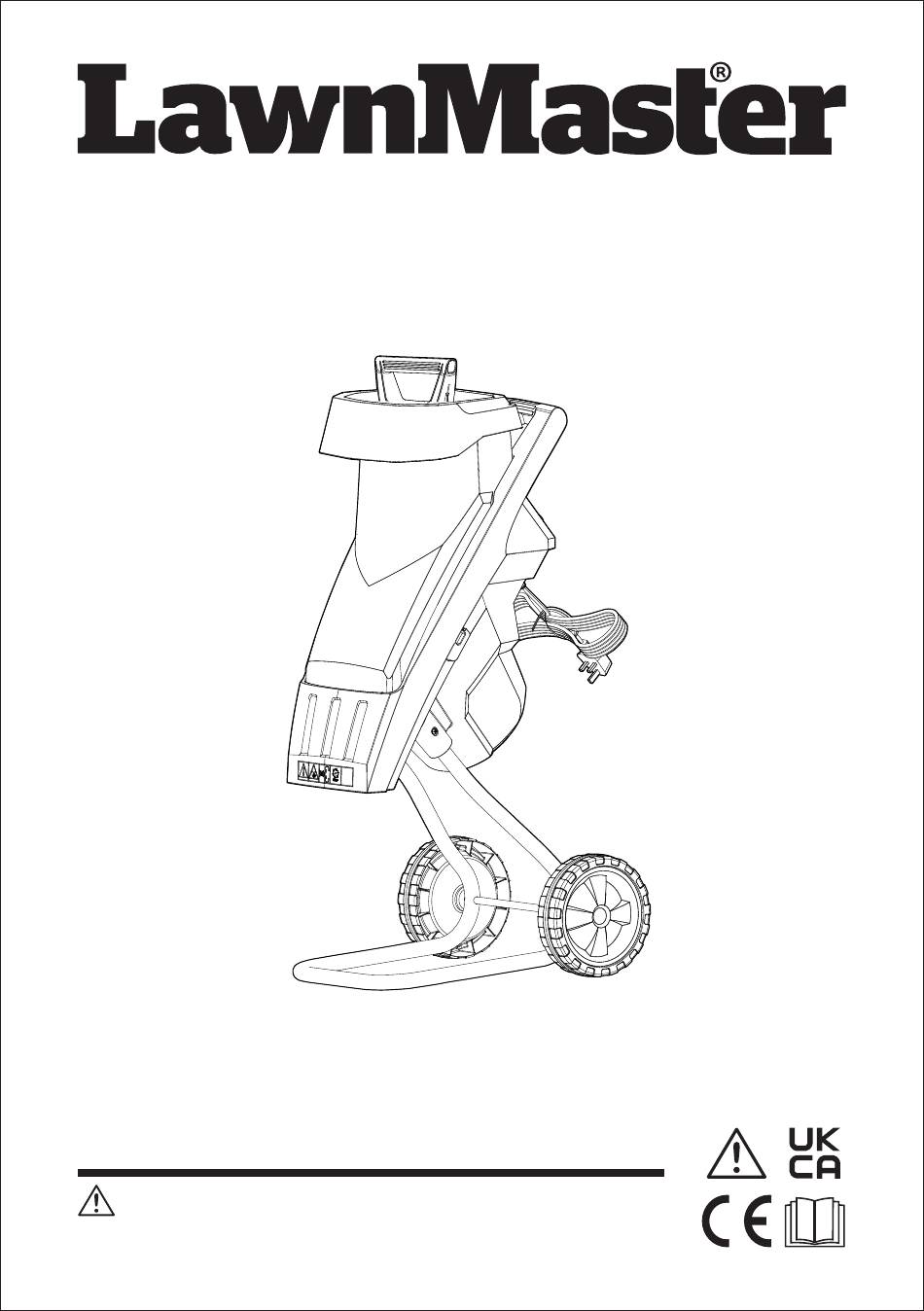

Instruction Manual
2400W Garden Shredder FD2402
Original Instructions
WARNING: Read all safety instructions carefully before assembling and operating this
machine. Ensure the machine has been assembled correctly and safely. Keep the instructions
safe and pass them on to any subsequent user so that the information is always available.
Advertisement
Table of Contents
Related Manuals for LawnMaster FD2402
Summary of Contents for LawnMaster FD2402
- Page 1 Instruction Manual 2400W Garden Shredder FD2402 Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Section Page Symbols Safety Information 6-12 In the Box Assembly 13-14 Operation 14-17 Maintenance 17-18 Troubleshooting Technical Data Recycling and Disposal... -
Page 5: Symbols
SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Wear eye and ear protection. Wear hand protection. Do not expose to rain. Switch off and remove the plug from the mains before adjusting, cleaning or if the cord is entangled or damaged. -
Page 6: Safety Information
SYMBOLS WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual. If you do not understand the warnings and instructions in the instruction manual, do not use this product. - Page 7 SAFETY INFORMATION ■ If you give the equipment to any other person, give them these operating instructions as well. ■ We accept no liability for damage or accidents which result from non-compliance with these instructions. ■ Observe local noise and other regulations. Preparation ■...
- Page 8 SAFETY INFORMATION and in good working order. Replace any damaged or illegible stickers. ■ Before use, check the power supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately.
- Page 9 SAFETY INFORMATION never stand above the shredder when inserting materials. ■ Always stand clear of the discharge zone when operating this machine. ■ Make sure that the material inserted into the shredder does not contain hard objects made of metal, stone, glass or similar.
- Page 10 SAFETY INFORMATION replacing accessories, - before moving or lifting the shredder. ■ Do not transport or tilt the shredder with the motor running. ■ Do not allow shredded material to accumulate near the ejection area. This may otherwise hinder proper ejection and force the material back up through the funnel.
- Page 11 SAFETY INFORMATION Maintenance and Storage Safety ■ When the shredder is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the plug from the supply and make sure that all moving parts have come to a complete stop. Allow the shredder to cool before making any inspections, adjustments, etc.
- Page 12 SAFETY INFORMATION the shredder is working, disconnect the mains plug from the power supply immediately and then check the extent of the damage. Never use the shredder if the cable is not in perfect condition. ■ Do not unplug the shredder by pulling on the cable, only pull the plug itself.
-
Page 13: In The Box
IN THE BOX 1. Hopper 12. Wheel Cover 2. Reset Button 13. Collection Bag 3. Housing Interlock 14. Bag Mount 4. On/Off Switch 15. Blade (x2, With 1 Blade Pre-Installed inside 5. Handle the Shredder Unit ) 6. Pusher 16. Allen Key (Stored Inside the Shredder) 7. -
Page 14: Assembly
ASSEMBLY WARNING Never operate the shredder without the proper safety devices in place and in correct working order. Never operate the shredder with damaged safety devices. Failure to pay attention to this warning can result in serious personal injury. Make sure all packing is removed from product parts before starting assembly. - Page 15 OPERATION WARNING Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it. Starting/Stopping the Shredder (See Fig. 5) NOTE: Make sure that the hopper funnel is empty before starting. Starting the hopper when full may result in the machine jamming.
- Page 16 OPERATION WARNING Always switch off the shredder before emptying the collection bag. Overload Protection WARNING In the event of the shredder being overloaded, e.g. due to that branches are too thick, the shredder will automatically switch off. To reset the shredder: Wait a few minutes to let the motor cool down. Remove the blockages if necessary.
-
Page 17: Maintenance
OPERATION ■ Do not shred but directly compost all soft and wet material such as kitchen waste. ■ Keep a couple of dry branches to run through the shredder at the end of the shredding session. These will help to clean the blade of plant material. ■... - Page 18 MAINTENANCE ■ Do not spray water onto the shredder. Electric shock hazard. ■ Check the covers and guards for damage and improper attachment. If necessary, contact the After Sales Helpline. Reversing, Sharpening & Replacing the Blade (See Figs. 9&10) ■ Remove the front part of the shredder housing. Refer to step 1-3 of Clearing a Blockage section on page 15.
-
Page 19: Troubleshooting
TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist. Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine, disconnect it from the power supply, and let the product cool down before making any adjustment. -
Page 20: Technical Data
TECHNICAL DATA 2400W Garden Shredder FD2402 Nominal Voltage 220-240V~ 50Hz Nominal Power Intake 2400W (P40) Protection Class / II Degree of Protection IP24 Idling Speed 3940/min Feed Capacity Max. 40mm Collection Bag Capacity Approx. 50L Weight 12kg Measured Sound Pressure Level (L... - Page 22 ② ① Fig.1 Fig.4 Fig.5 Fig.2 Fig.3 Ⅱ Ⅰ Fig.6 Fig.7 Fig.8 ⑤ ③ ⑧ ⑥ ④ ⑦ Fig.9 Fig.10...
- Page 24 FD2402 Suzhou Cleva Electric Appliance Co. Ltd. No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
