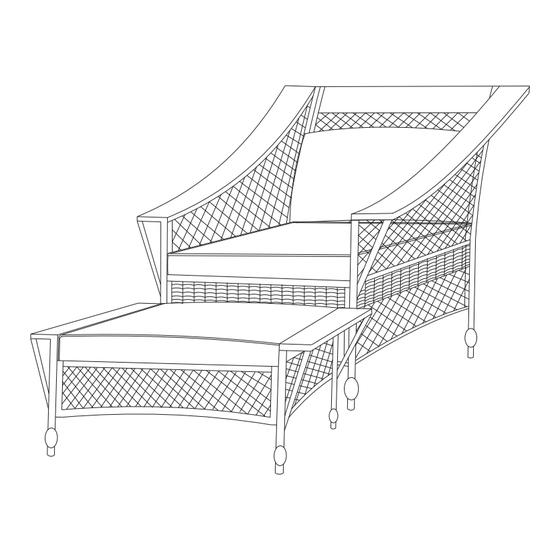

- Page 1 Model # 69-231O-473 USE AND CARE GUIDE SEAWARD CHAIR + OTTOMAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . - Page 3 Warranty THREE YEAR FRAME, WEAVE AND FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frame, weave and fabric to be free of manufacturing defects to the original purchaser for three (3) years. For glass table top we warrant 30 days from the date of purchase.
-
Page 4: Assembly
Pre-Assembly 69-231O-473-chr PLANNING ASSEMBLY To prevent damage, place all parts on a soft surface during assembly. Remove all protective caps before beginning assembly. HARDWARE INCLUDED Part Description Quantity Bolt (Ø8×40 mm) Bolt (Ø8×30 mm) Washer (Ø8 mm) Allen wrench (Ø5 mm) -
Page 5: Package Contents
Pre-Assembly 69-231O-473-chr PACKAGE CONTENTS Part Description Quantity Back Seat Left Arm Right Arm Seat cushion Back cushion HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. - Page 6 Assembly 69-231O-473-chr Attaching the seat and back Attaching the left and right arm □ □ Attach the back (A) to the seat (B) by aligning holes on the Attach the left arm (C) and right arm (D) to the seat (B) and back (A)
- Page 7 Assembly 69-231O-473-chr Installing the seat cushion and back cushion □ Place the seat cushion (E) on the seat (B). □ Place the back cushion (F) on the back (A). □ The chair is now ready for your enjoyment. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Pre-Assembly 69-231O-473-otm PLANNING ASSEMBLY To prevent damage, place all parts on a soft surface during assembly. Remove all protective caps before beginning assembly. HARDWARE INCLUDED Part Description Quantity Bolt (Ø8×40 mm) Washer (Ø8 mm) Allen wrench (Ø5 mm)
- Page 9 Pre-Assembly 69-231O-473-otm PACKAGE CONTENTS Part Description Quantity Seat Left Arm Right Arm Seat Cushion HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
- Page 10 Assembly 69-231O-473-otm Attaching the left arm Attaching the right arm □ □ Attach the left arm (I) to the seat (G) by aligning holes on the Attach the right arm (H) to the seat (G) by aligning holes on the...
-
Page 11: Maintenance
Maintenance □ Wash the frame with a mild solution of soap and water, rinse with clean water, and dry thoroughly. □ Cushions may also be cleaned by hand with a mild solution of soap and water. Rinse the cushion cover thoroughly and allow to drip dry. Do not machine wash or trumble dry, as cushions may shrink. - Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
