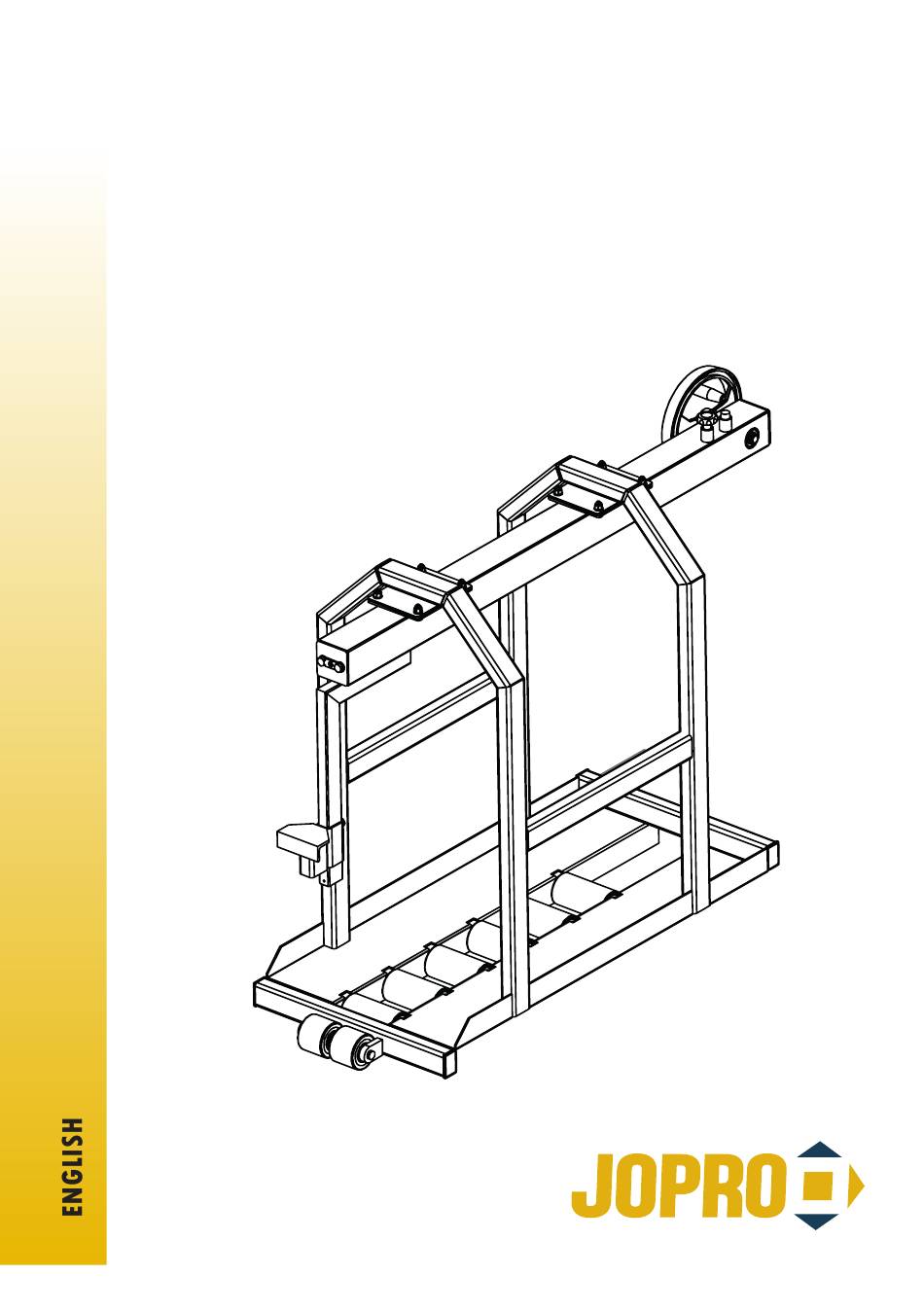

- Page 1 JOPRO MiniChanger...
- Page 2 Please read the manual carefully before use and keep it in a safe place for future reference. The information in this manual was up to date when it was printed. JOPRO reserves the right to make technical changes without prior notice. © 2019 JOPRO AB...
-
Page 3: Table Of Contents
Table of contents Overview..........4 Controls ..........6 User’s Guide ...........8 Maintenance ......... 12 Spare Parts...........14... -
Page 4: Overview
Overview Rail Chain Tension Adjustment Stretches the chain that moves the electromagnet transporter. Grip Grips and holds the battery during battery change. Rubber Buffers Reduces wear when docking against the forklift and roller beds. - Page 5 Wheel Used for horizontal transport of the battery Signal Pin If up, the battery is in locked position. Locking Pin Secures the battery during transport.
-
Page 6: Controls
Controls Use the wheel to move the arm forward and backward. Adjust the grip so that it fits the battery height... - Page 7 The locking pin secures the battery during transport. Lift the pin to release the battery.
-
Page 8: User's Guide
User’s Guide Working area Unauthorized staff are not allowed within 1.5 meters from JOPRO MiniChanger when in use. 1.5 m... - Page 9 The grip must be centered on the battery. Enter high and lower the whole MiniChanger over the battery tray.
- Page 10 Move the battery as far in as possible. Check that the signal pin is raised so that transport can be carried out in a safe manner.
-
Page 12: Maintenance
Maintenance Monthly - weldings: check that all weld- JOPRO MiniChanger should be ings are intact and have no vis- supervised regarding: ible cracks. - function: check that the various - instructions: check that the functions work correctly. manual is always available. -
Page 14: Spare Parts
Spare Parts JOPRO MiniChanger 040-0802 050-0202 050-0201 050-0305 010-1001 040-0501... - Page 15 030-1001 050-0521 010-0102 020-5001 State L together with State L together with the order number the order number...
- Page 16 Jopro AB Lunnavägen 6 Tel: +46-303-749740 info@jopro.se SE-449 50 Alafors Fax: +46-303-748206 www.jopro.se...
