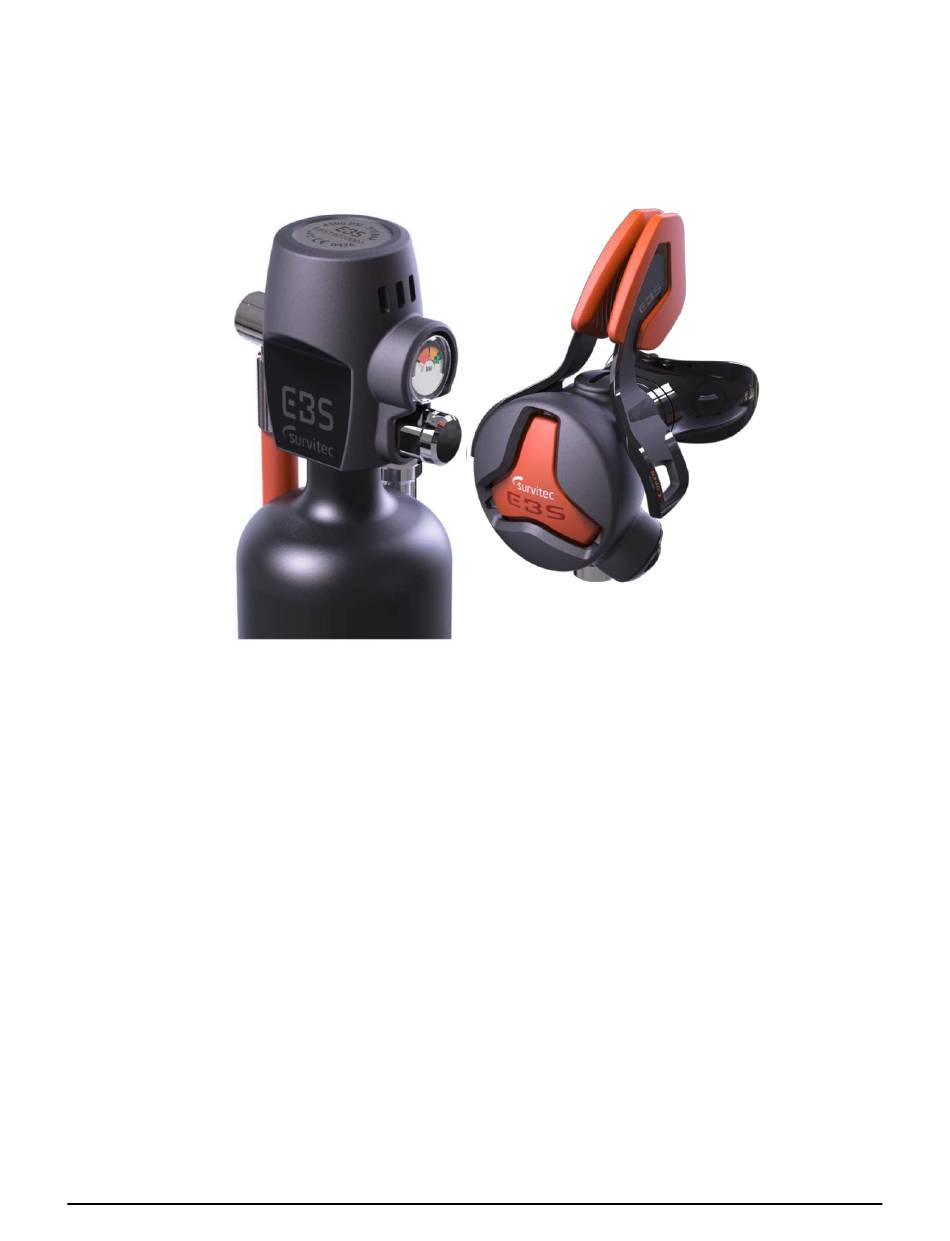

- Page 1 EMERGENCY BREATHING SYSTEM USER MANUAL SURVITEC Part # 12677009 -Emergency Breathing System EBS Survitec Manual Number: 25-61-912 Survitec Part Number: 12863009 EBS User Manual Revision 2...
-
Page 2: Table Of Contents
CE INFORMATION ........................3 GENERAL WARNINGS ........................... 4 INTRODUCTION ..........................5 THE CYLINDER ..........................5 THE EBS FIRST STAGE ........................6 THE EBS SECOND STAGE........................7 FILLING THE CYLINDER ......................8 CARE AND MAINTENANCE ......................9 REPAIRS AND SERVICE ......................10... - Page 3 EN4856: The EBS is considered a Category A Emergency Self-Contained Emergency Underwater Breathing Apparatus. As such, the EBS is designed for user deployment and operation with sufficient notice given to a user to deploy the device.
- Page 4 WARNING: Discontinue use of any EBS unit post exposure to extreme heat in excess of 121°C. WARNING: Units shall be serviced and maintained on a regular basis by trained and authorized technicians.
-
Page 5: Introduction
By combining the function of a valve and regulator first stage, the EBS reduces weight, bulk and a failure point. The EBS utilizes a robust piston style first stage that greatly reduces moving parts while still providing good breathing characteristics. - Page 6 OVERHEATING CAN RESULT IN SERIOUS INJURY OR DEATH. Cylinder Manufacturer Recommendations: EBS Cylinders have a design life of 15 years and an inspection period of 5 years, as indicated on the cylinder. Cylinders must be subjected to a thorough periodic inspection in accordance with ISO 11623. The period of inspection for this composite cylinder is 5 years for non-toxic gases or 3 years for toxic gases.
-
Page 7: The Ebs First Stage
The EBS is shipped from the factory with the first stage turned “ON”, ready to use and should always be left in the “ON” position during use. Should the EBS be turned off for servicing, you can turn the gas supply back on. -
Page 8: The Ebs Second Stage
EBS into service which has the Second Stage Protective Cover in place, as that part indicates that the EBS is either waiting for, or in process of being serviced or to be filled with breathing gas (See figure). -
Page 9: Filling The Cylinder
Fill Port Cap Fill Adapter (Not Included) 3. Attach the EBS Fill Port to a 6.4 mm Female Quick Disconnect Coupling (Not Included with the EBS system) Begin slowly filling the cylinder per the recommendations set forth on page 5 of this manual. - Page 10 2: With the EBS Second Stage in your hand, use your thumb and index finger to push down on the Nose Clip tabs on either side of the Second Stage Body to open the Nose Clip. (See below).
-
Page 11: Care And Maintenance
7: Once safely on the surface, discontinue use of the EBS. DO NOT put the EBS back into service until it has been properly serviced by an authorized Service Technician. -
Page 12: Repairs And Service
For operational units, service will be once each year. For units in training, service will be once each year or after every 200 uses, whichever comes first. Your complete EBS assembly must be inspected and serviced by an authorized technician using ONLY Survitec supplied parts and service kits.
