ARBOR SCIENTIFIC 93-3501 Assembly Instructions

Contents

Arbor Scientific Gyroscope Wheel
•
Handle with axle and bearing installed
•
Handle with threaded hole
•
4 masses with screws and washers
•
Instructions

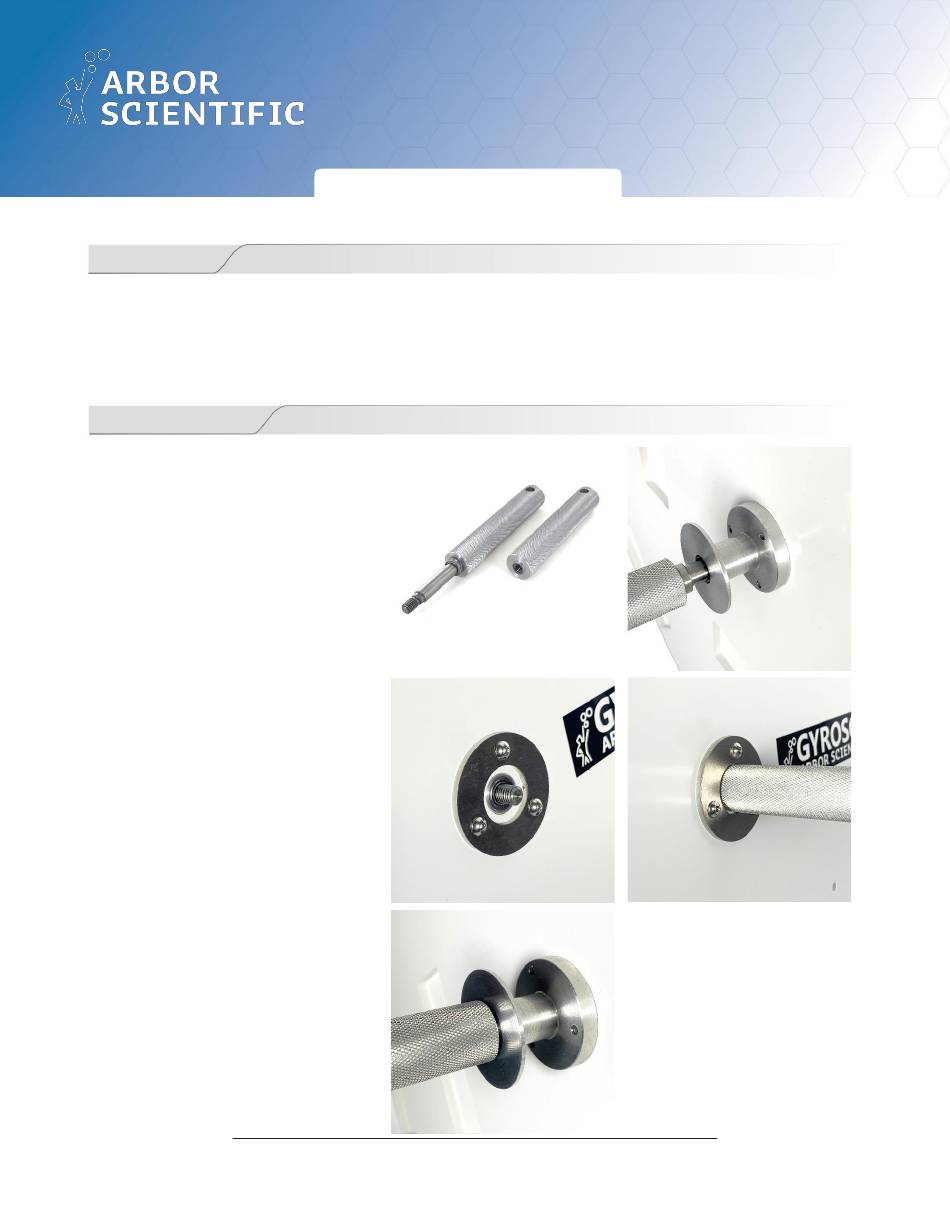

Installing the Handles and Axle:

The Gyroscope Wheel from Arbor
Scientific is provided with the center
pulley installed into the wheel and the
axle with pressed-on bearing already
inserted into one of the handles
(Figure 1).
Insert the axle with the bearing
through the bore of the pulley (Figure
2). Make sure the bearing begins to
seat in the recess in the pulley. This is a
tight fit and may not be able to press
in.
The threads on the axle should now be
protruding from the other side of the
wheel (Figure 3). Thread the other
handle onto the protruding threads of
the axle. Turn both handles at the same
time to tighten them against the wheel
until they stop. This action also pulls
the bearing into the recess on the
pulley (Figure5).
