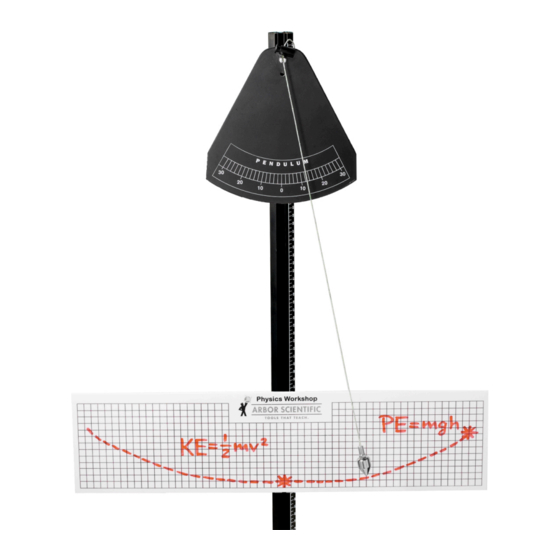

Pendulum Lab
P4-1700
KIT CONTENTS:
Pendulum Face
String, approx 1 meter
Cylindrical Bob (aluminum)
Cylindrical Bob (steel)
Centimeter Grid Board
ALSO UTILIZES:
W orkshop Stand (P4-1901)
Tim er and Photogates (P4-1450)
M eterstick (P1-1070)
Tim er/Stopwatch
(52-3200)
ASSEMBLY:
1. A photogate can be attached by sliding the
small attachment bolt (AD021c) down the
channel in the workshop stand on the same
side as the pendulum is mounted on and
fastening a photogate mount to this bolt with
the nylon wing nut (AD021d).
PO Box 2750
ANN ARBOR, MI 48106 WWW.ARBORSCI.COM 800-367-6695
©2012 ARBOR SCIENTIFIC ALL RIGHTS RESERVED
1 Thumb Bolts
1 Small Attachment Hex Bolt AD021c
1 Nylon Wing Nut AD021d
Pinch Clamp
WWW.ARBORSCI.COM
Page 1 of 2
