FineVu X500 - Dash Cam Manual

SAFETY INSTRUCTIONS

Precautions for Installation

  • Do not use damaged, modified, or unauthorized parts and accessories.
  • Use the device within the rated voltage range.
  • Make sure the power cable is connected to the cigarette lighter socket or a proper terminal in the fuse box.
  • Ensure the power cable plug is inserted to the right power inlet on the device tightly.
  • Place the external GPS about 20cm (8 inch) or more away from the device.
  • Do not install the device at the location where it obstructs the driver's view.

Precautions for use

  • Do not operate the device while driving.
  • burn hazard Avoid placing the device near from flammable and explosive liquids or gases. This may cause explosion or fire.
  • shock hazardburn hazard
    Avoid putting metal, flammable or wet objects into the memory card slot or the connectors on the device. This may cause electric shock or fire.
  • Avoid using the device under extreme conditions such as direct sunlight, high temperature and/or high humidity.
  • shock hazard Do not operate the device with wet hands. It can cause electric shock.
  • Do not leave the device or its accessories within reach of children.
  • burn hazard Do not cover the device with a cloth or a blanket while in use. Continuous heating may cause fire or device failure.

information

  • For user's safety and to avoid property damages, read through this manual and follow the instructions correctly. Finedigital is NOT responsible for any problems and/or damages that may occur from the failure to observe the instructions.

IN THE PACKAGE

In the Package - Included Items

* To improve the performance of the device, the contents of this manual are subject to change without prior notice.

Installing Micro SD Card and External GPS Antenna

Insert the MicroSD card into the slot and push it until locks into the place.
Installing Micro SD Card

Install the External GPS Antenna on the upper left or right corner of the windshield.
Installing External GPS Antenna

information

  • It is strongly recommended that FineVu memory cards are used to minimize memory card error.
  • Do not apply excessive force on the MicroSD card or attempt to insert it in the wrong direction as it may cause damage to the MicroSD card and the card slot.
  • To prevent loss of important data, frequently copy recorded videos from MicroSD card to another storage device such as personal computer for back up.

PRODUCT OVERVIEW

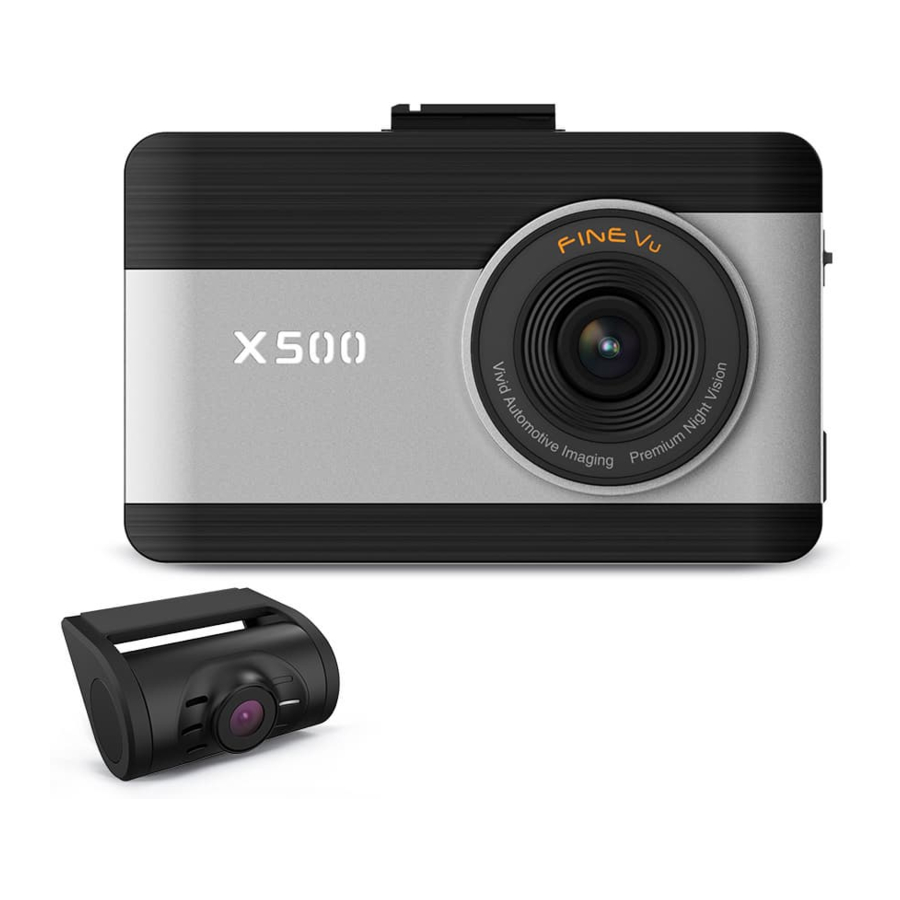

Main unit and front camera

Main unit and front camera - Overview

Rear camera

Rear camera - Overview

INSTALLATION

Front Camera

Front Camera - Installation

Rear Camera

Rear camera - Installation

KEY FEATURES

Dual Full HD resolution
Front & Rear Full HD (1920 x 1080 @30fps) cameras record outstanding video clarity under any circumstance.
3.5" IPS Touch LCD
Get an instant video playback, ADAS warnings and change settings on super clear high resolution (800x400) IPS LCD.
Auto Night Vision
Automatically to tune and enhance the video quality according to the brightness of light in any environment.
Smart Time Lapse
Automatically reduces the recording file size and increases memory efficiency by 50% on average when there is no impact, and saves the files at 30 frames per second when detects any impact.
ADAS PLUS (Advanced Driver Assistance Systems)
The Lane Departure Warning System (LDWS) and Front Vehicle Motion Alert (FVMA) ensure driver safety with warnings of voice and alert on LCD screen.
Wide Viewing Angle
A wide view of diagonal 155° angle minimizes blinds spots to assure recording of all events without fail.
Secret Mode
Protect your important video proof with password, only you can access to FineVu by secret mode.
Format Free Max
The most advanced format free technology of FineVu eliminates the need for periodical manual formatting of micro SD memory card, extending memory card life and improving reliability.
Event Notice
When you get in the car, FineVu notices event history that is detected during parking surveillance mode, making it easy to check the number of impact while parking, and if your car has been safe overnight and what happened.

SCREEN LAYOUT

Live view and Menu screens

Live view and Menu screens

  1. Camera settings
Night Vision (Auto Night Vision) settings.
  1. ADAS
Lane Departure Warning System, Front Vehicle Motion Alert, ADAS speaker, ADAS guide.
  1. Memory settings
Memory partition (Drive/Event/Parking), Memory format.
  1. Recording settings
Driving recording (Normal/Time Lapse), Parking recording (Motion/Time Lapse), Sensitivity (Driving/Parking/Motion), Low voltage value, Cut-off time.
  1. Replay
Playback the recorded video of each driving mode.
  1. System settings
LCD display, LCD brightness, Menu display, security LED, time setting, secret mode setting.
  1. Setting information
Display the setting values that has changed by user.
  1. Live view
Display live view.
  1. Safety screen
Display speed, date, time and voltage information.

information

  • The external GPS (optional accessory) is required to enable the ADAS features.
  • Do not operate the device while driving.
  • When using menu settings, the recording will be disabled.
  • When reset the device settings to factory default settings on "Setting information" menu, if memory setting is changed, entire Micro SD card will be formatted.
  • Front Vehicle Motion Alert will be notified in 3 seconds after the departure of front vehicle.

ADAS Settings

  • Before using ADAS features, settings must be calibrated on [Menu→ADAS→ADAS settings].
  • Align the green line with the horizon, and align the red line with center of the bonnet by pressing the left/right arrows.
    ADAS Settings
  • Then, align the orange line with the front edge of the bonnet with the up/down arrows.
  • Press the live button to start recording.

Memory Settings

  • Sets how storage space on the memory card will be allocated for each recording mode.
    Memory Settings
  1. Memory partition information
  2. Driving
  3. Event
  4. Parking motion
  5. Parking event
  6. Camcorder
  7. Memory format
  8. Memory settings
Item Driving Event Parking Motion Parking Event Camcorder Total
Driving Priority 60 15 15 5 5 100
Event Priority 40 20 25 10 5 100
Parking Priority 35 10 45 5 5 100
Driving Only 80 15 0 0 5 100

information

  • Entire Micro SD card will be formatted when the memory partition settings is changed.
  • It is recommended that you back up data before changing memory partition settings.
  • Memory format type is FAT32, if the format type is different, the device will start memory format automatically.
  • If select "Driving Priority", the device will record on drive mode only, and parking recording will be disabled. When the engine is turned off, the device will be turned off also.

Driving mode

Driving recording Driving recording starts automatically after booting of the device.
A video is recorded in 1-minute segments and stored in "Normal" folder of memory card.
Event (impact) recording When an impact to the vehicle is detected during driving, a video is recorded for 20 seconds (5 seconds before the detection and 15 seconds after the detection), and stored in "Event" folder of memory card.
Emergency recording When you tap the Emergency Recording button, a video will be recorded for 20 seconds (5 seconds before/15 seconds after pressing the button), and stored in "Camcorder" folder of memory card.
Driving time lapse recording Change the smart time lapse settings in [Menu→Recording Settings→Driving Recording]. A video is stored in "Normal" folder of memory card. (Audio recording will be disabled.)
Event recording during driving time lapse mode When an impact is detected during driving time lapse mode, a video is recorded for 20 seconds (5 seconds before the detection and 15 seconds after the detection), and stored in "Event" folder of memory card. The video will be recorded at 30fps.

Parking mode

Switching to Parking Mode When the device is connected to the vehicle via the hardwiring cable (optional), the operating mode is switched to parking mode in 5 seconds after the engine is turned off. (The operating mode is switched to driving mode when the engine is turned on.)
Parking mode
(Impact detected)
When an impact is detected while parking, a video is recorded for 20 seconds (5 seconds before the detection and 15 seconds after the detection), and stored in "Parking" folder of memory card.
Parking mode
(Motion detected)
When a moving objects is detected while parking, a video is recorded for 20 seconds (5 seconds before the detection and 15 seconds after the detection), and stored in "Motion" folder of memory card.
Parking time lapse Change the smart time lapse settings in [Menu→Recording Settings→Parking Settings→Parking Recording]. A video is stored in "Motion" folder of memory card.(Audio recording will be disabled.)
Parking time lapse (Impact detected) When an impact is detected during parking time lapse mode, a video is recorded for 20 seconds (5 seconds before the detection and 15 seconds after the detection), and stored in "Event" folder of memory card. The video will be recorded at 30fps.

information

  • Parking mode operates only when the hardwiring Power Cable (optional) is connected. The hardwiring Power Cable must be professionally installed to the vehicle by a trained mechanic.
  • It is strongly recommended to use FineVu Power Cable only.
  • Depending on the battery charging status of the vehicle, the duration of parking mode may differ. If you want to use parking mode for an extended period, check the battery level to prevent battery discharge.
  • Make sure to connect the hardwiring cable to fuse box appropriately.
  • The wrong connection of hardwiring cable and fuse box may cause the device and/or your car to be damaged.
  • Do not modify or cut the power cable.
Recording Modes Driving (Driving Time Lapse) Driving Event Parking Event Parking Motion (Parking Time Lapse) Emergency My Folder
Folder Name normal event parking motion camcorder my folder

Playing video

  • On live view screen, tap [Menu→Replay]. The recorded videos categorized by the recording mode will be displayed. Select a recording mode, and tap the video you want to play.
    Playing video - Controls
  1. Video category
The video files are categorized by the recording mode - Driving, Event, Parking event, Parking motion, Camcorder, My folder(View folder/Save video).
  1. Video list
Display the video from the latest file.
  1. Video list pages
: Move backward 3 pages : Move backward 1 page
: Move forward 3 pages : Move forward 1 page
  1. Playback screen
Playback the selected video file. (Tap the screen to hide or re-display the function buttons.)
  1. Switch front/ rear view
1ch: Play video of front camera 2ch: Play video of rear camera
  1. Play button
:Play the previous/next file. : Rewinds the current file by 5 seconds : Plays the recorded file/ temporarily pauses playback
  1. Previous menu
Move to the previous menu screen.

information

  • Stop your vehicle in a safe location before operating the device.
  • While you playback the video files, the device will stop recording.
  • Play videos on the playback menu of the device or a computer only. If you play videos by inserting the memory card in devices such as a smartphone or a tablet PC, the video files may be lost.
  • During playback, vehicle license numbers may not be identified due to the relative speed of a vehicle or light conditions.
  • A file name is composed of the recording start date and time, and the recording mode.
  • If the memory card storage gets shortened while recording, the previously recorded videos are deleted storage sufficiency. (To prevent data loss, back up important videos on additional storage devices.)

FineVu PC PLAYER

FineVu player is a software that you can view and manage the recorded videos on your PC. You can download the latest PC viewer software from the FineVu website.

Main screen

After the installation is complete, run the FineVu player.
The following provides brief information about the PC player's screen layout.
FineVu PC PLAYER - Main screen

  1. Main screen displays the current video playback.
  2. Displays the playlist.
  3. Play or control a video.
  4. Displays the GPS information at the time of recording.
    (* This screen will be disabled if there is no GPS information.)
  5. Indicates the G-Sensor value at the time of recording.

System requirements

Minimum Recommended
OS Windows 7 or later Windows 10, 64bit OS
HDD 70MB or more 150MB
CPU Intel Dual Core 3.4GHz or higher (32bit)
Intel Dual Core 2.8GHz or higher (64bit)
Intel Dual Core 3.4GHz
VGA/RAM 256MB or more / 2GB or more 1GB / 4GB
DirectX DirectX 11 or higher DirectX 12
Monitor 1280 x 1024 or higher 1920 x 1080

Viewing recorded video on PC

  1. Remove the Micro SD card from the device, and insert it into Micro SD card reader.
    Connect the Micro SD card reader to the PC.
  2. When connected to the PC, USB drive or new disk drive will be created.
  3. Click the folder and select video file you want to play.
  4. FineVu player or other media players can be used to watch videos recorded with the device.
    (FineVu player is required to check the GPS and G-Sensor information of the recorded video.)

Upgrading Firmware

  1. Download the latest firmware at FineVu website. (www.finevu.com)
  2. Disconnect power to the device and remove the Micro SD card. Insert it into Micro SD card reader and connect the Micro SD card reader to the PC.
  3. When connected to the PC, USB drive or new disk drive will be created.
    (It's recommended to format the Micro SD card before you upgrade the firmware.)
  4. Unzip the downloaded file, and copy the firmware upgrade file to the root folder of the memory card.
  5. While the power is disconnected from the device, insert the memory card into the memory card slot on the device. Connect the power to the device and start the engine to turn on the device.
  6. The firmware upgrade starts automatically.
  7. The system will restart once the firmware update is completed.

Tips for using Micro SD card

  1. A firmware upgrade is provided to enhance the device's features, operating or to increase stability. For optimal operation of the device, ensure that you keep the firmware up to date.
  2. To prevent loss of important data, frequently copy recorded videos from Micro SD card.
  3. The Micro SD card should be tested for errors on a regular basis and as the memory card is a consumable item, it should be replaced periodically.
  • The warranty period of memory card is 6 months.
  • The memory card should be formatted every 2 weeks to maximize the lifetime of the memory card

information

  • Do not disconnect the power or remove the memory card from the device during the firmware upgrade. Doing so may cause serious damage to the device, or to the data stored in the memory card.
  • The firmware must be upgraded on Micro SD card.
  • The firmware files will be deleted automatically after upgrade is completed.
  • It's recommended that backup important video files and format the Micro SD card before starting firmware upgrade.
  • If the Micro SD card is 64GB or more, change the file system to FAT32 before formatting the memory card.

SPECIFICATIONS

ITEM SPEC. REMARKS
Model Name FineVu X500
Dimension /
Weight
Front: 98.5 x 60.9 x 18.8mm / 96g
Rear: 53.8 x 44 x 28mm / 27g
Excluding cables and cradle.
Memory
Capacity
Micro SD Card (16G/32G/64G) MLC, Class10 or above recommended
/SDXC compatible
Recording
Mode
Driving recording mode 1 min. interval recording
Event (impact) recording mode 20 sec. recording
(5 sec. before / 15 sec. after impact)
Emergency recording mode 20 sec. recording
(5 sec. before / 15 sec. after impact)
Parking (impact & motion detection) recording 20 sec. recording
(5 sec. before / 15 sec. after impact)
Driving time lapse recording 30fps recording after impact detected
Parking time lapse recording 30fps recording after impact detected
Lens Full HD wide angle lens
Image Sensor Front/Rear: 2M pixels CMOS Image Sensor
Viewing Angle Front: 155° / Rear: 140°
Resolution Front: Full HD 1920x1080@30fps
Rear: Full HD 1920x1080@30fps
Encoding Video: H.264 / Audio: PCM AVI (2Video-1Audio)
Display 3.5" IPS LCD (800x480) with touch
Mic. Built-in 8 ohm
Speaker Built-in
Acceleration Sensor 3-Axis Acceleration G-Sensor
Input Voltage DC 12V - 24V
Backup Battery Built-in Super Capacitor
Power Consumption 3.5W Based on 2CH, LCD off, GPS off
Temperature Operation Temperature: -10℃ ~ 60℃(14℉~140℉)
Storage Temperature: -20℃ ~ 70℃(-4℉~158℉)
Interface Power Port(3.5 Ø), Rear Camera Port (2.5 Ø), External GPS Port(2.5 Ø)
Certificate KC (R-R-FDK-FineR018), FCC (PWS-FINEVUX500)

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download FineVu X500 - Dash Cam Manual

Advertisement

Need help?

Need help?

Do you have a question about the X500 and is the answer not in the manual?

Questions and answers

Table of Contents
