Product Introduction
MARINE enables your PS4 controllers to be used on PS4,PS3,Switch, Android, Mac/iOS and PC. MARINE also supports Turbo and Remap function with 4 additional paddles, which can be completely customized. And it is suggested that a fully charged 18650 lithium battery be installed before playing.
What's in the box

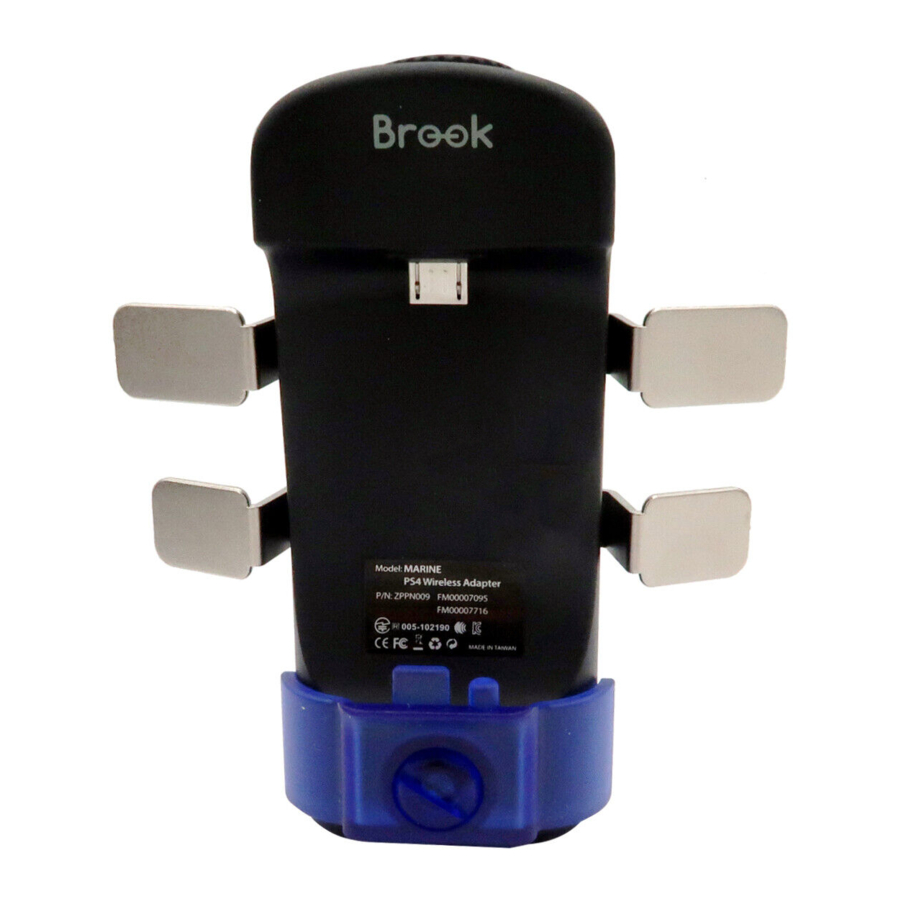

Device parts
Switch mode
Status LED
| Knob | LED |
 | Blue |
 | Cyan |
 | Orange |
 | Green |
 | White |
 | Yellow |
 | -- |
 | Purple |
More about LED signal
No light:
MARINE is in sleep mode.
Red Light:
Low battery, you can replace the battery or plug for charging. Charging and playing simultaneously is supported.
Orange Flashing Light:
When Knob is charging in Power Off mode, LED displays orange flashing light. When the power if full, it displays green light.
Note:
- The Remap Setting in each Mode will be memorized. For example: you make a Remap Setting in PS4 mode, then switch to NS Mode. The next time you switch back to PS4 mode, the Remap Setting in PS4 mode still remains.
- The default currently of Backup Mode has no function, it is reserved for possible future product upgrades.
How to install MARINE
- Use the attached Lock Tool to loosen the cover of the lower edge of MARINE
![]()
- Attach the lock cover to PS4 Controller.
![Attach the lock cover to PS4 Controller.]( "Brook - Marine - Attach the lock cover to PS4 Controller.")
- Place MARINE carefully into PS4 controller.
![Place MARINE carefully into PS4 controller.]( "Brook - Marine - Place MARINE carefully into PS4 controller.")
- Sit the lock cover to MARINE, don't forget to relock it.
![Sit the lock cover to MARINE, don't forget to relock it.]( "Brook - Marine - Sit the lock cover to MARINE, don't forget to relock it.")
Replace the battery and paddles
- Press and hold the battery latches on both sides of the MARINE to open the battery cover.
- Place the fully charged 18650 lithium battery. Be sure to confirm that the battery is in the correct direction.
- Insert or remove the paddles according to your requirement.
- Relock the battery cover.
Note:
| This product has 2 versions, "Battery version" and "Non Battery version". When you choose to purchase MARINE with "Battery version", it includes a 3350mAh 18650 Lithium Battery, which takes 4 hours to be fully charged and 8 hours continuous use. However, if you purchase the "Non Battery version", please remember to purchase a 18650 Lithium Battery. |
Firmware Upgrade
BROOK always provides the complete user manual, product information, demonstration film and latest firmware version. Please visit the official website to confirm:
Firmware update
About MARINE
Product information and demonstration film information information:
VideosBrook MARINE PlayStation 4 Adapter In-Depth Review Video
How to connect PS4 with MARINE? Video
How to connect PS3 and PS4 controller by MARINE? Video
How to connect NS and PS4 controller by MARINE? Video
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
