Safety information
Risk of fatal injury from electric shock!
- Installation must only by performed by an electrical installation technician or a trained electrician, taking country-specific regulations into account.
- Switch off the power supply prior to assembly/disassembly.
Detailed operating instructions and information on disposal can be found at: https://www.esylux.com/y/BA013096.
Dimensions
Intended use

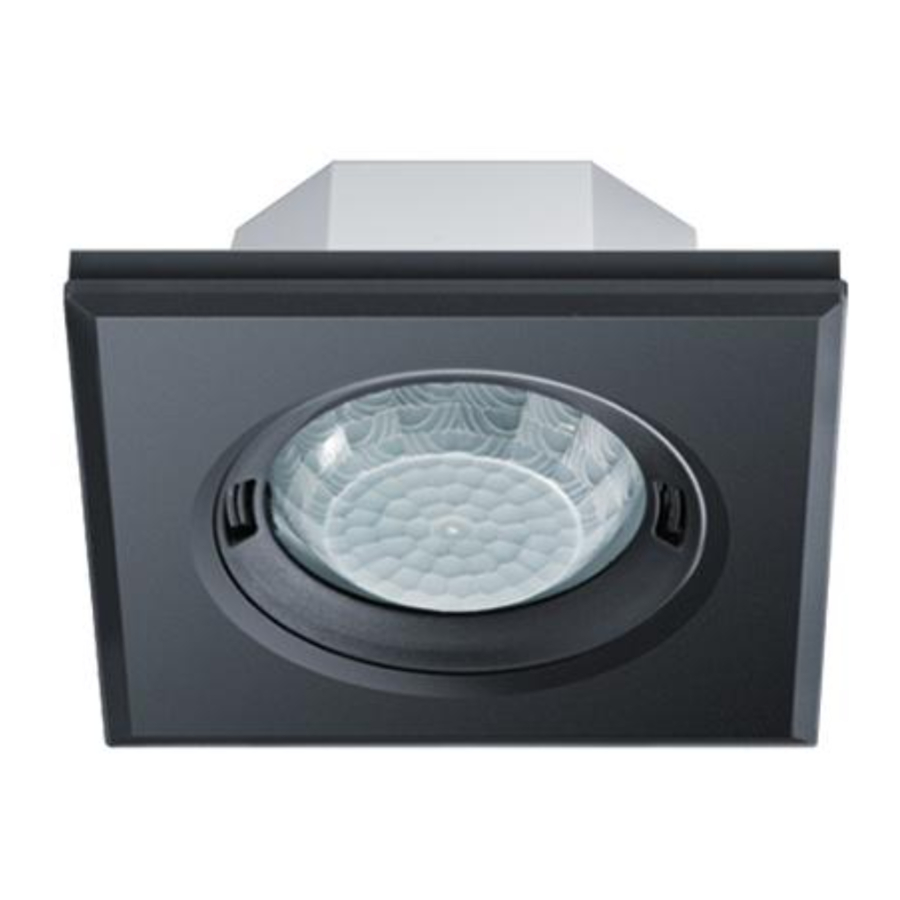

The ceiling-mounted presence detector is designed for indoor use, for example in meeting rooms, offices or classrooms that benefit from natural light.
- 360° field of detection, 8-m range at an installation height of 2.5 m (1.1)
![Intended use - Step 1]( "ESYLUX - PD-FLAT 360i/8 KNX Series - Intended use - Step 1")
- Automatic control of lighting channels via the KNX bus subject to the preset target brightness value and light duration.
Installation types
Flush-mounted installation (1.2), ceiling-mounted installation (1.3)
Connection
The device is connected according to the figure (2.1).
+ KNX bus voltage
- KNX bus voltage
Initial operation
Connect the bus supply. A warm-up phase of approx. 10 seconds is initiated. The red and green LEDs will slowly flash alternately (f = 1 Hz).
All parameter setting for the presence detector is carried out via the ETS (Engineering Tool Software).
By touching the lens with the magnet provided, you activate programming mode for the physical address. If programming mode is activated, the blue LED lights up.
Technical information
| Operating voltage | 29 - 31 V DC (KNX) |
| Field of detection | 360° |
| Range | approx. 8 m |
| Approx. light value. | 5 - 2000 Lux/daytime operation |
| Settings | ETS |
| Switch-off delay time | 0 sec., 30 sec. - 12 hours |
| Light measurement | mixed light |
| Switch input | via KNX/EIB switch |
| Protection type/class | IP 20 / III |
| Operating temperature range | 0°C... +50°C |
| Housing material | UV-stabilised polycarbonate |
Technical and design features may be subject to change.
The ESYLUX manufacturer's warranty can be found online at www.esylux.com
ESYLUX GmbH • An der Strusbek 40
22926 Ahrensburg / Germany
info@esylux.com • www.esylux.com
