Haylou GS LS09A - Smartwatch Manual

Table of Contents

Contents

1 Appearance and package list
2 Charging
3 Download and match
4 Wear
5 Strap assembly and disassembly
6 More functions
7 Basic parameters
8 Documents / Resources
- 8.1 References
- 8.2 Download manual

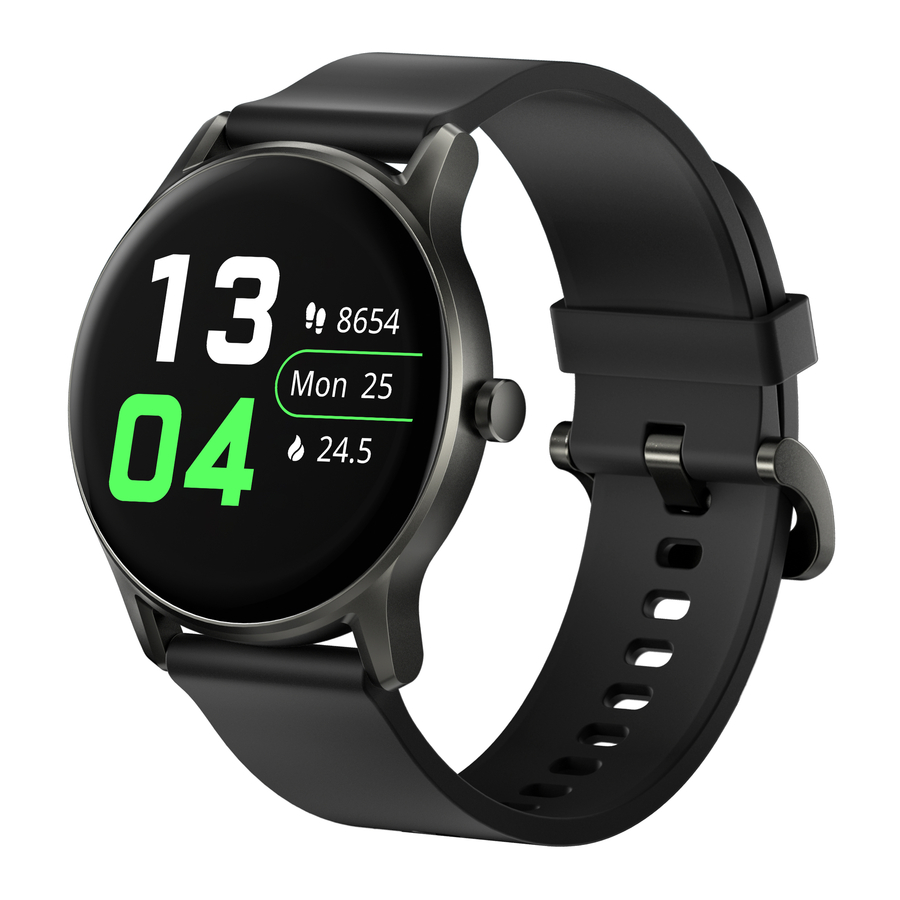

Appearance and package list

Appearance and package list - Part 1
Long press to turn on when off, long press to turn off when on. Short press to enter application list, short press in the app to enter the dial page.

Appearance and package list - Part 2

information You can wear it with no worry as the watch is made of healthy materials that have undergone strict allergy testing. Due to individual skin difference, if you feel skin discomfort when wearing, please stop wearing and consult a doctor.

Package list: Watch x 1, Charging cable x 1, User manual x 1

Charging

Align and fit the charging contacts on back of the watch to the metal contacts of the charging head, wait for the watch screen to display charging power indicator.

Precautions:

Please use the charging cable in the package, and dry the charging.
Use qualified adapter with output voltage of 5V and output current.
If the watch cannot power on after being left for a long time, when contacts before charging.of 0.5A or above.used again, it need to be pre-charged for about 1 minute to display charging icon.

Download and match

Haylou Fun App ( hereinafter referred to as App ) is a must-have app for using the watch. You can manage your watch and experience more watch functions through the App.

Long press the upper button of the watch to turn it on.
Scan the QR code on the watch screen with your mobile phone to download the App.
You can also scan the QR code below or download and install the App in the app store, iPhone users can also search, download and install the App on the App Store.

Haylou Fun

Open the App, click the device page, and complete the pairing connection according to the interface prompts. Please confirm the Bluetooth name displayed on the phone and the watch are the same when pairing.
You can start using the watch after pairing successfully.

Wear

For daily wear, wear the watch about one finger distance from the wrist bone, and adjust the tightness of the strap to a comfortable position.
We recommend to tighten the watch strap during exercise and loosen it appropriately after exercise.

Note: Wearing too loosely may affect data collection by the heart rate sensor.

Strap assembly and disassembly

If you need to assemble/disassemble the strap, please refer to the diagram.
Strap assembly and disassembly

Note: ensure that the assembly is successful. After assembling the strap, please pull the strap appropriately to

More functions

Please scan the QR code or open Use Help in the watch details page in Haylou Fun App on your phone.

Use Help

Basic parameters

Product name: Haylou GS
Product model: Haylou-LS09A
Main body size: 50.5 x 43.4 x 12mm
Watch weight (including strap): 46g
Resolution: 390 x 390
Bluetooth connection: Bluetooth V5.0
Battery capacity: 230mAh
Input parameter: 5V 500mA
Battery life: 12 days (heart rate on all day)
Dustproof and waterproof grade: 5ATM
Working temperature: 0℃~40℃
Data sync platform: Haylou Fun
Equipment requirements: Android 6.0 and above, iOS11 and above
