Shanren MILES - GPS Bike Computer Manual

Features

• Power Estimation
• Power Data
• GPS Tracking
• Speed
• Cadence
• Heart Rate
• Elevation
• Slope
• Distance
• Cycling Time
• Laps
• Temperature
• Clock
• Bluetooth / ANT+
• Taillight Control & Sync
• Custom Display
• USB/BLE Transfer
• Firmware Update
• Data Analysis
• Strava Sync
• Trip Storage
• Power Save Mode
• Battery Indicator
• Battery Level
• Bicycle Type
• LCD Backlight
• Full Color LED Indicator
• Track Data Replay

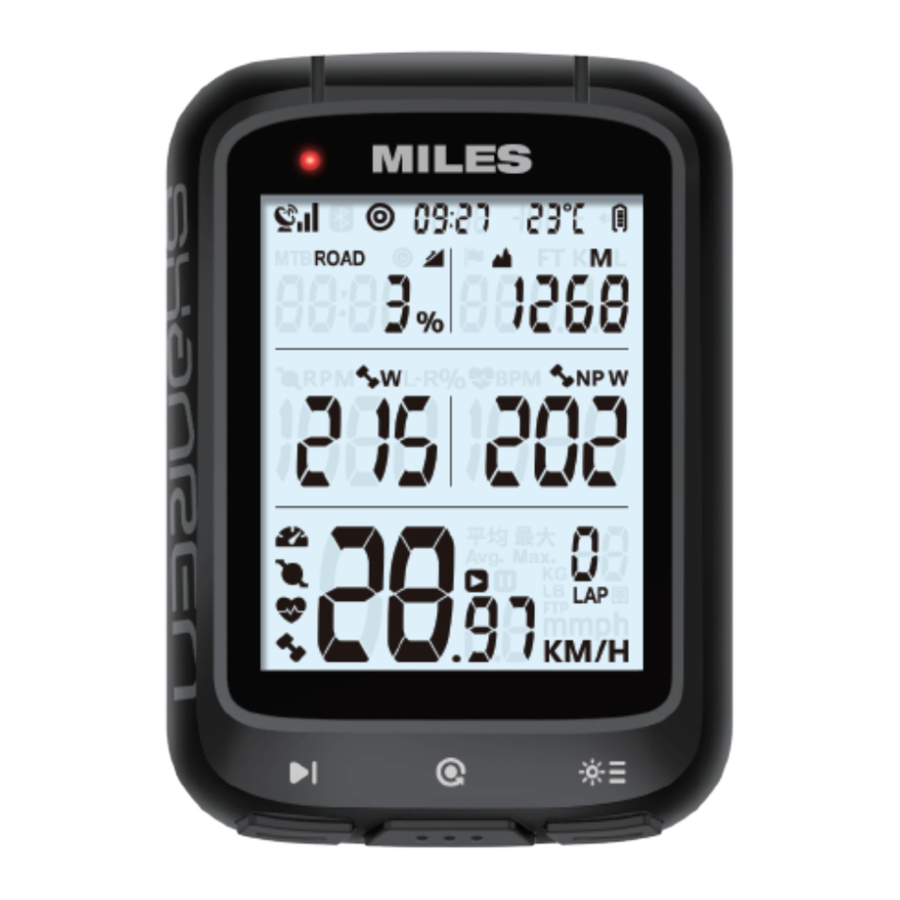

LCD Display

		GPS
		Bluetooth
		Taillight
		Battery Level
		Mountain Bike
		Road Bike
		Riding Time
		Slope
		Distance
		Elevation
		Power
		NP Power
		Cadence
		Heart Rate
		L-R Balance
		Speed Sensor
		Cadence Sensor
		Heart Rate Sensor
		Power Meter
		Laps
		Start Track
		Pause
		Clock
		Temperature

Power On / Off

Press and hold the button for over 2 seconds to turn on/off the Miles bike computer.

Start / Stop Activity Recording

Press and hold the button for over 2 seconds to start/stop activity recording.

Speed>0 Speed=0

*Before starting activity recording, place Miles in an open area so that it can complete GPS positioning.
*Miles will automatically calibrate time and altitude after GPS positioning.
*Activity recording will stop automatically when your speed is at 0.

Power Meter Metrics

Miles is compatible with power meters that display power and receive data via ANT+. When a power meter is paired with Miles, you will see the power metrics on the power meter displays.

Power Estimation

Without a power meter, Miles will estimate power with a dedicated algorithm. There are several key factors that affect the accuracy of power estimation, so it is highly recommended to pair Miles with a cadence sensor and fill in all the relevant information in the app.

Works with Smart Tail Light Raz Pro

With Miles, you get to easily control your Raz Pro tail light right from the handlebar. Pair Raz Pro with Miles in just a few quick steps.

Pair with Raz Pro

Press and hold the and button at the same time for over 2 seconds to enter pairing mode.

1. Press button to switch to a different sensor. Select "06".

2. Press the button to start pairing.


Turn Tail Light On/Off

Press and hold the button for over 2 seconds to turn on/off the tail light.

Miles + Raz Pro Sync LED Light

The LED indicator on Miles lights up in perfect sync with Raz Pro: in the same color and lighting mode. The LED will signal when you break.

Activity Records Download and Display

Via USB Port

Connect the Miles bike computer to PC via a USB data cable, and the screen of Miles will display the word 'USB'. A read-only U disk will appear on PC. We can copy the fit file directly from the U disk, open it with third-party software or upload it to a third-party platform such as Strava.

Via Shanren Sport App

Connects Miles bike computer with Shanren Sport App, and downloads the fit files from Miles bike computer to the App and display them.

Download Tracks from Miles Main Unit

Upload Tracks onto Server

Data Analysis/ Syncs with Strava

Customize Display

Miles offers limited customize screen, you could change some of data in LCD display via shanren Sport App.

Choose What to See On the Display

Press the button to switch between different data types.

Press the button to switch between current, average and max values.

Lap Count

Press the button to start counting laps. Once activity recording is done, one lap will be added automatically.

Turn On/Off Backlight

Press the and buttons at the same time to turn on/off the backlight.

Supported Sensors

Sensor Pairing

1. Press and hold the and buttons for over 2 seconds to enter pairing mode.

2. Press the button to switch between sensor types.

3. Press the button to start pairing.

4. Sensor paired successfully.


Note:

1. If sensor pairing fails, original pairing data will be erased.
2. Press the button to stop the pairing process.

Sensor pairing selection		ANT+	BLE
	01 Speed Sensor
	02 Cadence Sensor
	03 Speed & Cadence Sensor
	04 Heart Rate Sensor
	05 Power Meter
	06 Raz Pro Smart Tail Light

ANT+ sensor and BLE sensor

When a sensor is paired successfully, you will see an indicator at the top of the screen labeling this sensor as ANT + or BLE.

Parameter Settings

You can set the parameters for Miles via the Shanren Sport App. If Miles is not paired with the app, you can also set the parameters directly on the bike computer.

How to start Parameter Setting

1. Press and hold the and buttons at the same time for over 2 seconds to enter pairing mode.
2. Press the button to go through sensor pairing steps until you see CONFIG displayed on the screen.

Wheel Circumference Setting

1. Press the button to make changes.

2. Press the button to confirm/jump to the next setting.


Speed / Distance Unit Setting

1. Press the button to switch between units.

2. Press the button to confirm and jump to the next setting.


Weight Setting

1. Press the button to make changes.

2. Press the button to confirm/jump to the next setting.


Temperature Unit Setting

1. Press the button to switch between ^oC and ^oF.

2. Press the button to confirm and jump to the next setting.


Bike Type Setting

1. Press the button to switch between ROAD/MTB.

2. Press the button to confirm/jump to the next setting.


GPS On/Off Setting

1. Press the button to turn GPS on/off.

2. Press the button to confirm and jump to the next setting.


Buzzer Setting

1. Press the button to switch the buzzer on/off.

2. Press the button to confirm/jump to the next setting.


FTP Setting

1. Press the button to make changes.

2. Press the button to confirm/jump to the next setting.


Time Zone Setting

1. Press the button to change a time zone.

2. Press the button to confirm/jump to the next setting.


Clock Setting

1. Press the button to make changes.

2. Press the button to change hours, minutes/exit.


Find your wheel size

How to Install Miles

Specification

What's in the Box
