- Page 1 USER MANUAL Raptor V1.0 2.4G Digital Wireless System...
- Page 2 Thank you for choosing Shanren products We focus on developing intelligent professional cycling equipment This manual includes instructions for the installation and use of the Shanren intelligent bicycle accessories as well as the warranty information. Please read this carefully and save it for future reference.
-
Page 3: Table Of Contents
Contents ·Safety and general guidelines ·Accessories List ·Installation ·Screen illustrations ·Initialization/Reset ·How to use ·Specifications ·Warranty Card... - Page 4 General guidelines and warning ·Please read the safety instructions carefully and keep it for future reference. ·Be aware of all warnings and instruction signs marked on the products. ·In order to protect your eyes, do not look directly into any light. ·Keep out of the reach of children.
-
Page 5: Accessories List
Accessories list Bracket Rubber Ring Sensor Rubber Ring Bracket Magnet Speed Sensor Main Unit USB Wire 1. Main Unit(Raptor) 2. Bracket 3. USB Wire 4. Speed Sensor 5. Magnet 6. Sensor Rubber Ring 7. Bracket Rubber Ring... -
Page 6: Installation
Installation 1.Position the bracket to the handlebar on either side of the stem 2.Fit the bracket on handlebar with rubber ring 3.Aim the main unit toward the base 4.Slide the main unit into the Click! bracket until it snaps up... - Page 7 5.Mount the wheel sensor on the fork blade 6.Remove the magnet and install on the spoke, facing the 'sensor' mark. 7.Adjust the magnet until it is 3-5mm from the sensor, then tighten it.
-
Page 8: Screen Illustrations

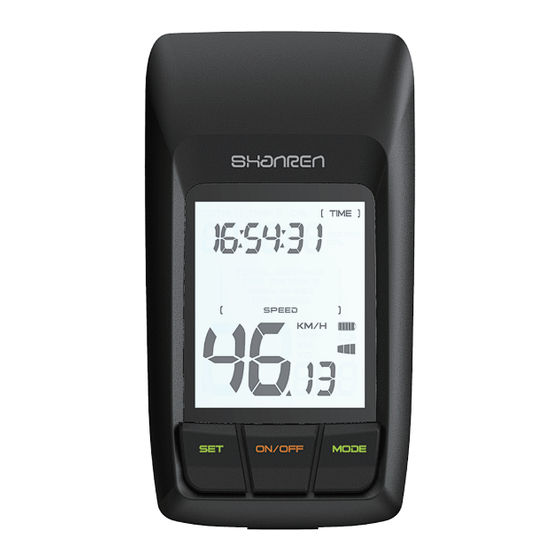

Screen illustrations Time and calorie symbols Time and calorie display Hour K calorie Speed and distance symbols Speed and distance unit Battery power indicator Charging indicator Bicycle light work mode indicator Speed and distance display... -
Page 9: Initialization/Reset
Initialization/Reset Press and hold the “MODE” and “SET” buttons for more than 2 seconds to enter the initial setting ETRTO Tire size C(mm) ETRTO Tire size C(mm) （1）Set wheel circumference: 47-305 16x1.90 1272 32-622 28x1.25, 700x32C 2170 Press SET to preset values.There are 4 47-406 20x1.75 1580 35-622 28x1.35, 700x35C... -
Page 10: How To Use
How to use Press and hold the ON/OFF button for more than 3 second to start. The screen flashes the following data when main unit is in motion: （1） [SPEED] Current speed is updated on every second （2） Five stages battery indicator. （3）... -
Page 11: Charging Status
Bike light work mode / battery / charging status Battery status Battery capacity≥90% 90%> Battery capacity≥70% Charging status 70%> Battery capacity≥50% Main unit can be charged by 5V 1A power adapter or power bank. 50%> Battery capacity≥30% 30%> Battery capacity≥10% Bike light work mode High Battery capacity <10%... - Page 12 Press and hold SET & MODE operation summary (1)Press and hold SET & MODE in 2 seconds, turn on/off backlight. Press and hold SET & MODE in 2 seconds LCD screen display ‘ON’ LCD screen display ‘OFF’ and backlight turns on constantly and backlight turns off Press and hold SET &...
- Page 13 Main unit charging 1.Open micro USB rubber pad. 2.Connect main unit to 5V/1A power adapter or power bank with USB wire. Sensor battery replacement 1.Open the battery case cover 2.Replace a new lithium 3.Tighten the battery case cover anticlockwise. battery(CR2032) with (+) side facing clockwise.
-
Page 14: Specifications
Specifications ·Model Number: SR-BLC10 ·Light source: Cree white LED*2 ·Light output: 300lm ·Rechargeable Li-ion Battery: 2600mAh ·Work mode: High - Low - Off ·Bike light running time: 3 / 6 Hours ·Recharge time: about 4 Hours ·Current/Average/Maximum speed:0.00~99.99 km/h (0.00-62.13m/h) ·Trip/Total distance: 0.00~99999 km (0.00-62139m) -
Page 15: Warranty Card
Service must be performed by an authorized Shanren dealer or an authorized Shanren retailer. To return the product, enclose its warranty card together with details about its dysfunction.Please type your name and address... - Page 16 SHANREN, is an intelligent cycling accessory & outdoor sports brand, full of creative passion and vitality in approach. We have a diverse team, embracing scores of different cultures and viewpoints. We have responsible attitude when it comes to R&D and manufacturing. Building the best...
