Hamaton H47 - TPMS Diagnostic & Programming Tool Quick Start Guide

KIT CONTENTS

1. H47 Tool
2. Universal Charger
3. USB-B Cable
4. OBDII Cable

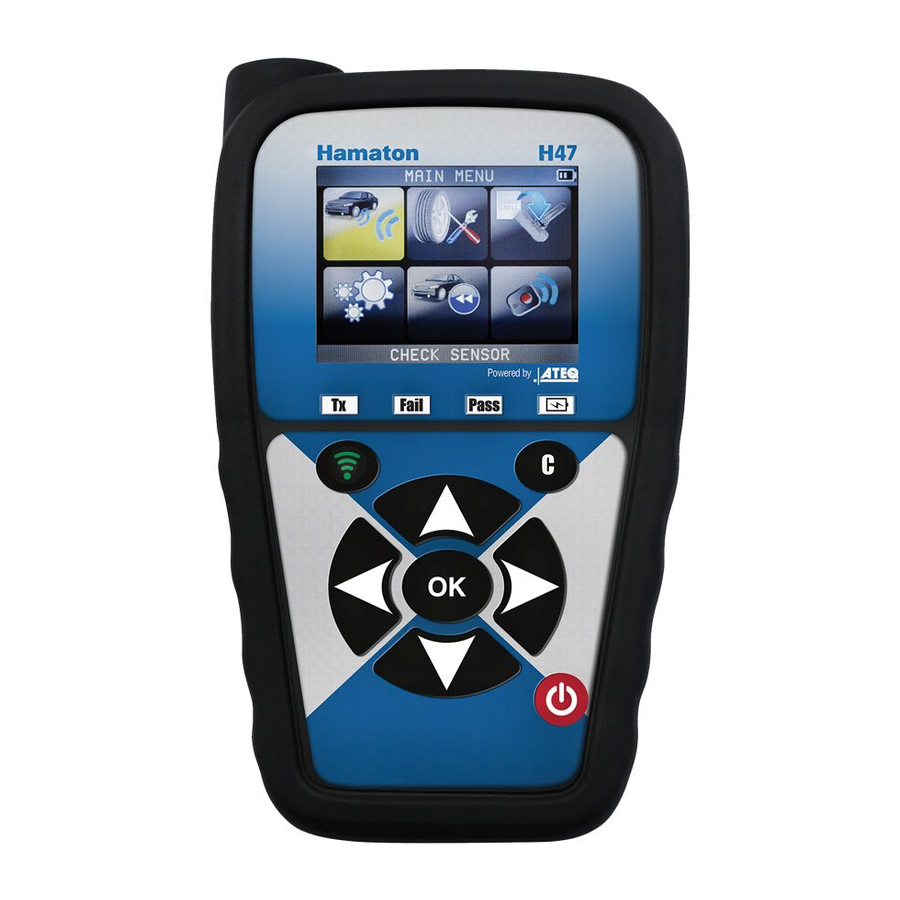

TOOL CONTROLS

1. Antenna
2. Display
3. Display Lights
4. Cancel Button
5. Trigger Button
6. Directional Buttons
7. OK/Enter Button
8. Power Button
9. OBDII Port
10. USB/Charging Port

STEP-BY-STEP GUIDE

1. CHECK SENSOR

   View sensor information for up to 7 tyres, including tyre pressure, tyre temperature, ID, frequency and battery life.
2. SERVICE TPMS

   View and perform manual and OBDII relearn procedures for select vehicles. View OE part numbers for replacement TPMS sensors.
3. PROGRAM SENSOR

   Program Hamaton sensors by creating, cloning, manually entering or retrieving ID's from the ECU.
4. SETTINGS

   View and change tool settings, including the region, language, pressure/temperature units, ID format, sound and power.
5. RECENT SENSOR DATA

   View the most recent vehicle and sensor information.
6. RKE TEST

   Test vehicle key fobs for battery life, signal strength and frequency.

ACTIVATING SENSORS

To activate a sensor, place the tool's antenna adjacent the tyre's sidewall, near the valve.

CONNECTING OBDII

1. Plug the OBDII cable into the bottom of the tool with the power ON.
2. Plug the opposite end into the vehicle's OBDII port with the ignition ON.

UPDATING THE TOOL

1. Download the WebVT software at www.hamaton-tpms.com/webvt.
2. Open the WebVT.exe installation file. Follow the installation instructions.
3. Connect the tool to your PC with the power ON.
4. Open the WebVT software, select "Full Update".
5. The update will take 5-10 minutes.

CONTACT SUPPORT

EUROPE

support.eu@hamaton-tpms.com

www.hamaton-tpms.com

USA

support@hamaton-tpms.com

888-588-7039

www.hamaton-tpms.com
